Tennsco WBD-1 - Manual

DESCRIPTION
The Tennsco stackable drawer unit is a self-contained unit
which may be stacked on top of a bench or mounted
underneath. Drawers come equipped with adjustable
divider, removable parts tray, nylon roller bearings for ease
of operation and aluminum drawer pulls, padlock hasp and
knock out for optional cam lock (order CL-1 separately).
Mounting brackets for attaching to steel top are included.
GENERAL SAFETY INFORMATION
Some parts may have sharp edges. CARE must be taken
when handling various pieces to avoid injury. For safety,
wear a pair of work gloves when assembling or performing
any maintenance on workbench.
SPECIFICATIONS
Overall Dimensions
Housing........................................ 15"w x 18"d x 8 1 ⁄
4
"h
Drawer .................................... 13"w x 16 1 ⁄
2
"d x 6 3 ⁄
8
"h
Tray............................................. 12 1 ⁄
2
"w x 7 1 ⁄
2
"d x 1"h
Basic Construction
Drawer and housing ...............20 to 24 gauge steel
Track and rail...................................18 gauge steel
Mounting brackets ...........................14 gauge steel
Tray ............................................... Black Polymer
Weight.................................................................24 lbs.
Colors .........................Medium Grey, Light Grey, Sand
ASSEMBLY INSTRUCTIONS & PARTS MANUAL #1420908

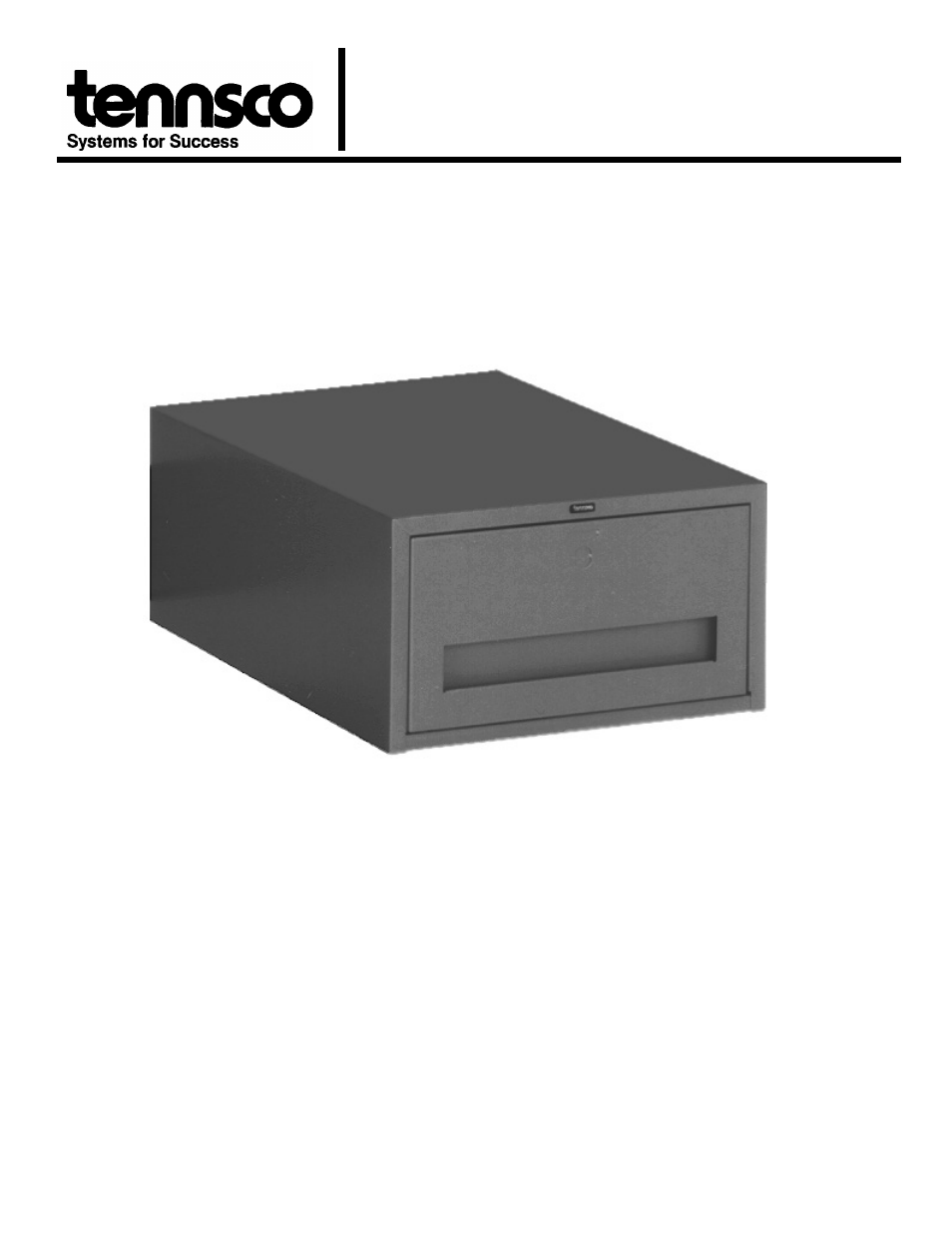

STACKABLE DRAWER UNIT
Model WBD-1
Tennsco Corp., Dickson, TN 37056-1888 * (615) 446-8000
READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO
ASSEMBLE YOUR Tennsco STACKABLE DRAWER UNITS.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE!
