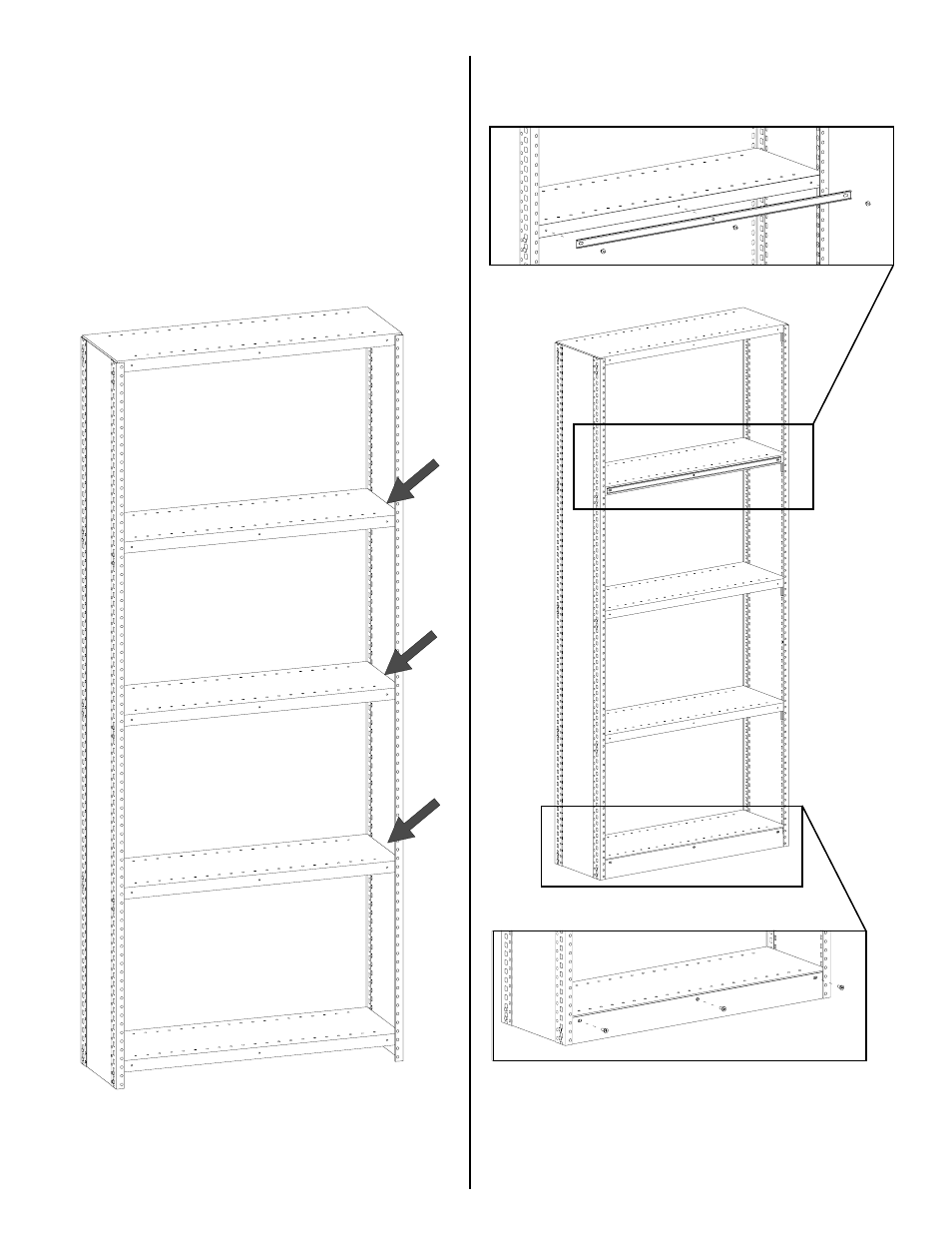

16. OPTIONAL Label Holder: Place the label
holder (Ref. No. 7) on the front edge of the shelf
and secure with three P-38F plastic plugs.
17. OPTIONAL Front Base Strip: Bolt front base
strip (Ref. No. 8) to the outside of the bottom
shelf with the three self-tapping screws provided.
Make sure that the ends of the front base strip
are behind the front flanges of the uprights.
14. Position the remaining shelf clips according to
your desired shelf heights, and place the
shelves over the clips. Keep in mind, while
placing the clips, that the post hole pattern of
two round holes and then one square hole,
repeated every 3", can greatly help in
positioning the clips at the same level.
PLEASE NOTE: Some shelves, depending
upon placement, could possibly require
repositioning of some of the back- and end-
panel bolts in order to insert the shelf.
15. Tighten up all bolts and nuts on the side
panels.
