Tennsco ZLine Shelving with Steel Shelves User Manual
Page 3
4.

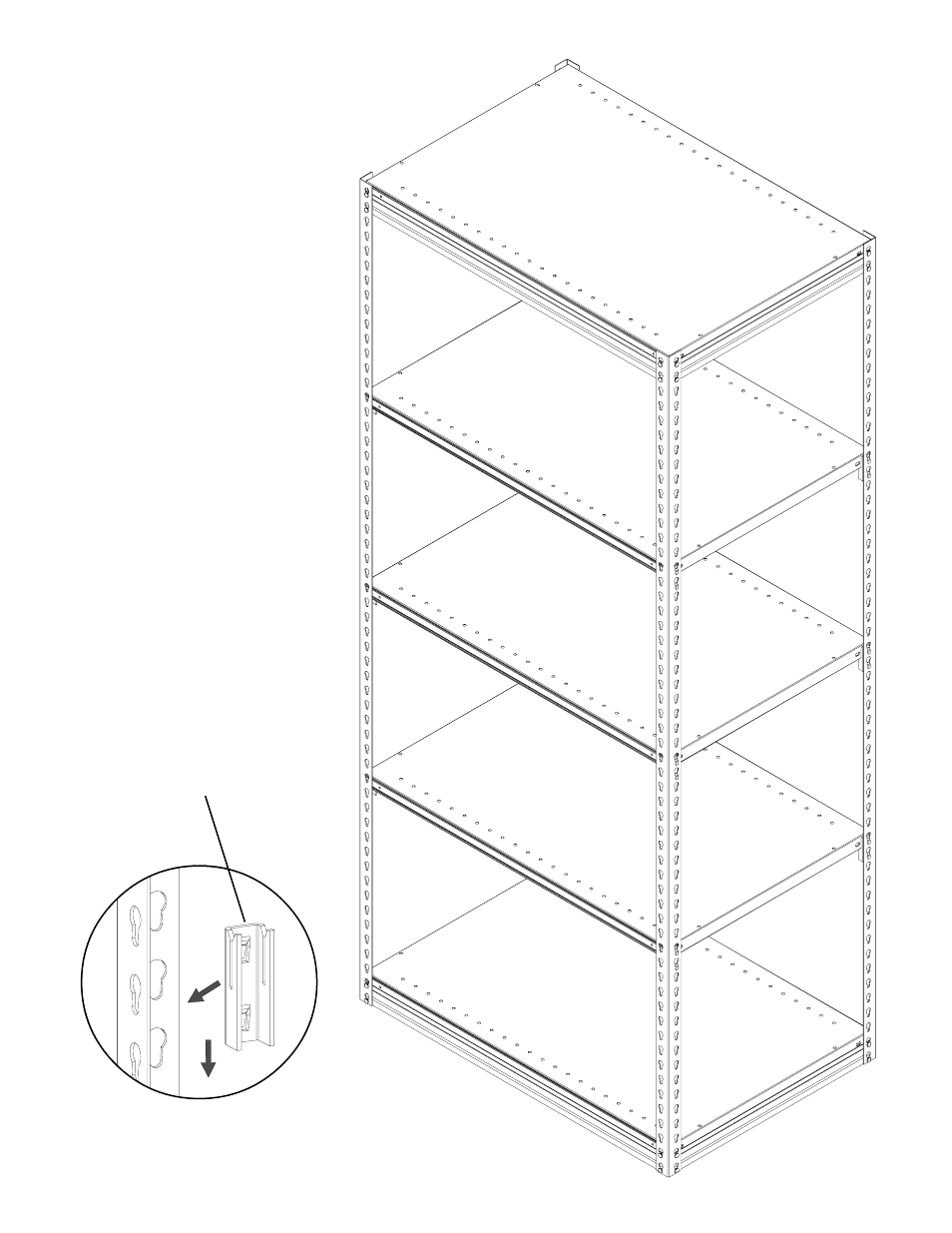

Next attach the ZSC-1 shelf clips
to the EUR post as shown. Be
sure to drive the clips down until
they are seated firmly then install
the shelf on top of the four clips.
Each shelf will use four clips.
5.
If you are attaching a add-on unit
to this unit. Attach the VDRS
supports to the ZTP post and
construct the add-on unit the
same way that you did the
starter unit.
Note: Add-on units will share front
to back supports with starter
unit on the side that the starter
unit is connected.
ZMS-3624
ZMS-3624
ZMS-3624
ZMS-3624
ZMS-3624
ZSC-1
ZM7-3624S-5D UNIT SHOWN
