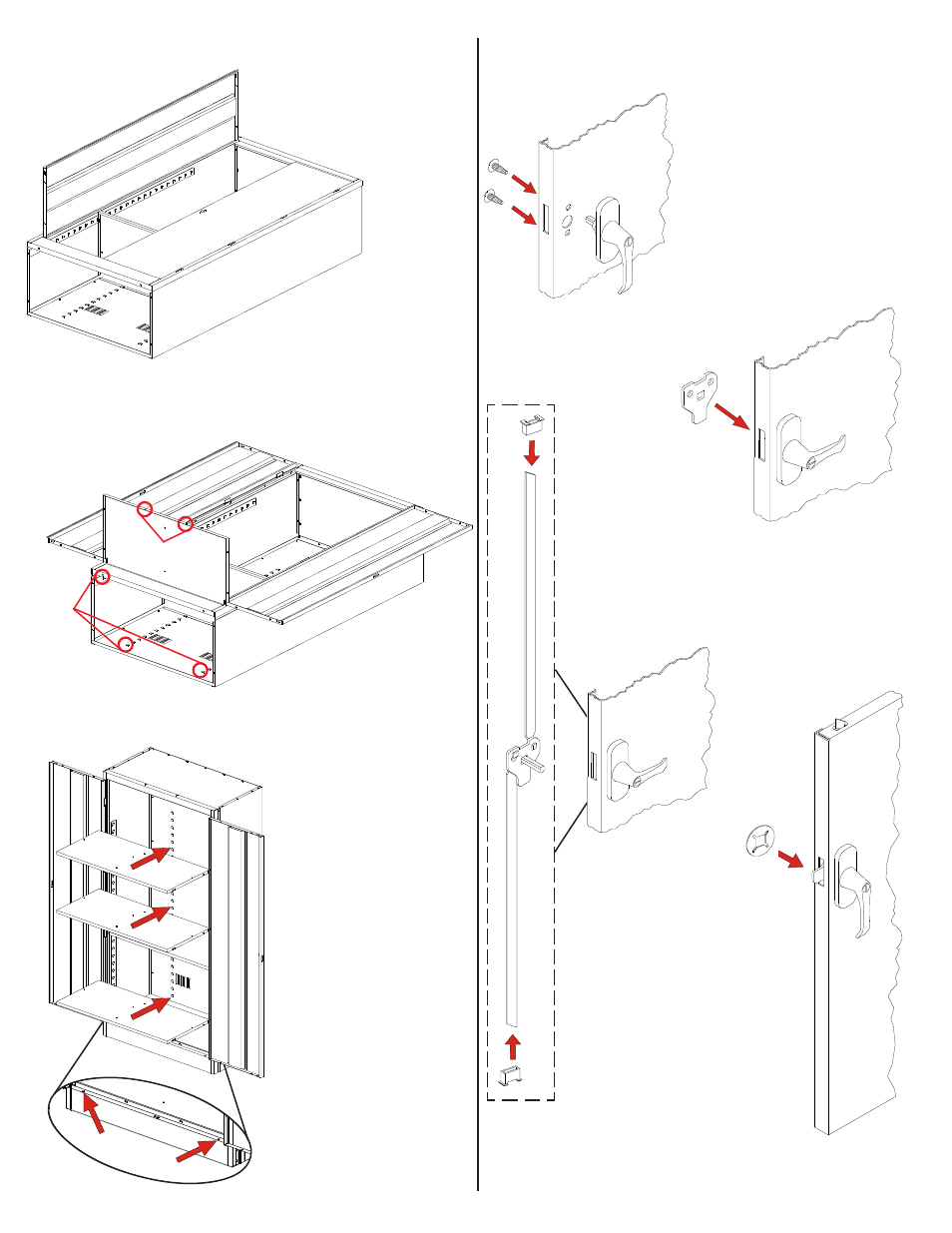

2. Turn the handle to the
open position, and place
the locking cam (Ref. No. 10) over the
square shank of the door handle. The
latch must be facing
downward as shown.
9. Place the bottom (Ref. No. 7) in the lowest notch
of the shelf adjusting strips on the sides and
back. Make sure the flange with two holes faces
the front, and that it is over the flange of
the frame sill. If
necessary,
you may
push out on
the side walls to
enable the bottom to
more easily slide into position. Attach the shelf
securely by bolting the bottom to the frame sill
with two bolts and nuts.
10. Set the unit upright
and insert the
remaining shelves at
your desired levels.
The shelf you inserted
earlier may also be
moved to a different
level if desired.
1. Place the locking handle (Ref. No. 9) on the
right hand door and
fasten with two #8-32 x
1/4 slotted bolts and
lockwashers (Ref. No. 14).
Handle/Locking System Installation Instructions
4. Place the locking
cam retainer (Ref. No. 12)
over the square shank of
the door handle. Tap on
the edges of the cam
retainer with a hammer
until retainer sits firmly
against the locking cam.
3. With the handle
still in the open
position, hook the locking bars (Ref.
No. 8) to the locking cam (see "A" at
left). Then, hold the lock bars in
position while sliding the nylon lock
bar guide inserts (Ref. No. 11) over
the lock bar ends
and through the
door slots (see "B"
at left).
B
B
8. With the door & frame assembly in place, attach it
securely to the unit by opening each door,
one at a time, and securing
the frame assembly using
2 bolts and 20 nuts
(Ref. Nos. 16
and 17). This
will require
attaching
nuts to the
nine pre-welded
bolts along each
side, plus two bolts and
nuts along the top. The bottom
will attach to the frame in Step 9.
11. The cabinet must be
level in order for the
doors to close
properly. Levelers
may be adjusted by
placing a screwdriver
through the hole in
each end of the sill
and adjusting the
leveling screw.
Leveler
Access
Holes
A
5. Attach the "dummy"
handle (Ref. No. 13) to
the left door using two
#8-32 x 1/4 slotted
bolts and lockwashers
(Ref. No. 14).
Two
holes must
be in front.
Insert
shelf
into
bottom
lances.
