www.avenview.com
8
1.7

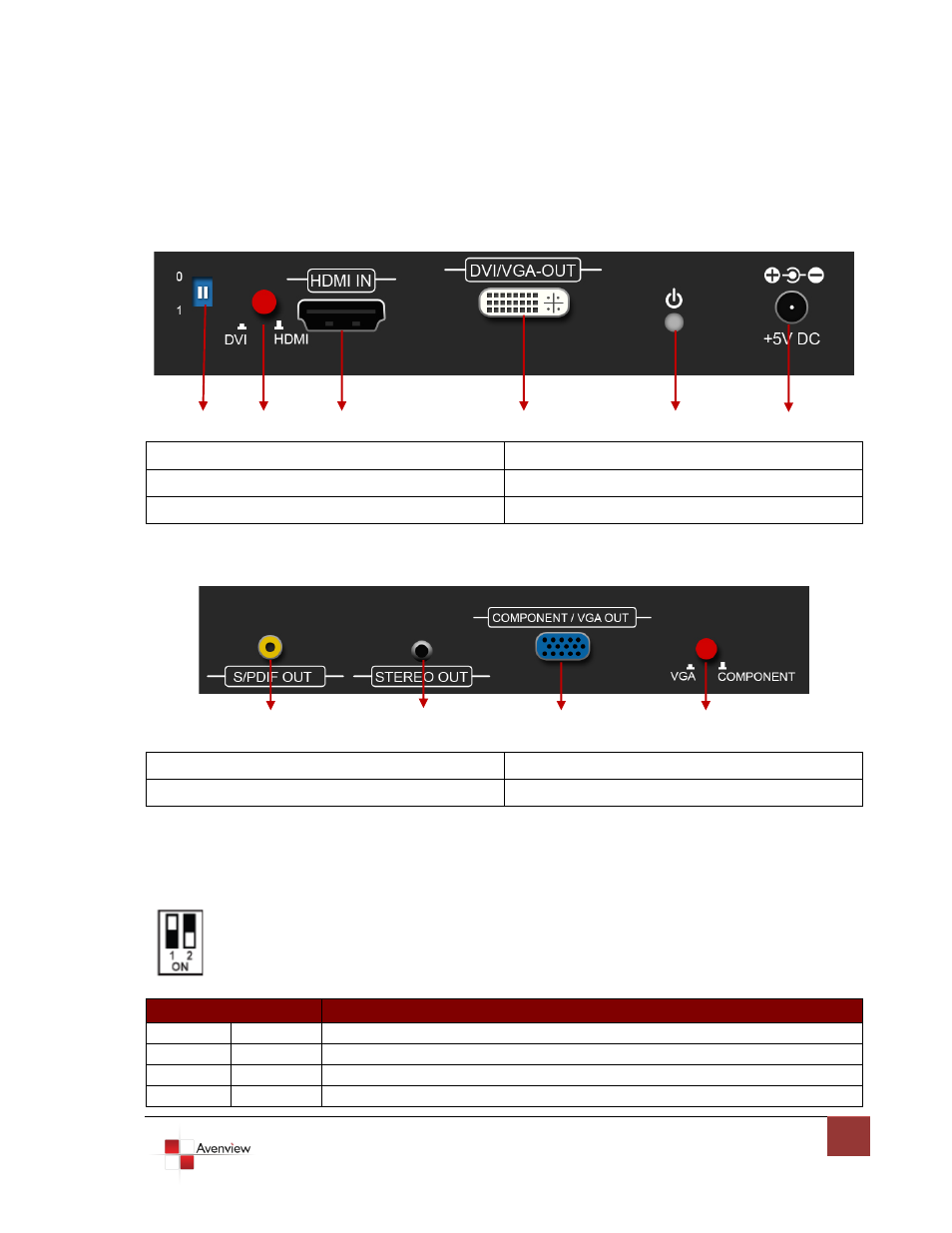

Panel Description
1.7.1 Front Panel
1 2
3
4
5
6
1. DIP Swtich
2. HDMI / DVI Switch Button
3. HDMI Input
4. DVI / VGA Input
5. Power Indicator
6. Power Connector
1.7.2 Rear Panel
1
2
3
4
1. S/PDIF OUT
2. STEREO OUT
3. COMPONENT / VGA OUT
4. VGA / COMPONENT Switch Button
1.7.3 DIP Switch
PIN #
Mode
1
ON
Learn EDID from VGA socket and save EDID to HDMI socket
1
OFF
Write back default EDID to HDMI socket
2
ON
Learn EDID from VGA socket and save EDID to DVI socket
2
OFF
Write back default EDID to DVI socket
