9
LOCATION AND INSTALLATION (CONT.)

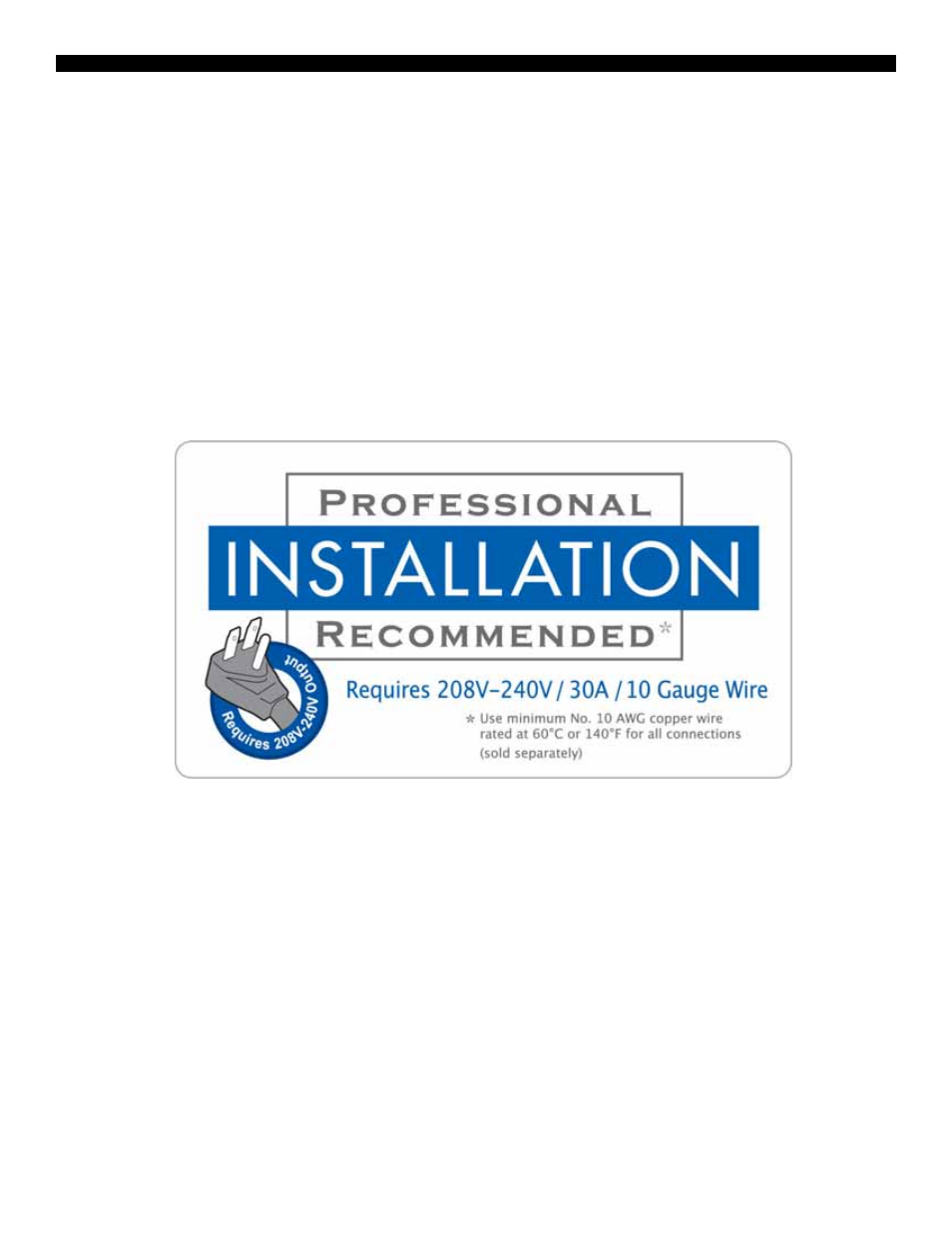

CONNECTING THE HEATER TO A 208V-240V / 30AMP PLUG (SOLD SEPARATELY)
1. Remove the screws from the back of the unit to remove the cover.
2. Attach the 208V-240V / 30 AMP Plug to the heater using the Live: L1 and L2,
(Also called “Line” or “Hot”), and Ground wires from the plug.
3. Connect the wires to the corresponding connections on the power terminal block located in the
base of the heater.
4. Connect the plug to a 208V-240V / 30Amp outlet.
