6

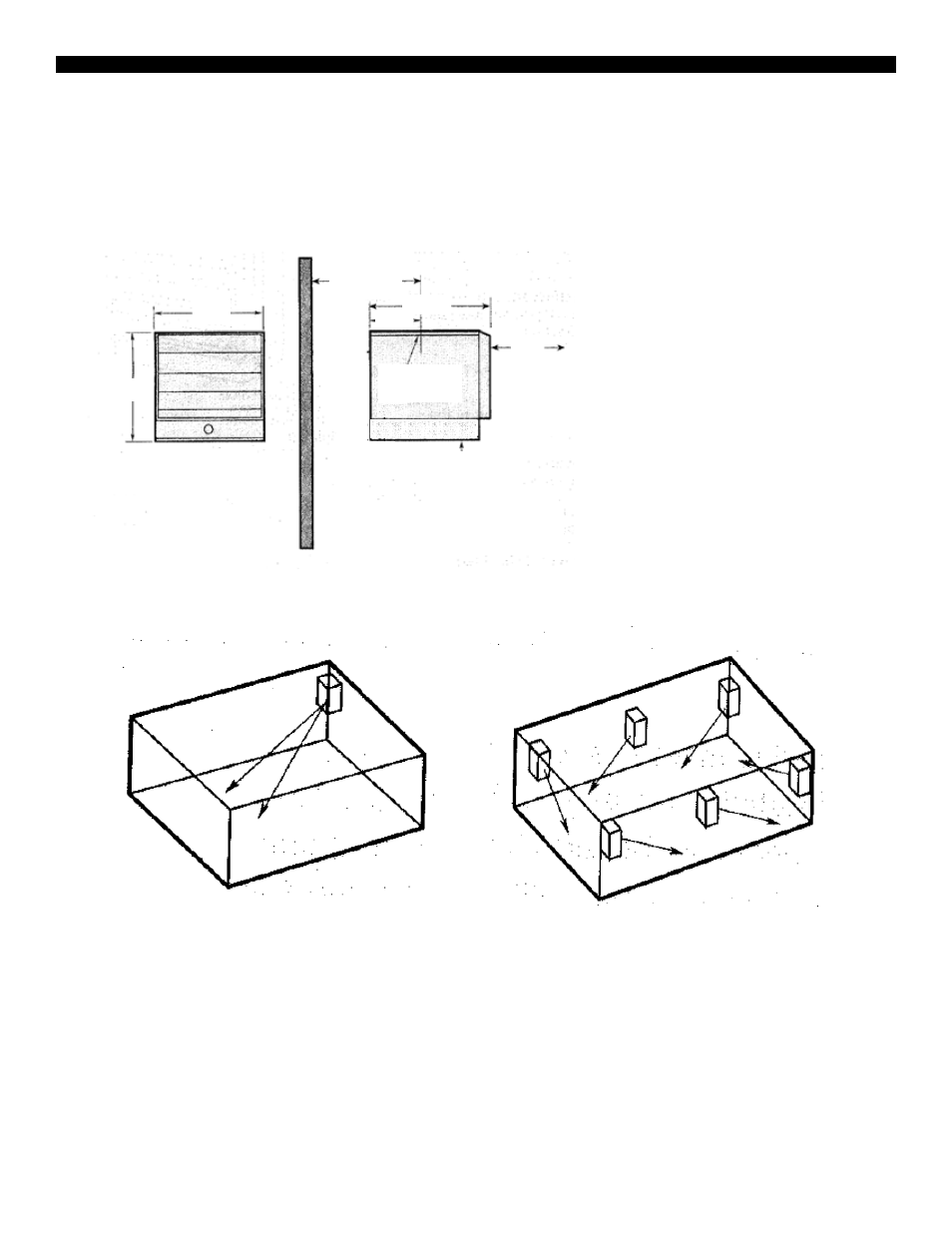

HEATER LOCATION AND INSTALLATION
Install the heater out of traffic areas maintaining the required clearances below. The direction of air flow shold
not be restricted by anything and the air flow should not blow directly at exposed walls. When more than one
heater is used in an area, the heaters should be arranged so that the air discharge of each heater supports the air
flow of the other heater(s) to provide optimal circulation of warm air
Note: Min. clearance to ceiling when
not using mounting brackets is 1 5/8”
14.37”
15.7”
5 1/2”
11.29”
MINIMUM
DISTANCE
TO WALL
13”
24”
MINIMUM
DISTANCE
FROM
DISCHARGE TO
ANY OBJECT
MINIMUM
DISTANCE TO
FLOOR 7.9 ft.
MAXIMUM MOUNTING HEIGHT FOR:
Vertical air delivery unit = 11 ft.
Horizontal air delivery unit = 8 ft.
FRONT VIEW SIDE VIEW
MOUNTING
LOCATION
DIAGRAM 1
