Electrical diagrams – SnowEx SP-9300X User Manual
Page 16
16
© TrynEx International 2014 (REV C) F50718

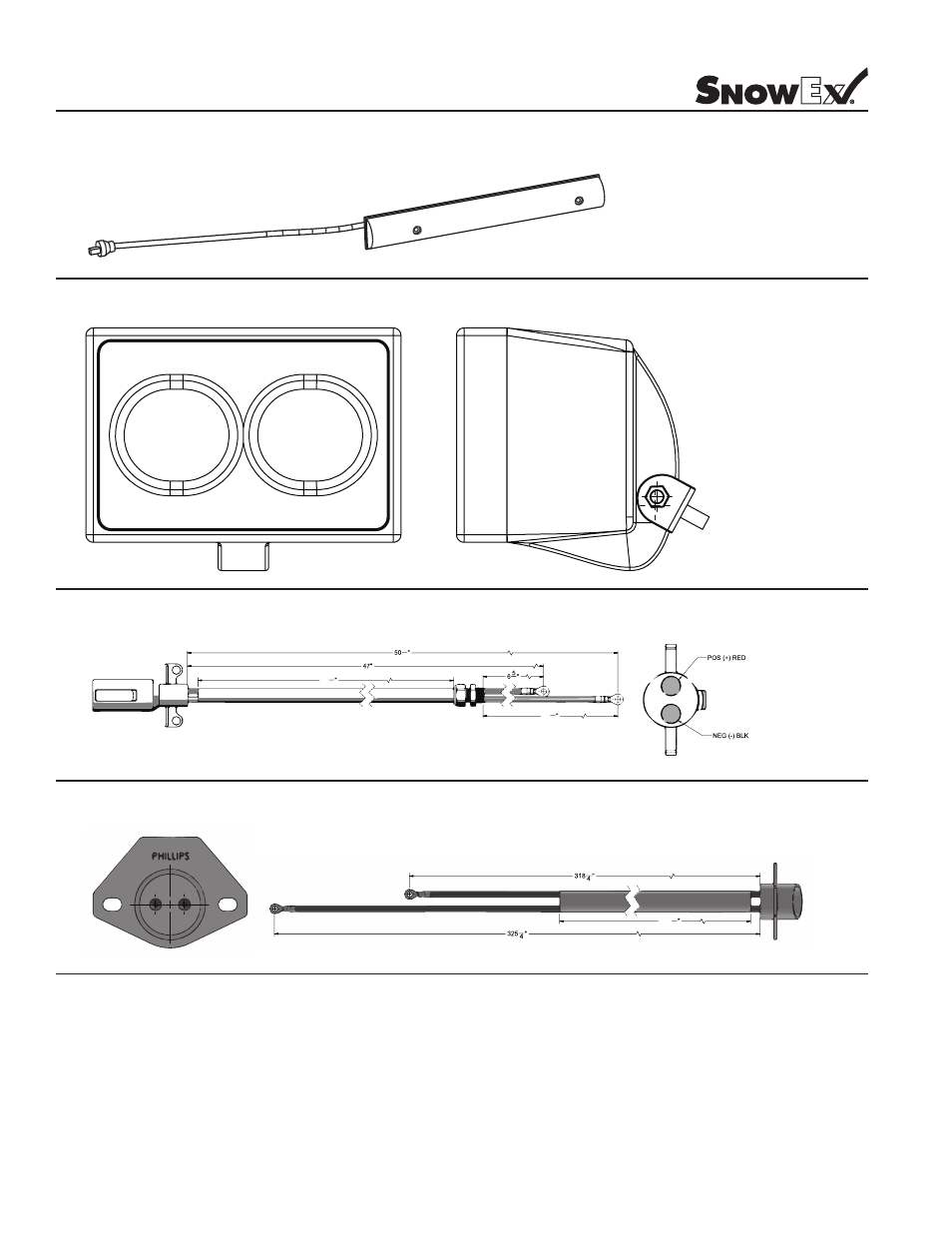

Electrical Diagrams
D6514 Center High Mount Stop Lamp
F50562 Work Light
F50408 Spreader Power Harness
IMPORTANT: Do Not modify harness length. Any modifications
will void warranty.
1. All external connections must have dielectric grease.
2. Read lead labels before attaching to power source or ground.
3. No other devices may be spliced into wiring harness.
4. Any repairs to wiring harness must be done with heat shrink
butt connectors.
1
2
38 12
10 18
8
F50409 Vehicle Power Harness
3
3
310 12
