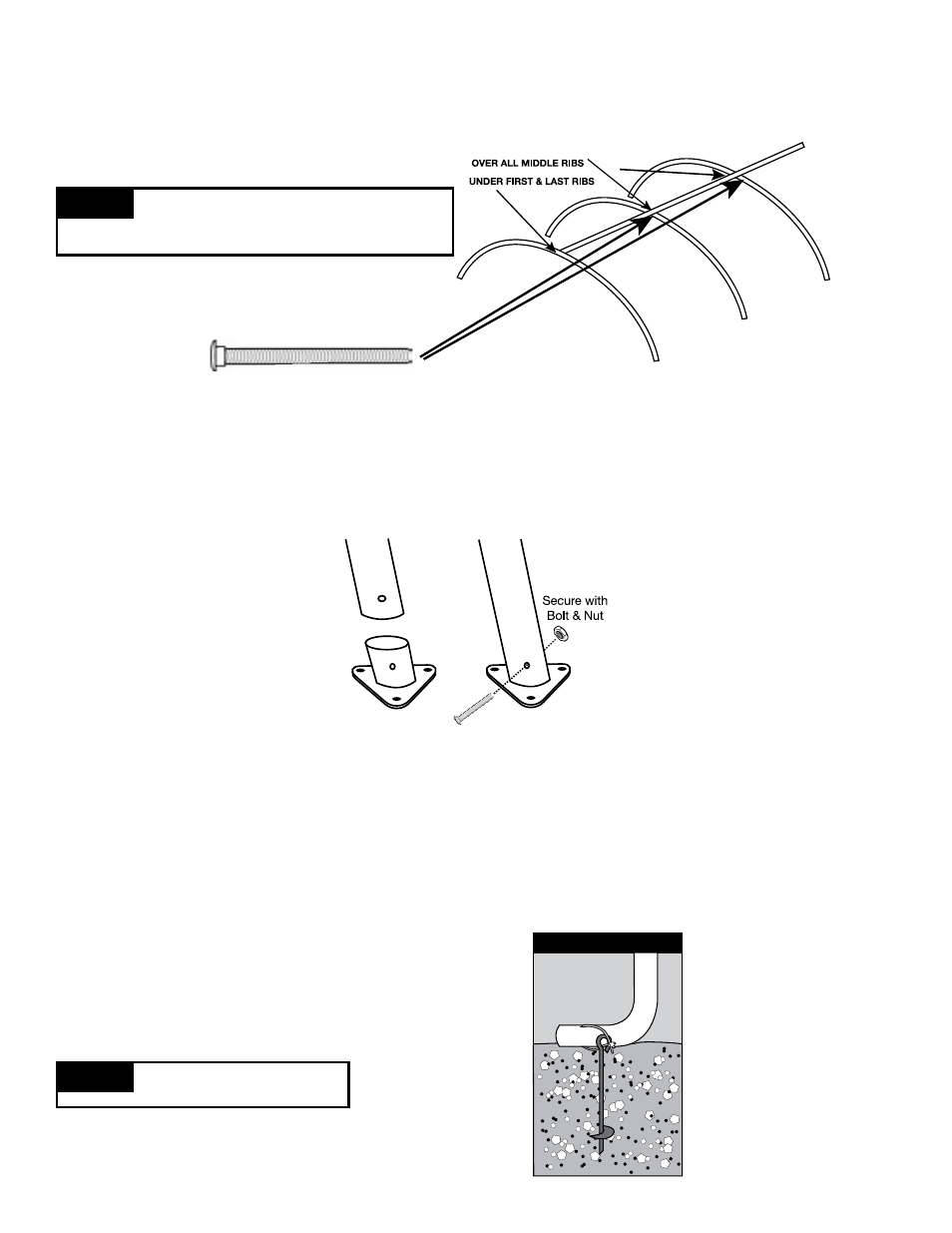

sTep 4 InsTAllInG Top RAIl
Install top cross rail assembly starting with (1) 02031 Plain Cross Rail Tube UNDER the last bow and on TOP
of all the middle bows. End with the plain end of the Cross Rail Tapered End UNDER the front bow.
noTe:
Use the Special Round Head
1/4" x 3" Bolts for securing the top
rail to the Middle Ribs only!
sTep 5 ATTAcHInG & secURInG BAse FeeT
Depending on the model you have purchased, your base feet will either fit onto the outside of the leg poles,
or slide inside the leg poles. After installing Base Feet Plates onto the bottom of Middle Leg Poles, be sure to
line up the pre-drilled hole in the leg with the pre-drilled hole in the base foot. Insert 1/4" x 2" bolts all the way
through laeg and foot, to the other side, secure with bolt.
sTep 6 AncHoR sHelTeR
w/ AUGeR AncHoRs for
dIRT sURFAces
You will secure the anchors to the corner leg bends using
the cable and clamp. Be sure to put cable through the hole
in the corner leg bend, and through eye of anchor, secure
clamp. Repeat process attaching the remaining anchors to
the middle ribs with the cable around the upright above the
foot plate.
noTe:
Anchors must be placed
inside of shelter!
End Rib Anchors
NOTE:
15" Augers are for temporary use only!
For best results ShelterLogic recom-
mends using our Easy Hooks (#10036
4-pack, #10035 6-pack, or #10038
8-pack) or 30" Augers (#10075 4-pack,
#10078 6-pack, or #10079 8-pack) for a
stronger, more secure
installation.
Call 1-800-524-9970
or visit
www.shelterlogic.com
for more information.
