Attach side walls to frame – ShelterLogic 27775-27777 30 x x0 2-3/8 ULTRAMAX Enclosure Kit" User Manual
Page 4

05-27275_27276_27277_27775_27776_27777-0A
Page 4
NOTES:
• Canopy Enclosure panels attach to frame with bungee cords.
• Leave Canopy Cover bungees in place when attaching Enclosure panels.
CAUTION:
Bungee Cords are under extreme tension. Use Caution when installing. Safety glasses are
recommended to prevent injury.
1. ATTACh SIDE WALLS TO FRAME
A.
If tightened at corner leg poles, disengage the TwistTite
™
cord and “S” hook from canopy cover and corner
legs. Re-tighten after all Enclosure panels have been secured.
B. Attach the extension panels with bungees to the cross rails at the top first. Adjust the panels as needed to
ensure a tight and even fit before securing to the leg poles.

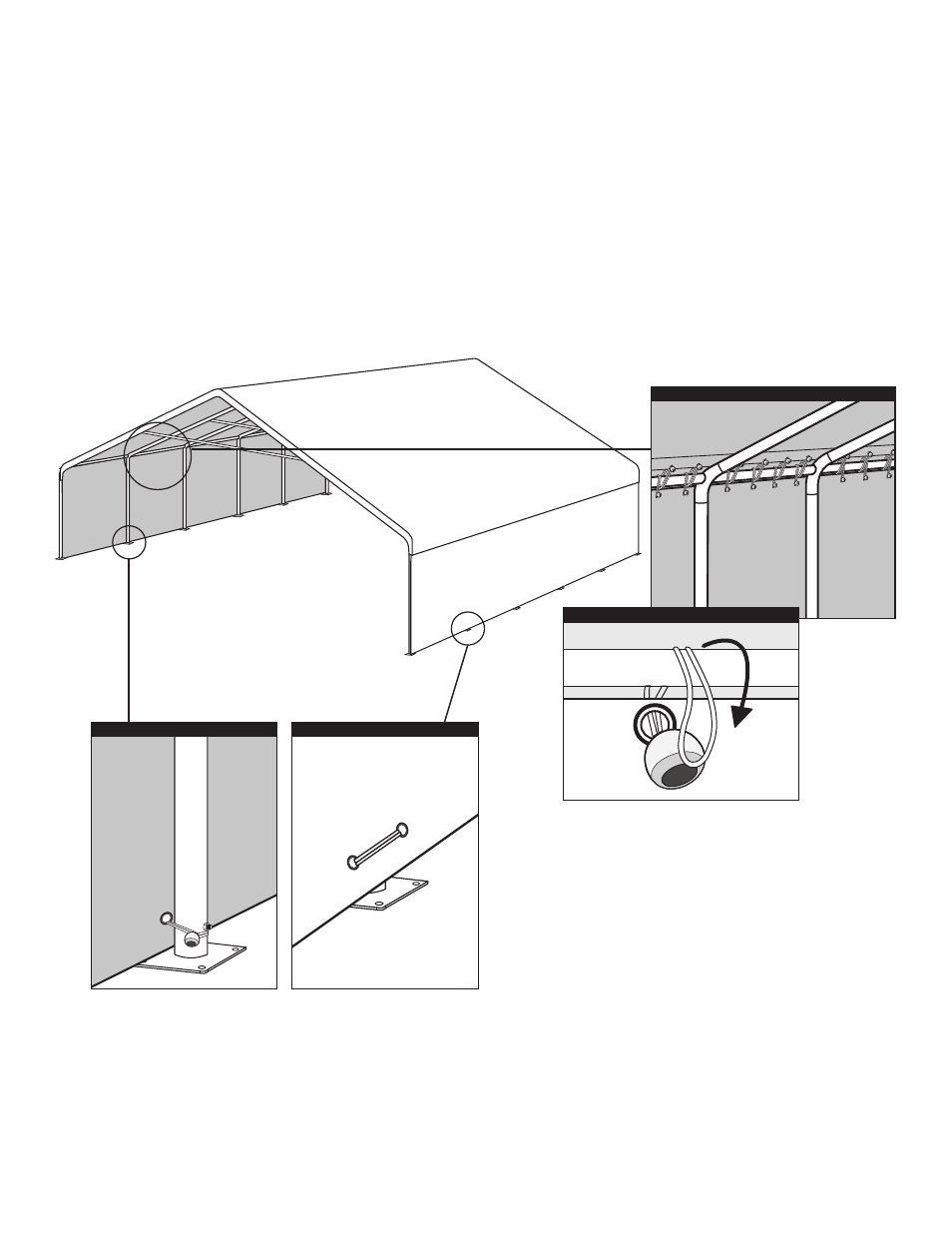

Interior View of Canopy Base Feet
Side Wall
Panel
(Interior)
Exterior View of Canopy Base Feet
Side Wall
Panel
(Exterior)
Interior View Enclosure Panel Setup
Side Wall
Panel
Insert Bungee Cord Through Grommet
