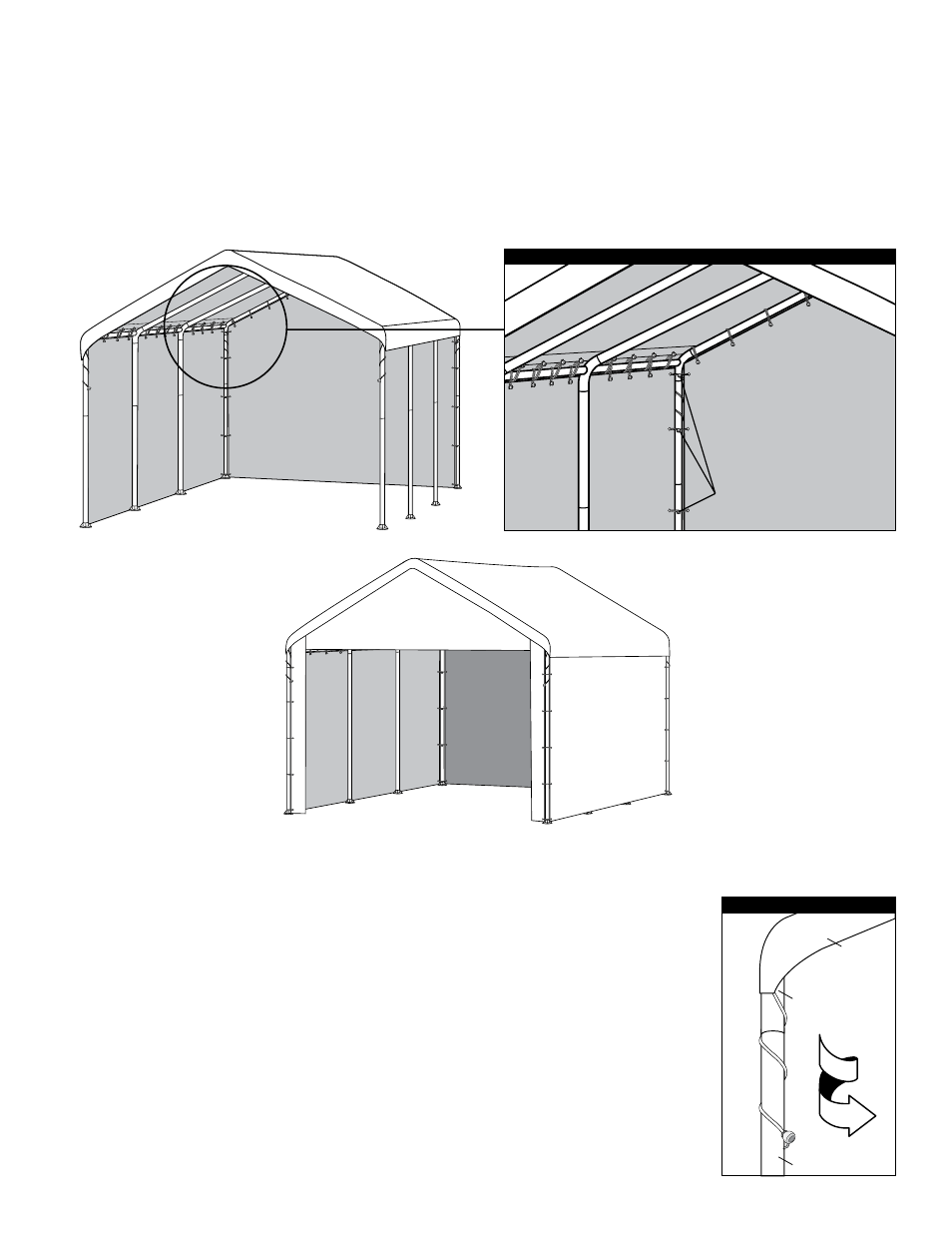

7. TIGHTEN THE COvER WITH TWIST TITE

A. Wrap the cord with plastic ball and "S" hook at the corners of the cover around the

corner leg poles. Insert "S" hook into the hole of the corner leg poles.
B. Twist each leg pole toward the inside of the shelter until the cover becomes tight

Twist the leg poles equally to ensure the cover stays aligned during tightening.

Twist-Tite

Tighten Cover

13105

10072

13101

6. ATTACH ENCLOSURE WALL AND DOOR PANELS

Canopy enclosure panels attach to frame with bungee cords.

A. Attach all the enclosure panels with bungees at the top first. Adjust the panels as needed to ensure a tight

and even fit before securing to legs with bungees.

B. When securing enclosure panels to legs, note that each bungee is shared with the neighboring panel.

NOTE:

Door panels zippers must be closed when securing door panel.

CAUTION:

Bungee Cords are under extreme tension. Use Caution when installing. Safety glasses are

recommended to prevent injury.

Interior / Rear view of Canopy Enclosure Panels

End Panel
10085

One bungee for

both panels.

Side Wall

Panel
10082
