05-23529-0D Page 5
Grommet Panels for Bungees
Grommet
Panel
10066
13107
or
13103
13101

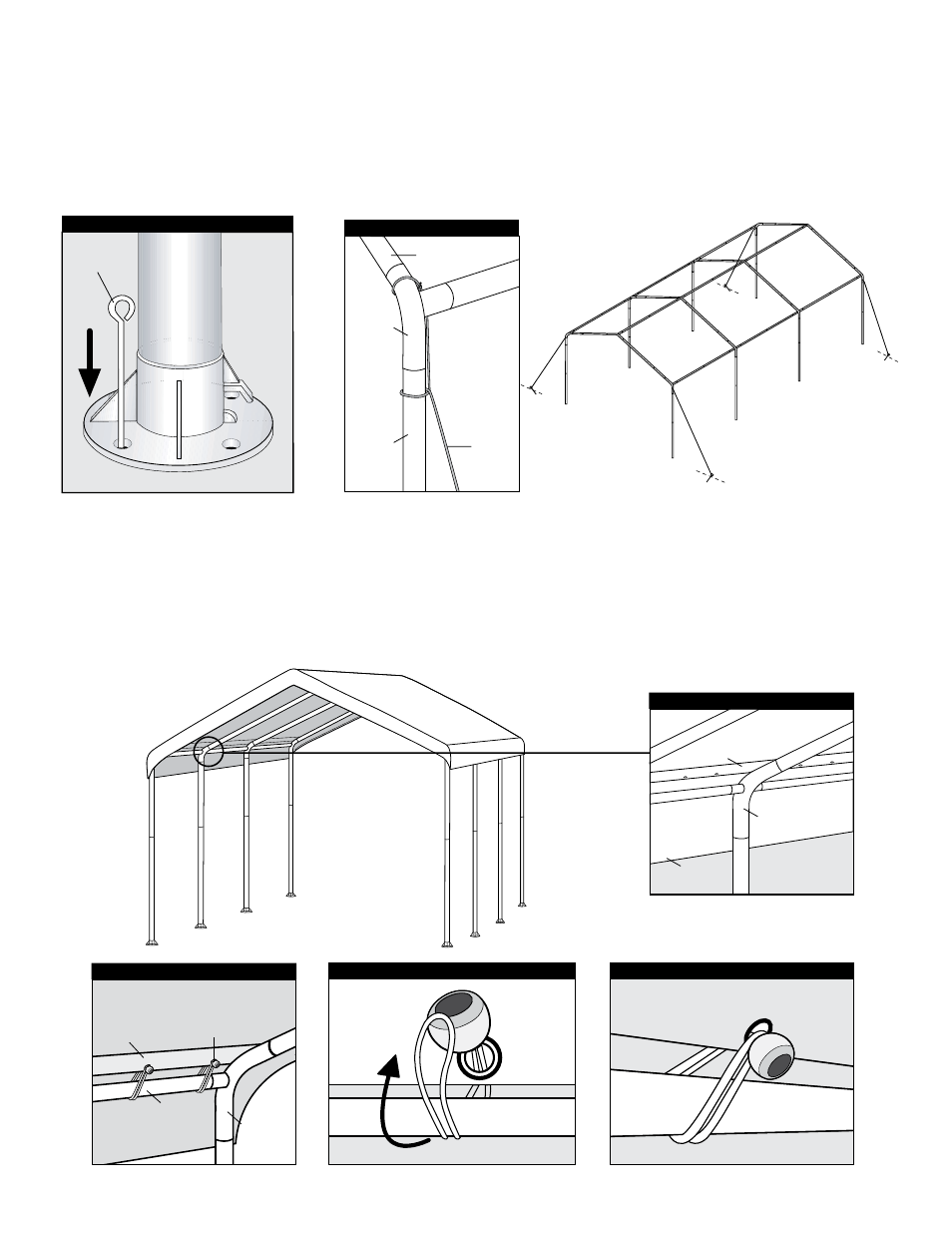

5. PLACE COvER AND SECURE TO CANOPY FRAME
A. Place cover over assembled roof frame with grommet panels facing down, aligned with cross rails.
B. Make sure the cover is properly aligned on the frame, secure the four corners of the cover with bungees
(10066) to the frame first . Attach remaining bungees.
Re-adjust bungees position along cross pole as needed to ensure a tight and even fit of the cover to the frame.
Grommet Panels for Bungees
Grommet Panel
10072
13102
Anchoring Base Feet
10431
Secure Bungee Around Plastic Ball Insert Bungee Cord Through Grommet
4. ANCHOR THE FRAME
There are four holes on each base foot that the anchor can go into.
A . Select a hole in each base foot. Insert each anchor (10431) into the ground until the round head is touching the
base foot. These anchors prevent the canopy from shifting. Insert one anchor into all four base feet.
This is a temporary spike anchor. Not intended for permanent use.
B
. To securely anchor canopy, Accessory Anchoring Kit #10073 is recommended. The 4-anchor pins are inserted
into the ground. Then the ropes are tied from the anchors to the corner tees as shown in B.
Tie Rope Around Frame Corners
13105
rope
13101
13104
A
B
