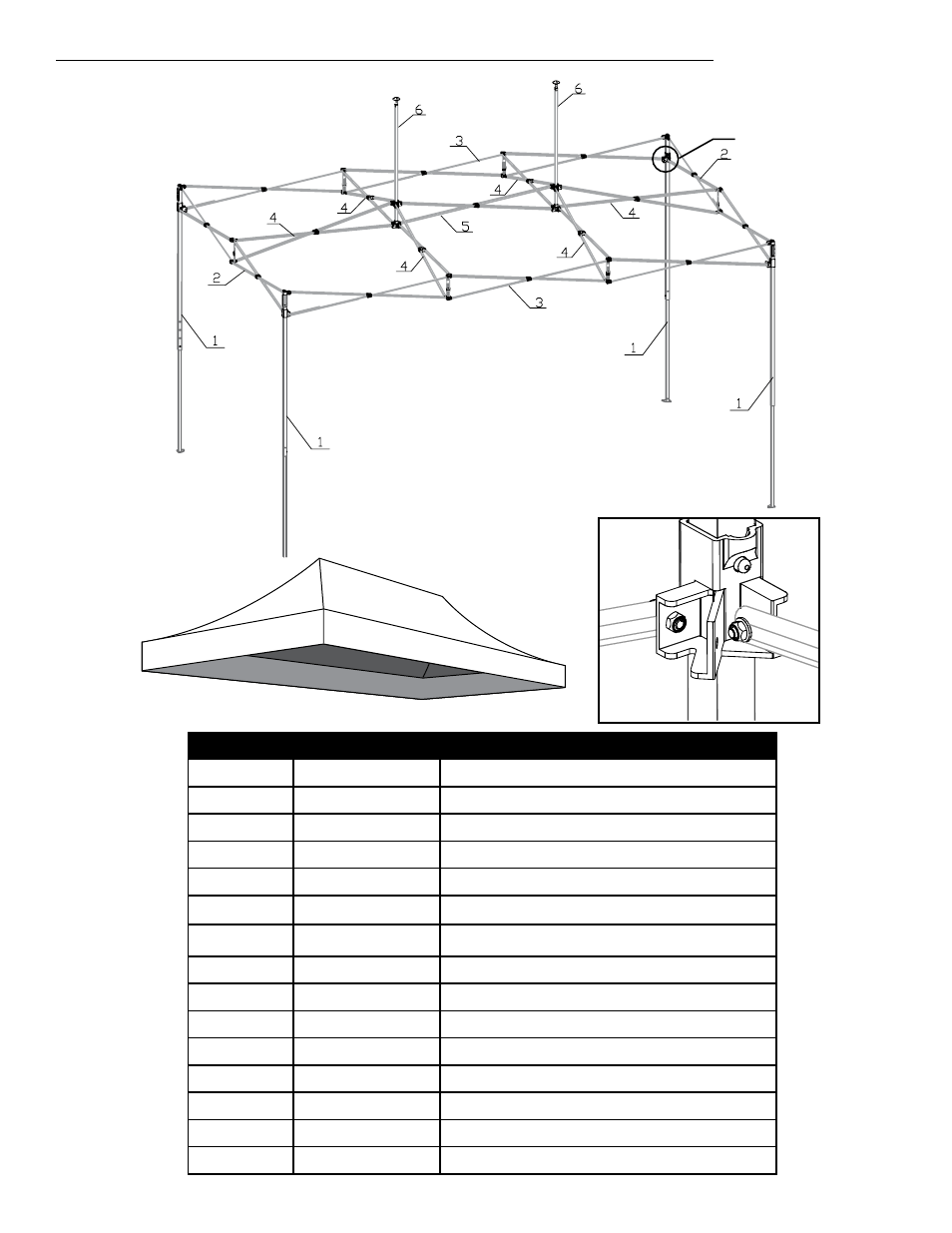

ShelterLogic 22599 10’x15’ Straight Leg Pop-Up User Manual
Page 4
05-22550-22551-22552-
22553-22554-22555-22599-0C
Page 4
Part
Part Number
Description
1
15381
Leg Tube Assembly
2
15370
Gemel Assembly, side 1
3
15398
Gemel Assembly, side 2
4
15373
Gemel Assembly, supports
5
15399
Gemel Assembly, middle
6
15376
Top Tube Kit
7
15480
Replacement Cover - White
7
800807
Replacement Cover - Red
7
800808
Replacement Cover - Blue
7
800809
Replacement Cover - Green
7
800810
Replacement Cover - Black
7
800811
Replacement Cover - Desert Bronze
7
800812
Replacement Cover - Checkered Flag
8
22606
Sliding Connector Kit
not shown
15557
Replacement Roller Bag
to order replacement Parts, Please order by Part number:
8
7
see
8
