ShelterLogic 14553 7 4 x 10 Quick Clamp Canopy User Manual
Page 5
05-14553-0A
Page 5

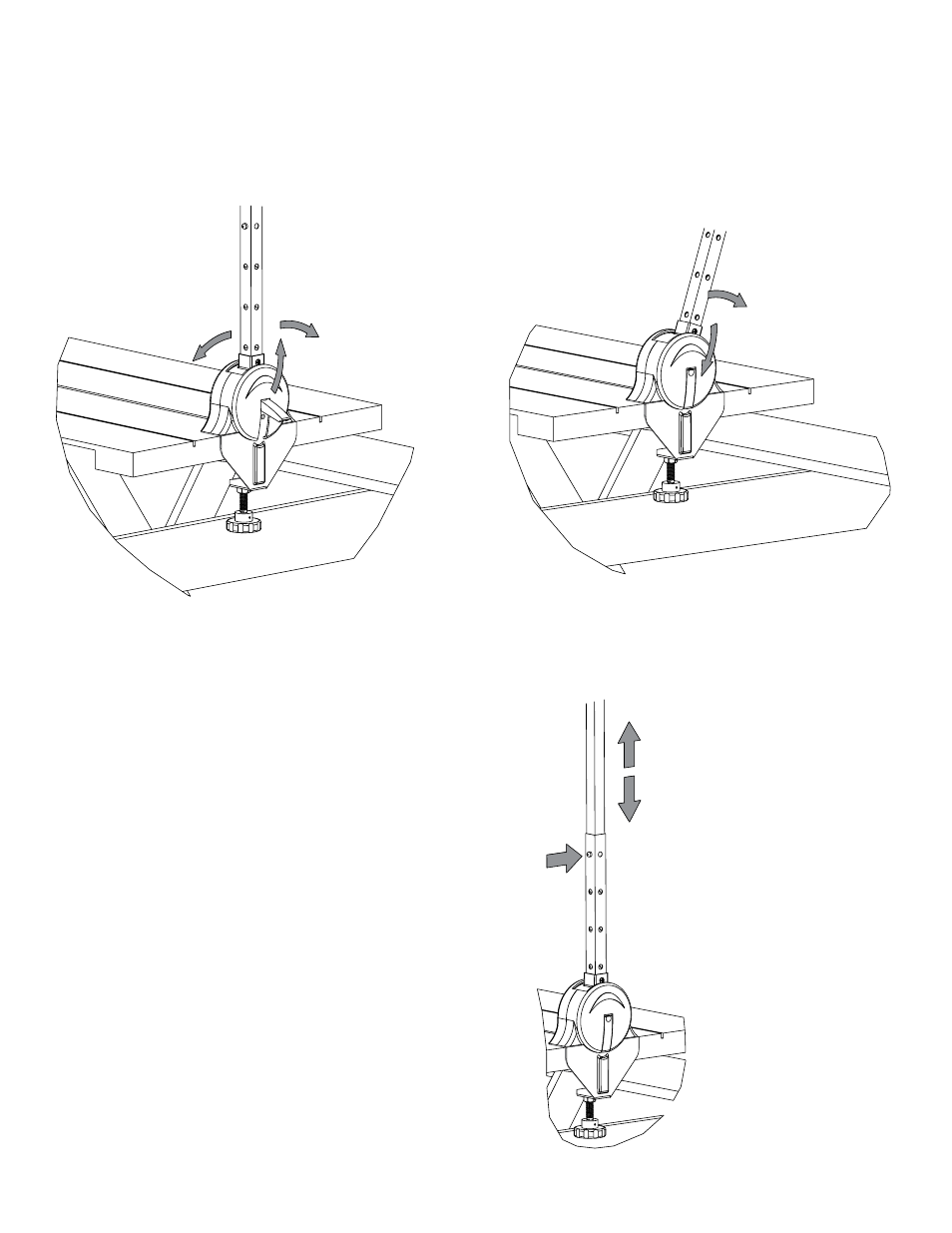

7. ADJUSTInG YoUr TILT-MoUnT CAnoPY
A. Adjusting the angle of the base:
B. Adjusting height of the canopy:
Lift handle to release the upright and move to
desired position.
Push pop-pin in and slide the upright to the desired position.
Push handle down to lock the upright in place.
CAUTION: Do not force handle
