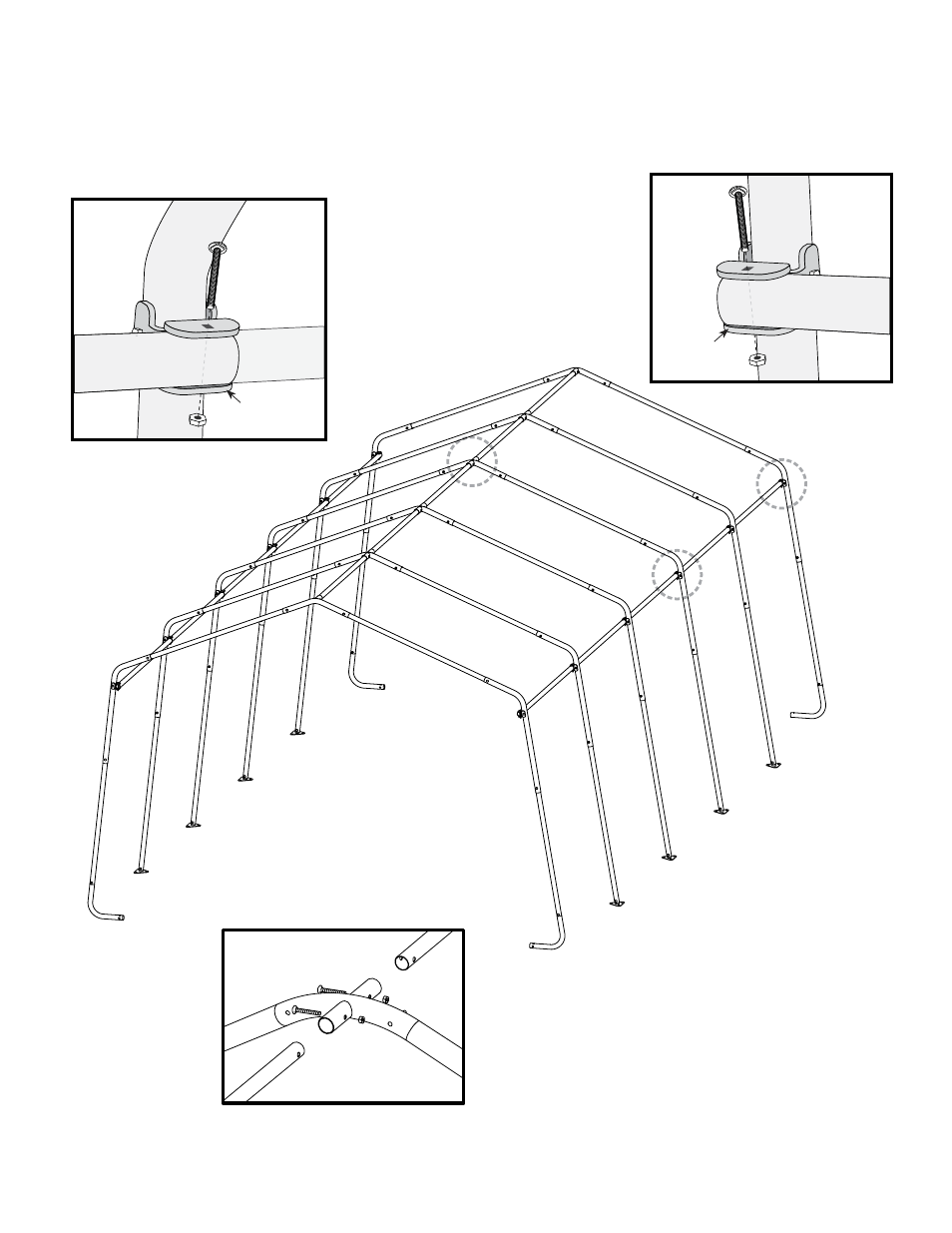

4. connect reMAininG riBs
A. Use #802129 Side Cross Rails and ShelterLock
®
3X (800938) to connect middle ribs as shown.
B. Use #802129 Side Cross Rails and ShelterLock
®
3X to connect rear end rib.
C. Use Top Cross Rail (801258) to connect ribs at the top.
