Assemble legs & attach to roof frame, Assemble cover rails, Use bolts as shown in illustrations – ShelterLogic 70413 6 x 12 x 8 Shed-in-a-Box User Manual
Page 5
05-70413-0C
Page 5
10110
10110
10110

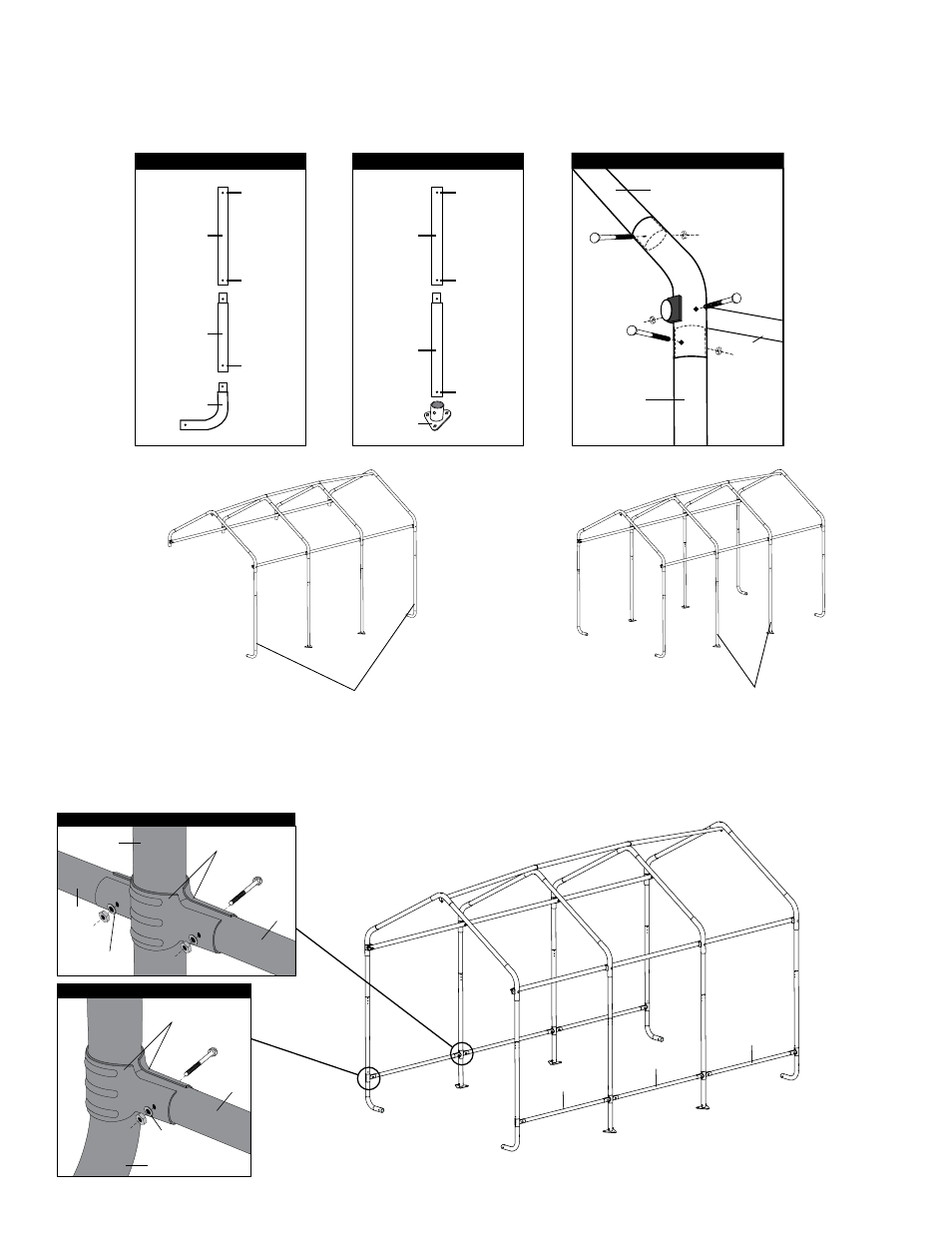

3. ASSeMBle leGS & AttAcH to rooF FrAMe
Use bolts as shown in illustrations.
4. ASSeMBle coVer rAIlS
A. Assemble Corner and Middle legs.
B. Attach legs with bolts on one side of roof frame, let the other side of roof frame rest on the ground.
C. Attach remaining legs with bolts to opposite side of roof frame.
A. Place the cover rail
(10110)
at each leg and secure it at each leg with a cover clamp as shown below.
B. Slide the cover rails so they are 8 inches up from the ground and hand tighten bolts on clamps.
Corner Legs
Middle Legs
802437
802440
Use Bolt
10115
Use Bolt
10115
Use Bolt
10115
802427
Corner Legs
Use Bolt
10115
Use Bolt
10115
Use Bolt
10115
802610
802437
802445
Middle Legs
Front
reAr
Attach Legs to Roof Frame
10115
10115
802497
800071
802439
802285
(Assembled Leg)
Middle Rib Cross Rail Clamps
10115
10110
10110
13201
802445
01011
End Rib Cross Rail Clamps
10115
10110
13202
802427
01011
