4. The modular system of the PSU

A special feature for the connection of peripheral devices is the so-called cable management. Thanks to
this modular system only the really required cables need to be connected thus keeping the case tidy and
optimizing the airflow within.

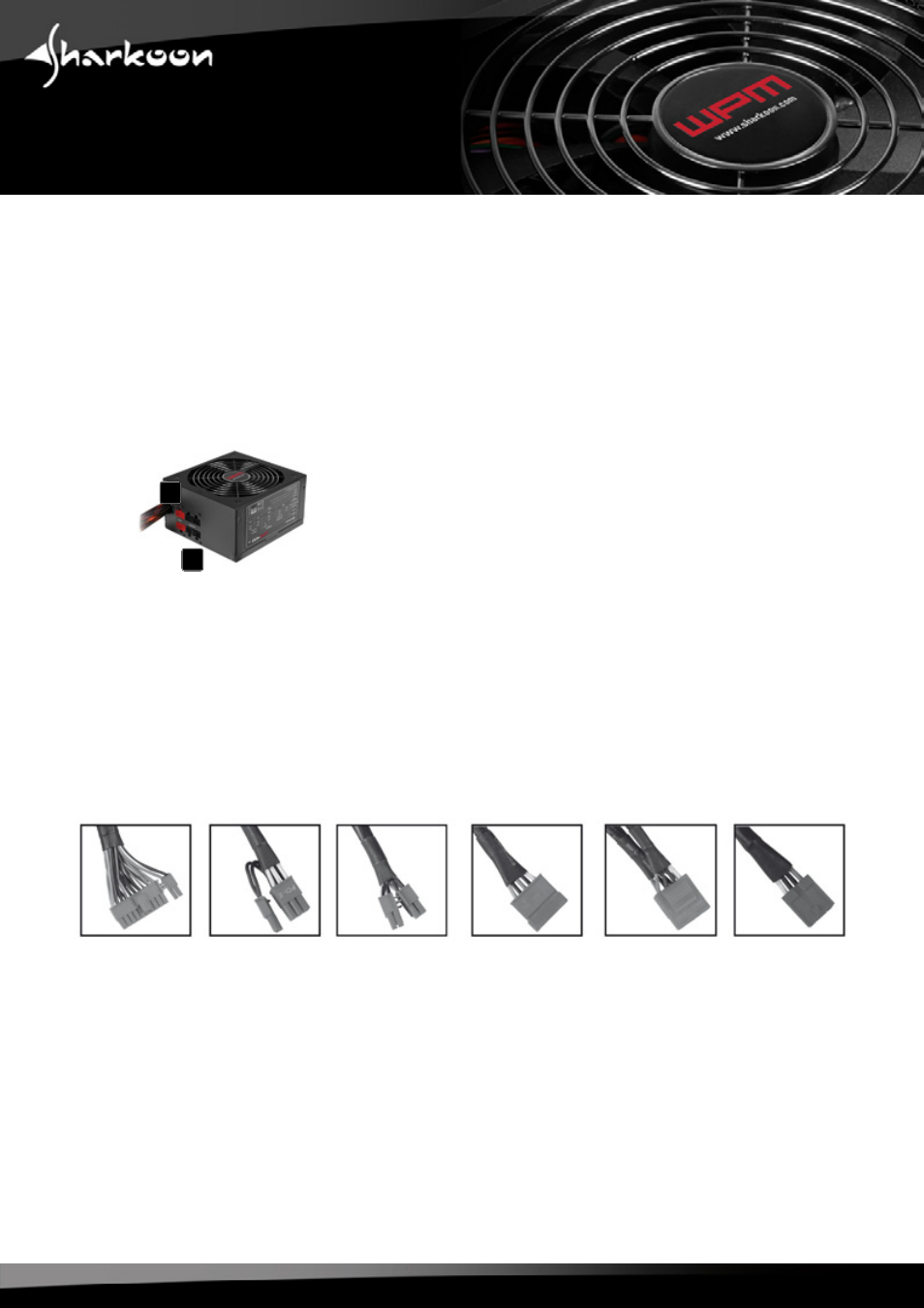

4.1 The terminals on the PSU

(A) 2x 6+2-pin terminals for PCIe connectors (red)

(B) 4x 6-pin terminals for SATA and peripheral device
connectors (black)

4.2 The modular cables

Besides the 20+4-pin ATX connector cable, a 4+4-pin P8 connector cable and a 6+2-pin PCIe cable are
solde red to the PSU. The PSU is delivered with an extensive set of modular cables:



1x 20+4-pol. 2x 6+2-pol. 1x 4+4-pol. 6x SATA 5x 4-pol. 1x Floppy
mainboard connector PCIe connector power connector power cable cable power cable
