WPM BRONZE SERIE 7


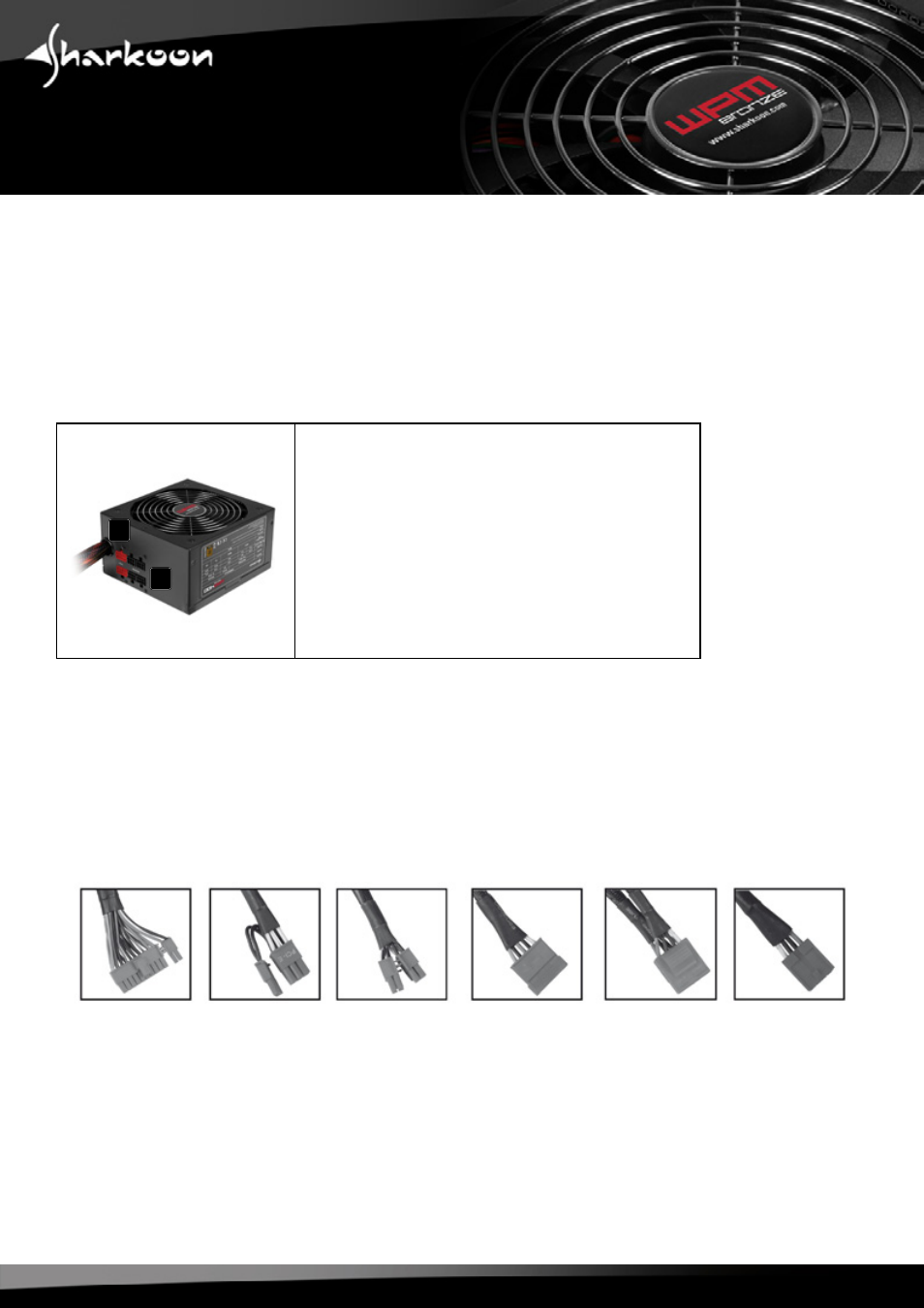

4. The modular system of the PSU
A special feature for the connection of peripheral devices is the so-called cable management. Thanks
to this modular system only the really required cables need to be connected thus keeping the case tidy
and optimizing the airflow within.
4.1 The terminals on the PSU
(A) 2x 6+2-pin terminals for PCIe connectors (red)
(B) 4x 6-pin terminals for SATA and peripheral
device connectors (black)
4.2 The modular cables
Besides the 20+4-pin ATX connector cable, a 4+4-pin P8 connector cable and a 6+2-pin PCIe cable are
soldered to the PSU. The PSU is delivered with an extensive set of modular cables:
A
B
1x 20+4-pol.
mainboard connector
2x 6+2-pol.
PCIe connector
1x 4+4-pol.
power connector
6x SATA
power cable
5x 4-pol.
cable
1x Floppy-
power cable
