Tauron

11

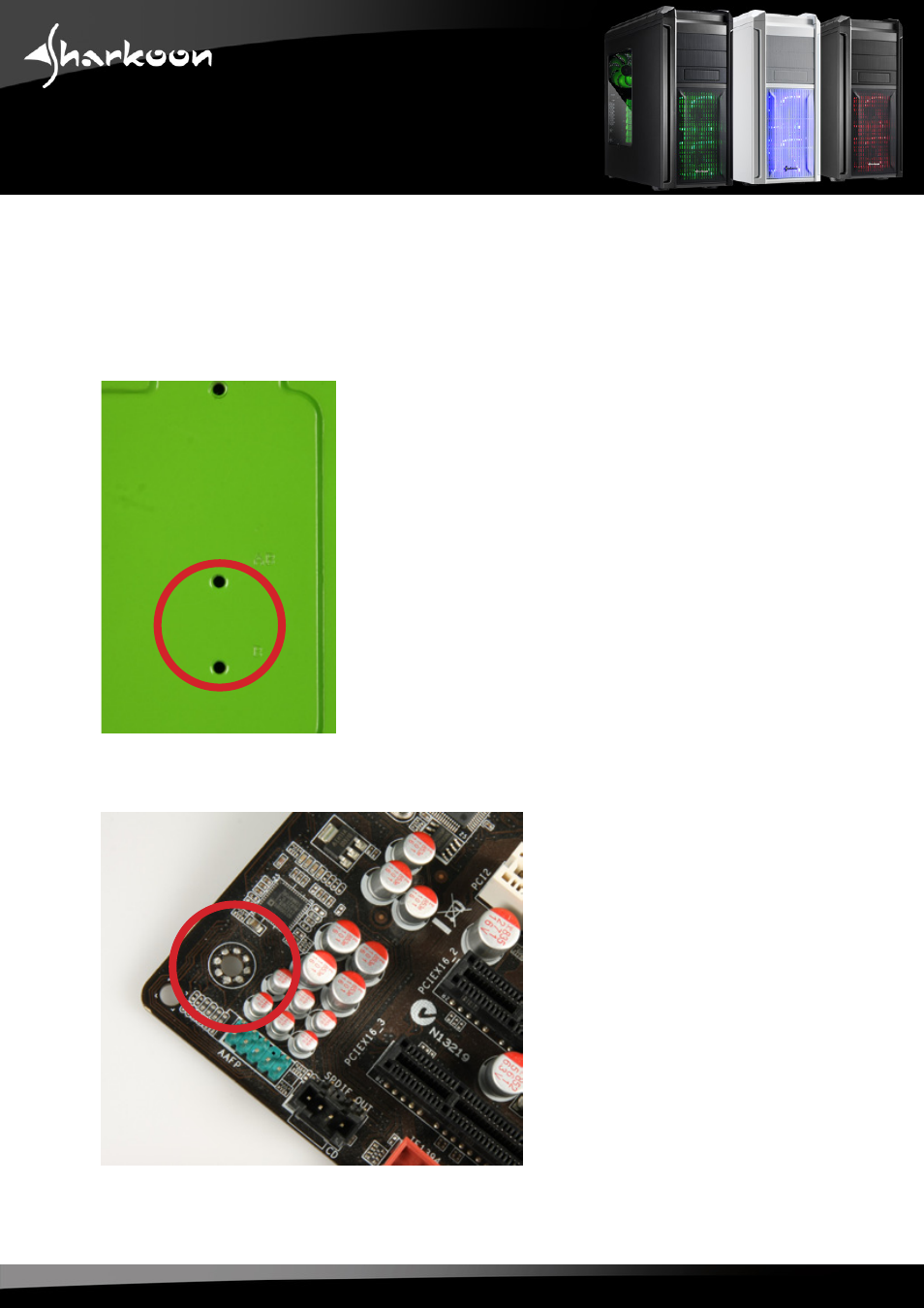

6. Installation of a mainboard

1. Unscrew the thumb screws on the back side of the case and remove both side panels. Lay down the
case sidewise on an even surface.

2. The mounting panel of the mainboard inside the case provides various mounting holes to fix the
standoffs (fig. 3).

Fig. 3

The mainboard contains special screw mounts (fig. 4).

Fig. 4
