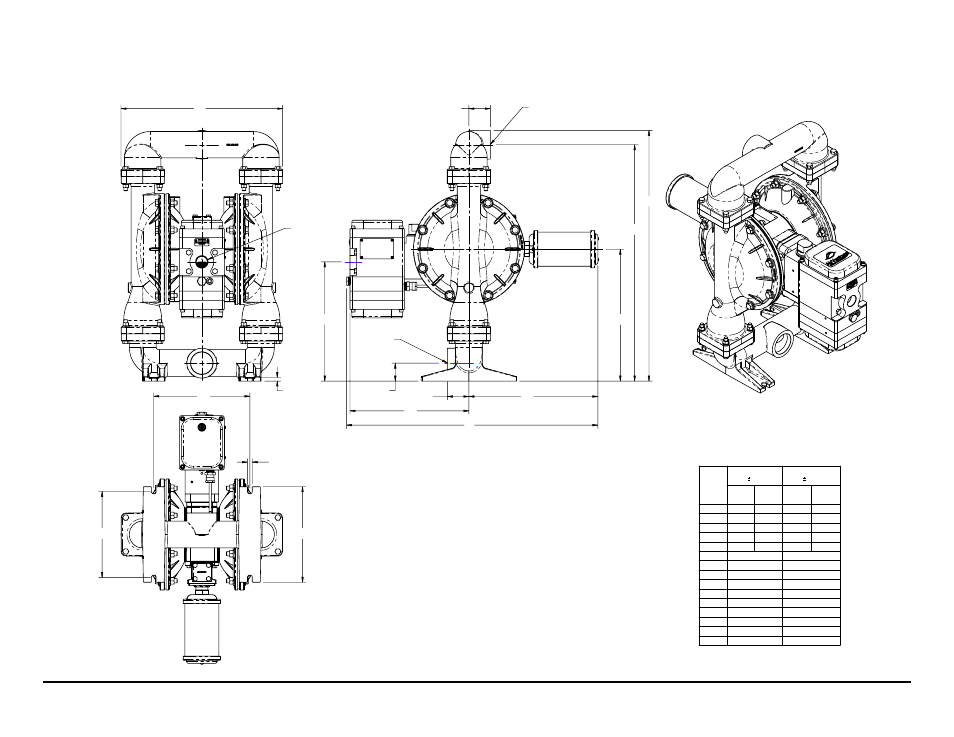

Dimensions: Hazardous Duty RS20 Metallic
K
P
AIR INLET
1" NPT
B
C
D
F
F H
G
E
J
A
DISCHARGE PORT
2" NPT
SUCTION PORT
2" NPT
M
L N
Q BOTH SUCTION AND DISCHARGE PORTS ARE
AVAILABLE WITH 2" BSP CONNNECTION
English
.125
Metric
3mm
Aluminum
Cast Iron
Stainless
Alloy "C"
Aluminum
Cast Iron
Stainless
Alloy "C"
A 1.88 2.00 48 51
B 13.81 13.94 351 354
C 24.75 24.88 629 632
D 26.25 26.38 667 681
E 12.50 26.62 317 321
F 2.25 57
G 12.46 316
H 13.50 343
J 26.31 668
K 16.94 430
L 9.00 229
M 10.06 256
N 10.00 254
P .38 10
Q .50 13
