spa105dl3sm Model SPA1½-E and SPA40-E Design Level 3 Page 5

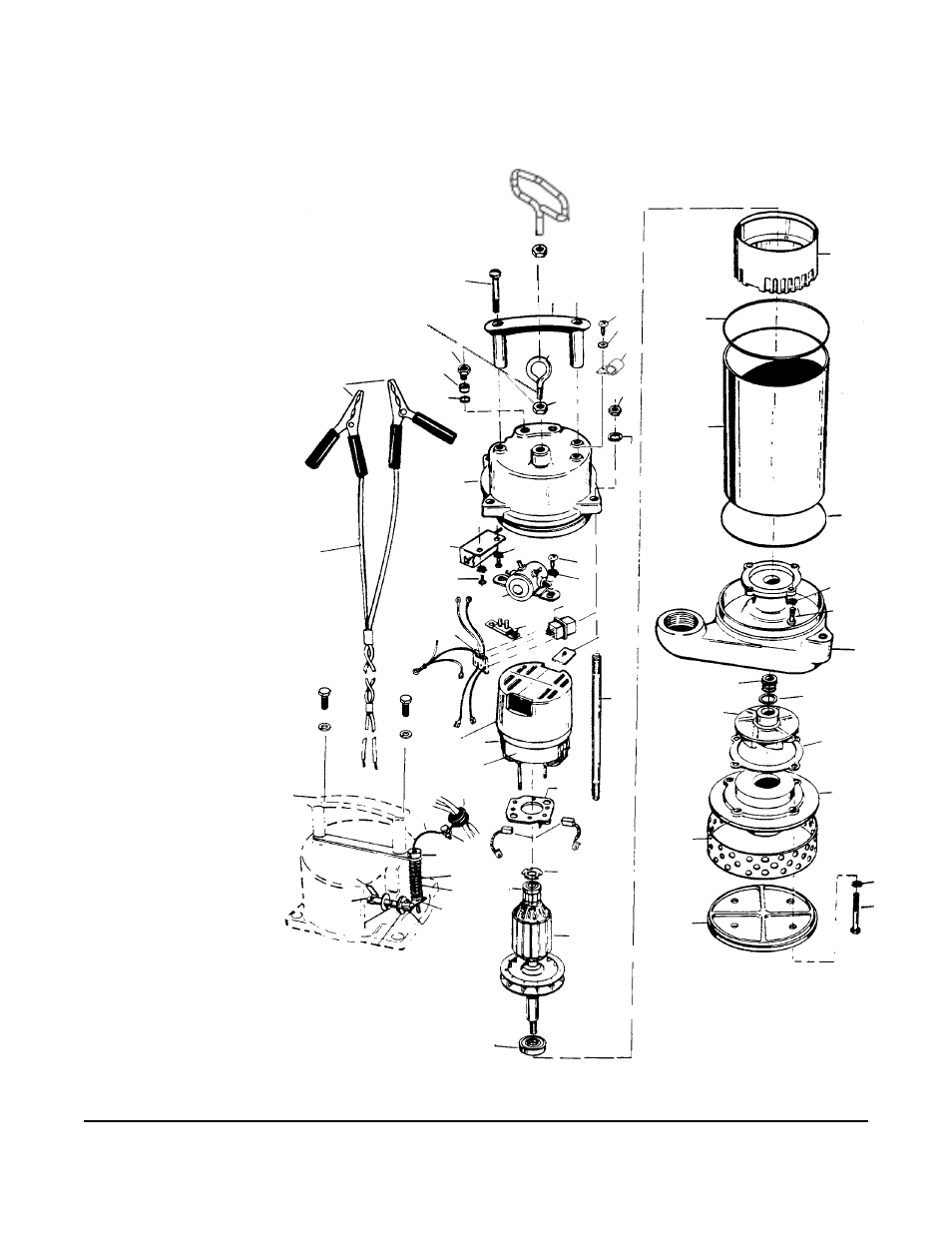

INSTRUCTIONS FOR HANDLE CONVERSION
24
49
57
48
28
29
21
22 25
26
27
47
18
19
20
55
15
16
53
51
54
30
31
52
56
46-4 46
46-1
2
3
4
5
6
7
1
12
13
14 10
11
9
8
46-9
46-2
46-8
46-6
46-7
46-5
40
34
36
39
41
35
38
37
44
42
33
34
43
45
43
46-3
Remove Plastic Handle And Install New
Hardware Directly To Bracket Assembly.
405-009-000 Handle (1)
170-032-330Capscrews (2)
900-001-300 Lock Washers (2)
Remove Eye Bolt And Nut And Install 405-009-000
Metal Handle. Lock In Place With 545-005-330
Hex Nut (Included In Kit).
545-005-330 Hex Nut (1)
