Dimensional drawings, S30 metallic, threaded ports, Model specific – SANDPIPER S30 Metallic User Manual
Page 7: Pump specs, Bottom view front view side view, Model s30 metallic, Dimensions in inches. dimensional tolerance:±1/8
s30mdl1sm-rev0614
sandpiperpump
.
com
Model S30 Metallic •
4
D
E
A
B
C
STANDARD
INTEGRAL MUFFLER
1" NPT EXHAUST PORT
FOR OPTIONAL MUFFLER
STYLES OR PIPING EXHAUST
AIR IN SUBMERGED
APPLICATIONS.
SUCTION PORT
3" NPT TAP
DISCHARGE PORT
3" NPT TAP
AIR INLET
3/4” NPT
BOTH SUCTION AND
DISCHARGE PORTS ARE
AVAILABLE WITH
3" BSP TAPERED THREADS
BOTTOM VIEW
FRONT VIEW
SIDE VIEW
Pulse Output Kit
Aluminum
Sound Dampening Muffler
Integral Muffler
Stainless Steel
Metal Muffler
DIMENSION
B
C
D
E
15 3/4
15 3/4
29 31/32 2 11/32 17 9/64 32 1/16
30 3/16 2 9/16 17 23/64 32 9/32
Mesh Muffler
17 3/16
17 3/16
16 3/4
A
E
D
C
B
A
STANDARD
INTEGRAL MUFFLER
3" NPT EXHAUST PORT
FOR OPTIONAL MUFFLER
STYLES OR PIPING EXHAUST
AIR IN SUBMERGED
APPLICATIONS.
SUCTION PORT
3" NPT TAP
DISCHARGE PORT
3" NPT TAP
AIR INLET
3/4” NPT
BOTH SUCTION AND
DISCHARGE PORTS ARE
AVAILABLE WITH
3" BSP TAPERED THREADS
BOTTOM VIEW
FRONT VIEW
SIDE VIEW
Pulse Output Kit
Aluminum
Sound Dampening Muffler
Integral Muffler
Stainless Steel
Metal Muffler
DIMENSION
B
C
D
E
400
400
761
60
435
815
767
66
441
821
Mesh Muffler
437
437
425
A

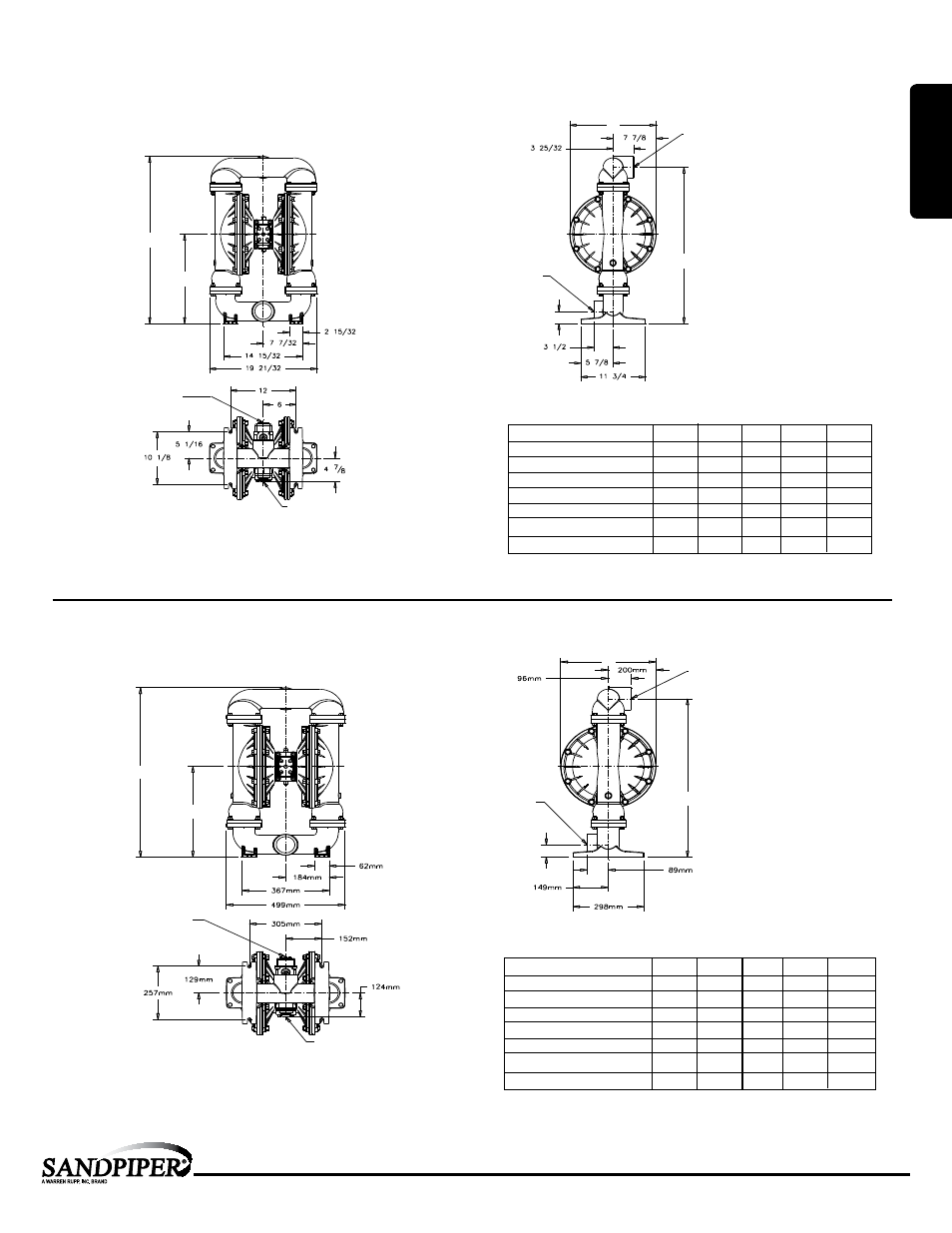

S30 Metallic, Threaded Ports
Dimensions in Millimeters. Dimensional Tolerance:± 3mm
S30 Metallic, Threaded Ports
Dimensions in Inches. Dimensional Tolerance:±1/8"
Dimensional Drawings
MODEL SPECIFIC
1: PUMP
SPECS
