FLUID CONNECTIONS
CAPACITY
1/4" BSP Parallel
0 - 16.7 Litres/Minute
(0 - 4.4 Gallons/Minute)
MAX SOLIDS
1 MM
(1/16”)
MAX DISCHARGE HEAD
88 Meters
(289 ft)
MAX DISPLACEMENT/STROKE
0.011 Litres
(0.0034 U.S. Gallons)
MAX. WORKING PRESSURE
AIR INLET
PUMP WEIGHTS
125 psi (8.6 Bar)
1/4" NPT
TEMPERATURE LIMITS
Determined by Elastomers
(8.82Lbs)
4.0 Kg
TECHNICAL DATA
Caution -
Operating temperature limitations are as follows:
Operating Temperatures
Materials
Maximum
Minimum
Optimum
Nitrile -
General purpose, oil resistant. Shows good solvent, oil, water and hydraulic fluid resistance. Should not
be used with highly polar solvents like acetone and MEK, ozone, chlorinated hydrocarbons and nitro hydrocarbons.
176
o
F
80
o
C
-18
o
F
-28
o
C
50
o
to 140
o
F
10
o
to 60
o
C
EPDM -
Shows very good water and chemical resistance. Has poor resistance to oils and solvents, but is fair on
ketones and alcohols.
212
o
F
100
o
C
-11
o
F
-24
o
C
50
o
to 212
o
F
10
o
to 100
o
C
Neoprene -
All purpose. Resistant to vegetable oil. Generally not affected by moderate chemicals, fats greases
and many oils and solvents. Generally attacked by strong oxidising acids, ketones, esters, nitro hydro carbons and
chlorinated aromatic hydrocarbons.
212
o
F
100
o
C
-4
o
F
-20
o
C
50
o
to 130
o
F
10
o
to 54
o
C
Santoprene® -
Injection moulded thermoplastic elastomer with no fabric layer. Long mechanical flex life.
Excellent abrasion resistance.
212
o
F
100
o
C
-10
o
F
-23
o
C
50
o
to 212
o
F
10
o
to 100
o
C
Virgin PTFE -
Chemically inert, virtually impervious. Very few chemicals are known to react chemically with
PTFE : molten alkali metals, turbulent liquid or gaseous fluorine and a few fluoro-chemicals such as chlorine
trifluoride or oxygen difluoride which readily liberate free fluorine at elevated temperatures.
356
o
F
180
o
C
32
o
F
0
o
C
50
o
to 212
o
F
10
o
to 100
o
C
FKM-
Shows good resistance to a wide range of oils and solvents : especially all alphatic, aromatic and
halogenated hydrocarbons, acids, animal and vegetable oils.
356
o
F
180
o
C
0
o
F
-18
o
C
75
o
to 212
o
F
24
o
to 100
o
C
Polypropylene -
High strength, light weight, corrosion resistant polyolefin which easily withstands most chemi-
cals, with no known solvent at room temperature.
158
o
F
70
o
C
32
o
F
0
o
C
50
o
to 140
o
F
10
o
to 60
o
C

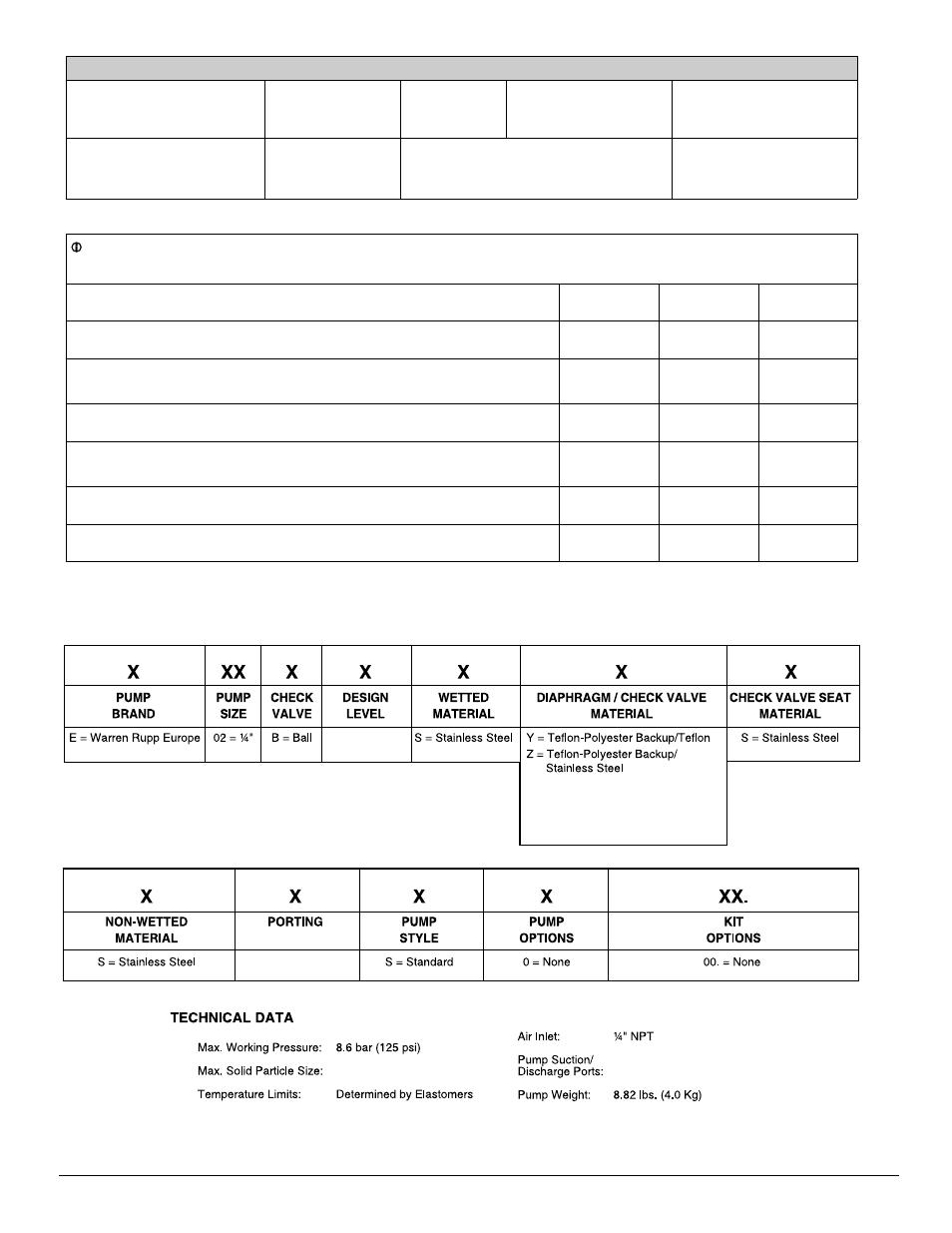

E02/X02 Metal Pump Model & Type Designations
X = ATEX Compliant
.039 (1mm)
4= 4th Design
B = BSP Parallel
¼" BSP Parallel
