• Model HDF1/HDF25

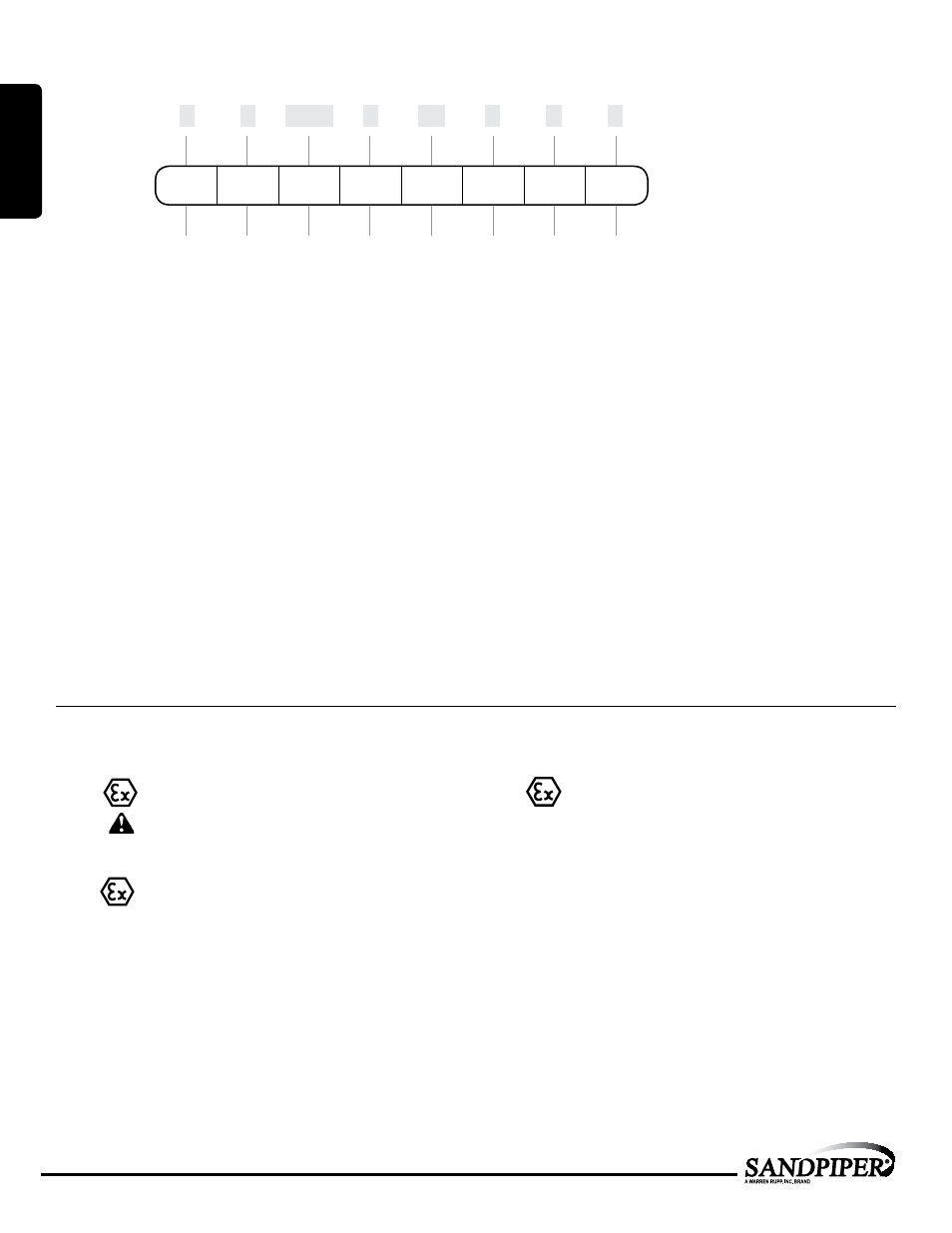

Explanation of Pump Nomenclature
ATEX Detail
Wet End Materials
B Nitrile
N Neoprene
R Hytrel
P Santoprene
V FKM
Design Level
2
Construction
A Aluminum Wetted, Aluminum Air
I Cast Iron Wetted, Aluminum Air
II Cast Iron Wetted, Cast Iron Air
SI Stainless Steel Wetted, Cast Iron Air
SS Stainless Steel Wetted, Aluminum Air
Options
P1 Intrinsically Safe ATEX Compliant
Pulse Output
Pump Series
S SANDPIPER ®
Pump Design
F Flap
Pump Size
1 1"
25 1" BSPT (Tapered Thread)
Discharge Porting Position
D Bottom
Your Serial #:
(fill in from pump nameplate)
_____________________________________
__ __ _____ __ ___ __ __ __
Pump Pump Pump
Options
Discharge Diaphragm/ Design Construction
Series Design Size Porting Valve Level
XX X XXXX, X XX X XX X Model #:
(fill in from pump
nameplate)
Your Model #:
II 1G c T5
II 3/1 G c T5
II 1D c T100°C
I M1 c
I M2 c
II 2GD T5
(1) Models equipped with Construction designations
SI or HI. Note: See ATEX Explanation of Type
Certificate
II 2G c T5
II 3/2 G c T5
II 2D c T100°C
Models equipped with Construction designations A,
SI, SS, HC, or HI. Note: See ATEX Explanation of
Type Examination Certificate
II 2GD T5
Note: Pumps ordered with the options listed in (1) to the left are
ATEX compliant when ordered with kit option P1.
II 2G Ex ia c IIC T5
II 2D c iaD 20 IP67 T100˚C
(2) II 2G Ex ia c IIC T5
II 3/2 G Ex ia c IIC T5
II 2D Ex c ia 20 IP67
T100°C
