9
Assembly

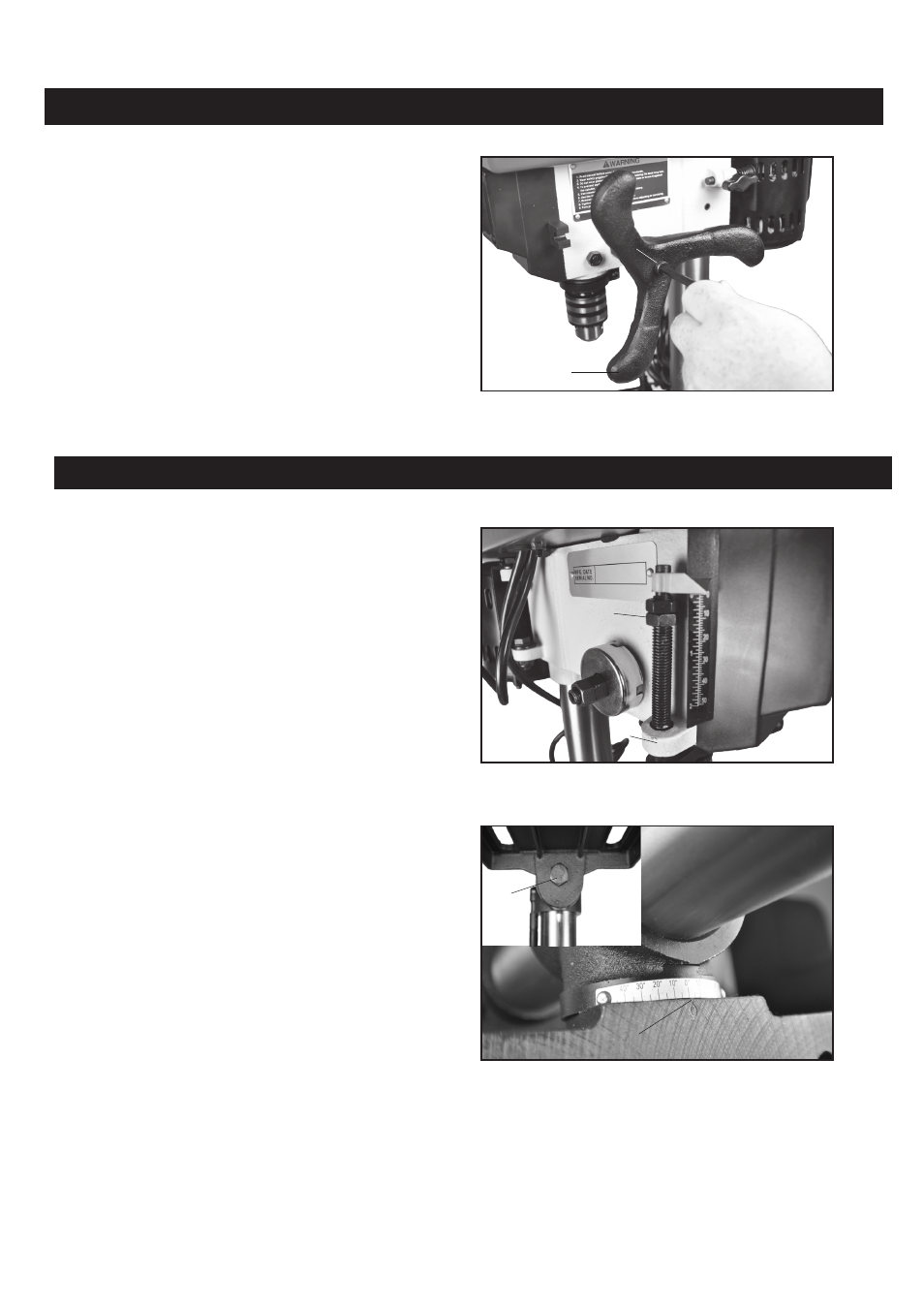

6. The feed handle (A-Fig.06) is secured to the
feed shaft with the supplied Allen bolt
(B-Fig.06).
Fig.06
A
B
7. Depth Stop: The depth stop and scale are
found on the left side of the switch box. To
adjust, lower the drill chuck until pointer shows
desired depth on the scale . Loosen the
lower nut on the threaded shaft (A-Fig.07) until
it bottoms out on the head casting (B-Fig.07).
Tighten upper nut against the lower nut to
retain the adjustment.
Fig.07
A
B
8. Table Tilt: The drill press table will tilt 0-45
degrees left and right. To tilt, loosen the nut
located under the table (A-Fig.08). Align the
“zero” mark on the table (B-Fig.08) to the
desired degree marking on the scale. Tighten
the nut under the table to retain the
adjustment.
Fig.08
Adjustments
A
B
