5.1. ON/OFF SWITCH (Fig.13)
· To switch ON = press green switch button.
· To switch OFF = close cover or press red switch button.
· To unlock the switch cover push the pin on the stop cover.
5.2 SURFACE PLANER MODE:
- The workpiece rests on top of the infeed table.
- The workpiece is cut on the underside.
- The feed direction of the workpiece is exactly opposite than
when thickness planing.
Workpiece dimensions
- Length: use a push stick to feed workpieces shorter than 12" ;
for workpieces over 60" use support rollers.
- Width: max. 12".
- Thickness: min. 1/4".
Note: The max. depth of cut for a single pass is 1/8".
1. Assume proper operating position:
position yourself to one side of the infeed table.
2. Set jointer fence as required.
3. Set planing thickness.
4. Place workpiece against jointer fence .
5. Adjust cutterhead cover:
- when planing narrow edges (jointing) or workpieces more than
3" thick:
Set cutterhead guard from the side against the workpiece
(Fig16).
5. Operating Procedures
A

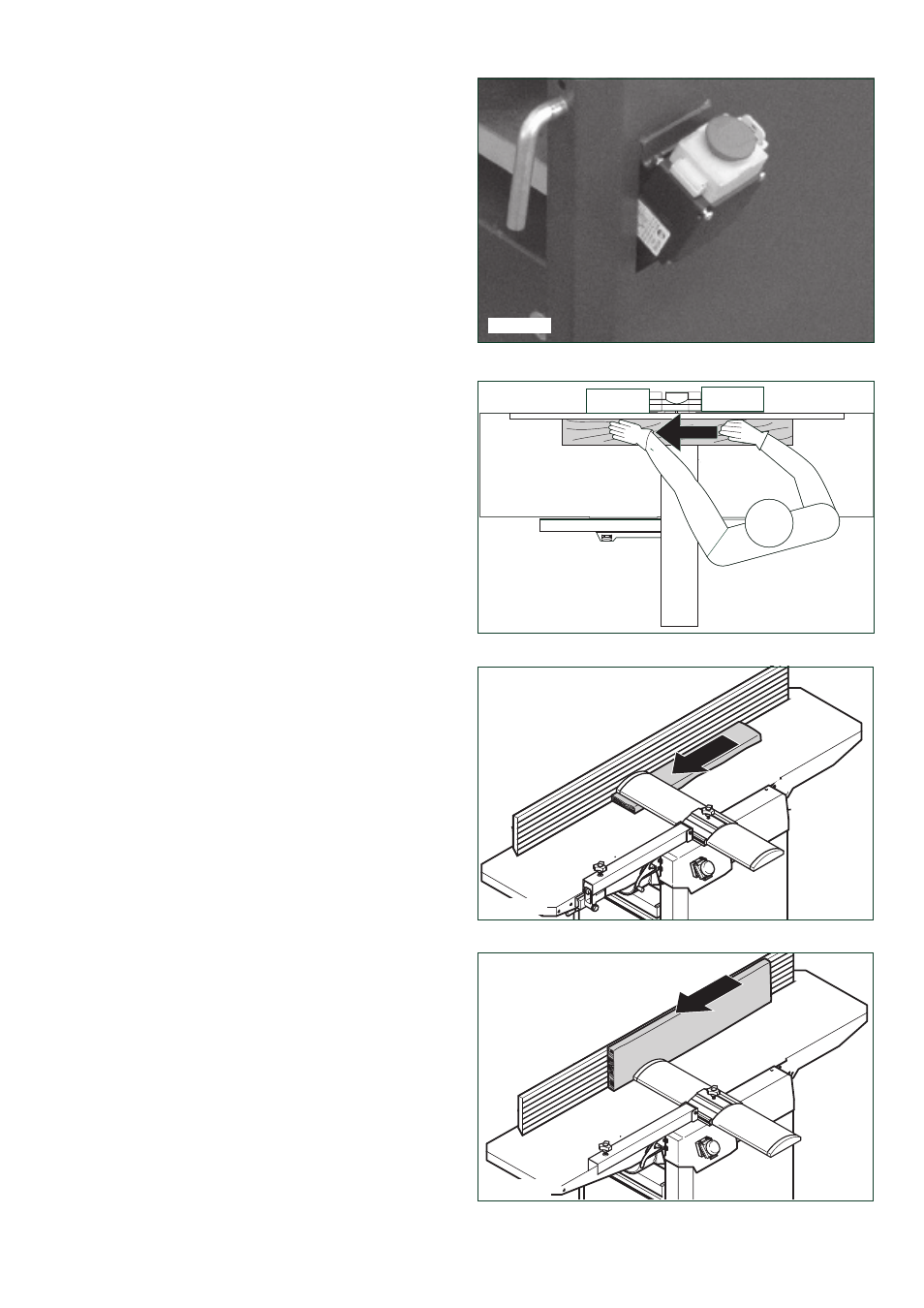

FIG. 13
FIG. 14
FIG. 15
FIG. 16
