B. Saw-blade with pins (Fig . 08 )

B-1 Saw blade removal

• Extract the saw-blade by fi rst unscrewing the tight-

ening screw (2).

• Remove the saw-blade from the upper and lower

support by

slightly pressing the saw’s upper arm down (5).

B-2 Inserting the saw-blade

• Lead one end of the saw-blade through the perfora-

tion

in the table and insert the saw-blade pins into the

notch.

Repeat this procedure at the upper blade support.

• Before hooking it in, slightly press the saw’s upper

arm down (5)

• Check the position of the blade pins at the supports

(6).

• Tighten the blade by means of the tightening screw

(2).

Check the blade’s tightness.

Keep on rotating clockwise in order to tighten the

blade even more.

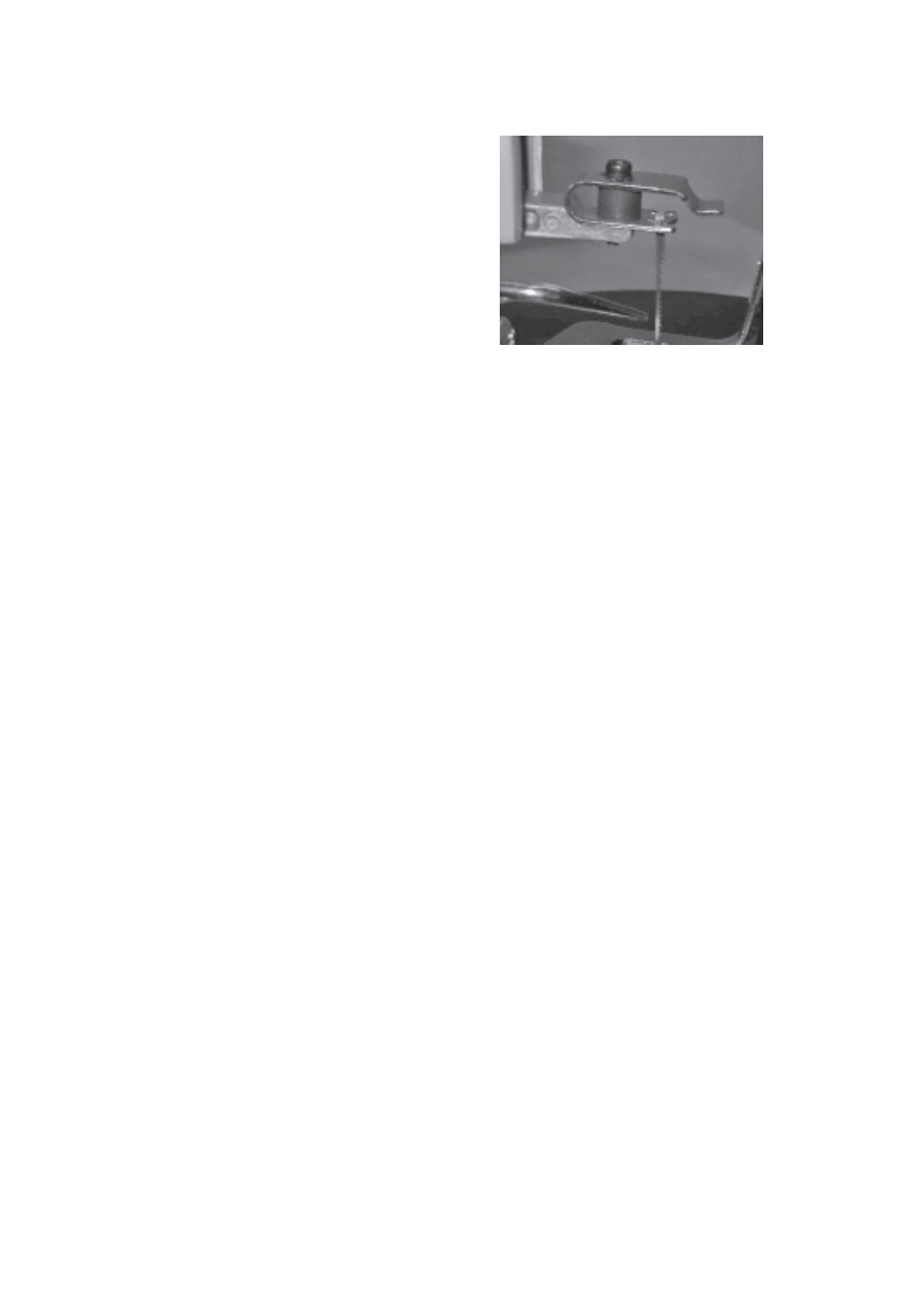

Fig. 08
