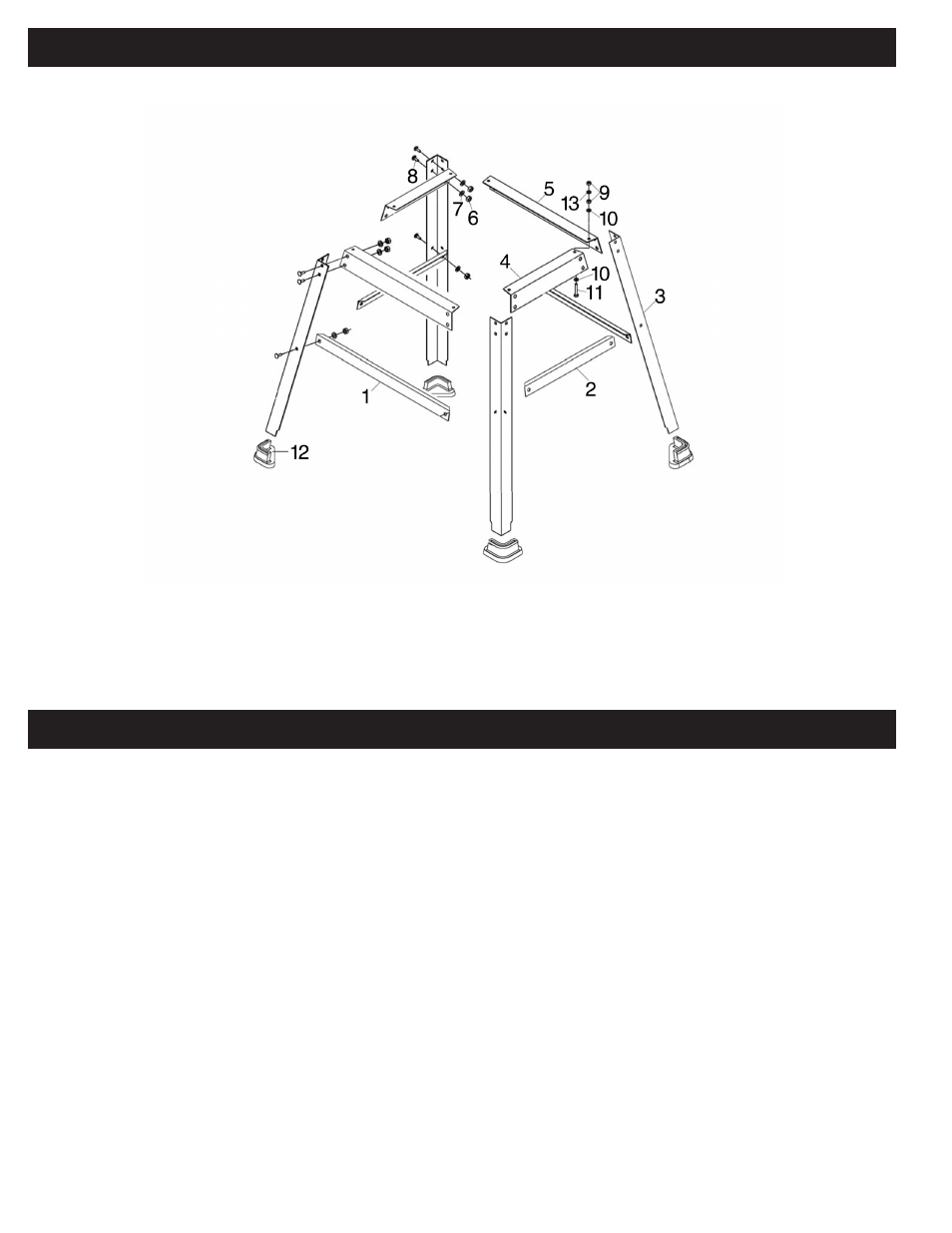

PARTES DIAGRAMA 1

Listas de piezas 1

KEY NO.

1S

2S

3S

4S

5S

6S

7S

8S

9S

10S

11S

12S

13S

MFG. PART NO.
1-JL21050004-001Z

1-JL21050005-001Z

1-JL21050001-001Z

1-JL21050003-001Z

1-JL21050002-001Z

1-NUT5/16B

1-WSH8GB97D1B

1-NEC5/16X5/8B

1-NUT1/4B

1-WSH6GB96B

1-HEX1/4X1 1/2B

1-JL40060005

1-WSH6GB97D1B

DESCRIPCIÓN
Haz Frente

Haz Lado

Pierna

Panel Lateral

Panel Frontal

Tuerca Hexagonal

Arandela

Tornillo Hexagonal

Tuerca Hexagonal

Arandela

Tornillo Hexagonal

Calzado de Goma

Arandela de tipo resorte
