Rhino Shelter ROUND-14W X 36L X 15H - Manual (Page 2)

Assembly Instructions 14x36x15 Round RV/Boat
16 CSU-5020 Center Straight Uprights
4 CW-2800 Corner Wind Brace
56 SCR-5030 Swedged Side/Base Cross Rails
7 ECR-5031 End Cross Poles – plain ends
8 TB-3004 Turnbuckles
70 CBN-3005-4 Carriage Bolts – 4 3/8”
70 CBN-3005-N 9/16” Nuts
62 CBN-3005-WC Washers – 3/8” Cupped
8 CBN-3000-WF Washers – 3/8” Flat
2 R-3003 3/16” Rope
14 DBA-3000 Earth Cable Anchors
14 UB-3002 U Bolts with Nuts
1 DR-3001 36” Drive Rod for Anchors
4 EP-1000 1-5/8” Plastic End Plugs
14 EP-1001 1” Plastic End Plugs
Note: All Side and Base Ridge Poles MUST be
on Inside of Arch Frame Members. Top Ridge
Poles MUST be on Outside of Arch Frame
members, except at Ends. See Frame
Plain end of Tapered Cross Rail should fasten
under the end Top Crest arch and the Tapered End
above middle Top Crest arch
Swedged
Side Cross
Rail Poles
SCR-5030
Interior Arches
V2.2
Please Do NOT Return Assembly to Dealer or Store. For All Assembly Questions or Shortages Please Call MDM Products directly
Customer Service 800-447-7079 or 203-877-7070
2

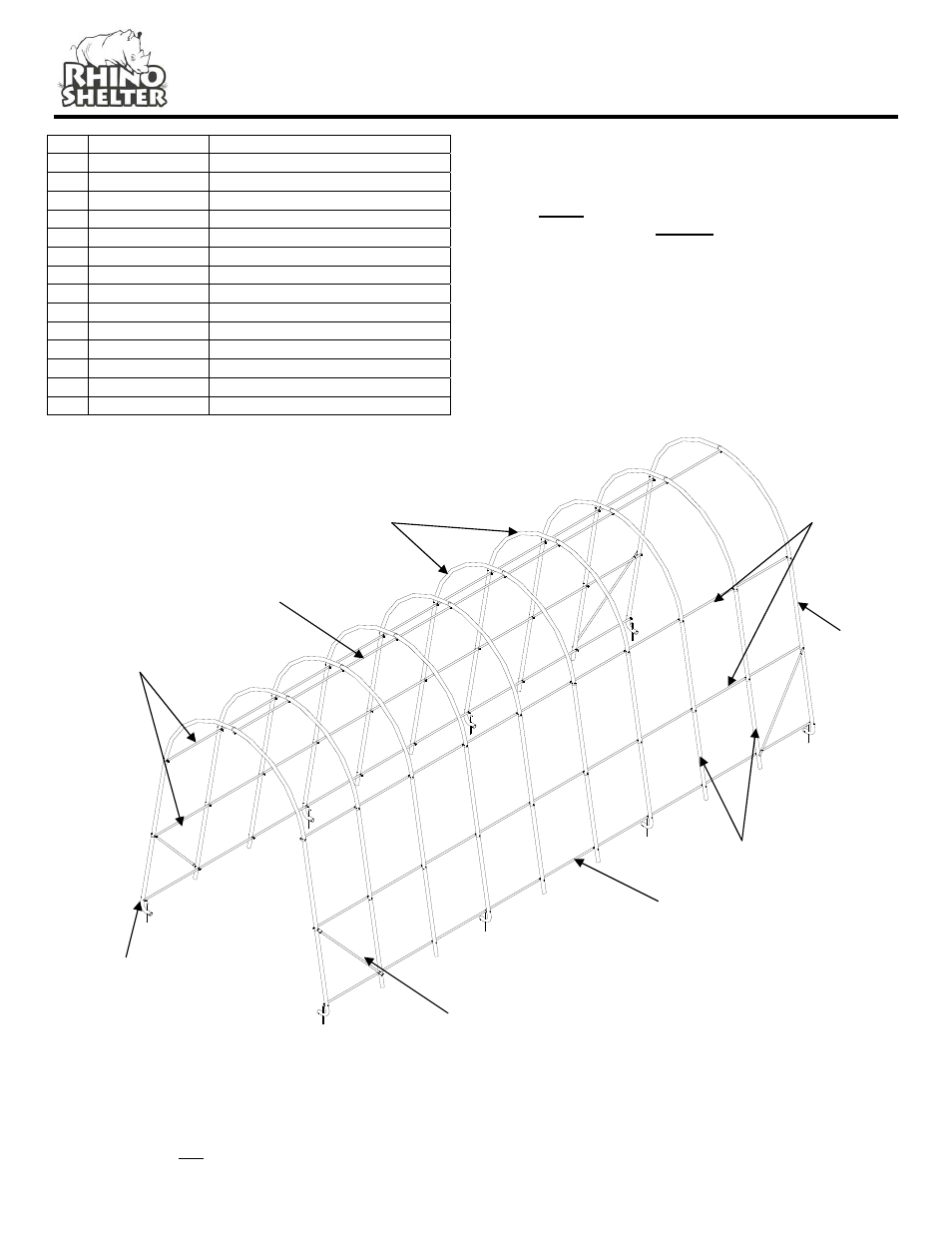

End Arch with
Foot
EUL-5021
Top Cross Rails
SCR-5030
Base Cross Rails
SCR-5030
Corner Wind Brace
CW-2800
Center Straight Uprights
CSU-5020
Mid
Connect
Tube Plain Cross Rails
ECR-5031
MC-9000
