USING YOUR
POWER NOZZLE
Use the Power Nozzle
and RainbowMate for
dry pick-up only. To
avoid risk of electrical
shock, NEVER pick up
water or any other fl uids
with the Power Nozzle or
RainbowMate.

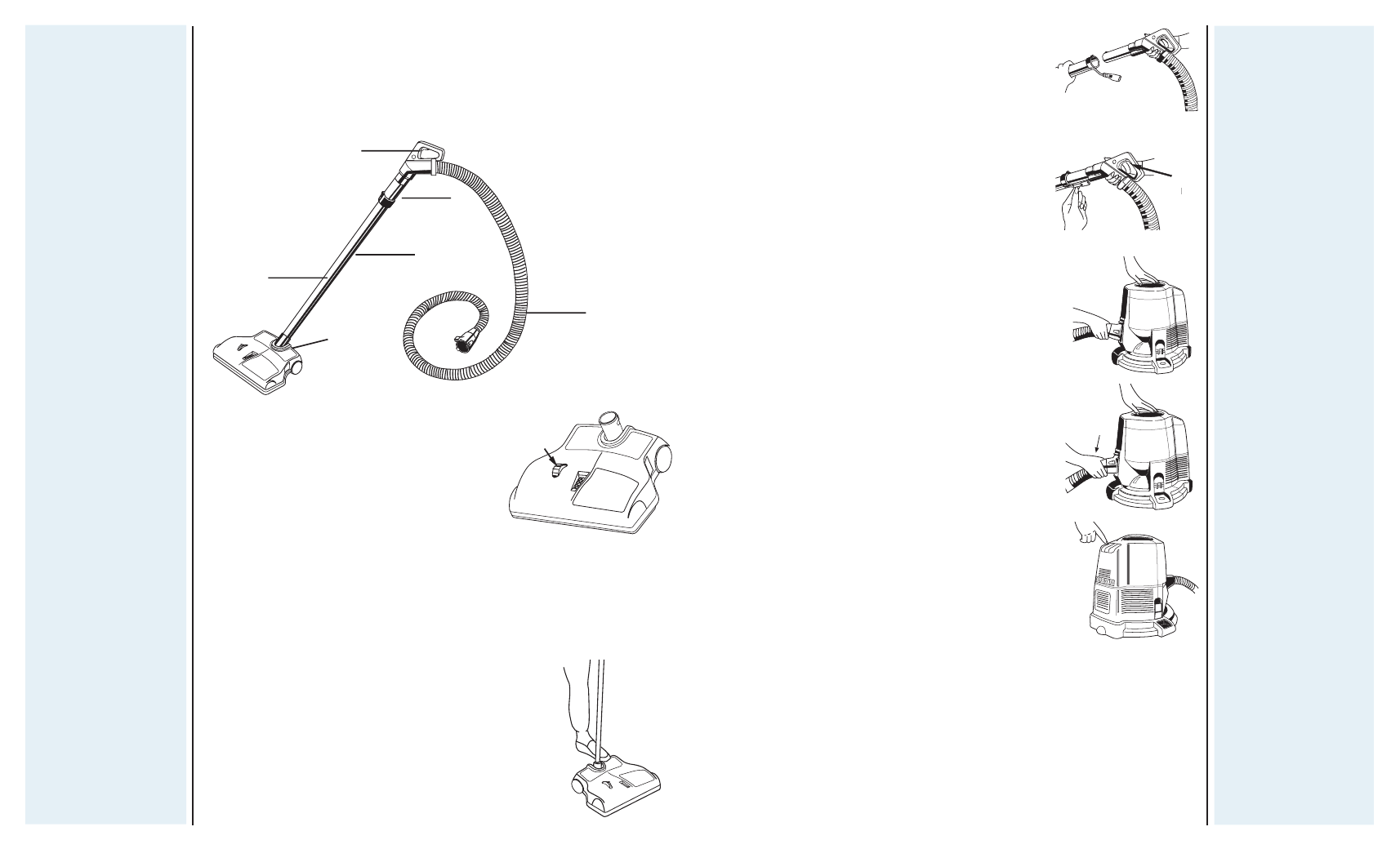

1 Switch Actuator
2 Electric Cord
3 Straight Wand
4 Cord Channel
5 Pivot Arm
6 Electrifi ed Hose
3
ASSEMBLY:
1 Push straight wand into pivot arm of the motorized powerhead unit.
2 Insert the electric cord into the long cord channel guide on straight wand by
pressing the cord into channel guide with thumb.
3 Leave a bit of slack in the lower cord at the base of the straight wand (and pivot
arm) to enable the handle to be raised and lowered.
4
1 OPERATING THE POWER NOZZLE:
Hold the Power Nozzle. Squeeze the switch
actuator and slowly guide the Power Nozzle
back and forth in smooth and easy strokes. Let
the Power Nozzle and the Rainbow Cleaner do
the work.
Adjust The Power Nozzle For Proper Height
The Power Nozzle has a three-position height
adjustment to meet virtually any carpet cleaning
need. The HEIGHT adjustment is made by
turning the three-position thumb wheel located on the top side of the Power Nozzle
to the desired selection.
LOW: For most carpets and rugs.
MEDIUM: For plusher carpeting where Power Nozzle may drag.
HIGH: For very deep pile carpeting and special applications.
2 LOCK POWER NOZZLE IN UPRIGHT POSITION:
To lock the Power Nozzle wand in the upright position,
place left foot on top of the Power Nozzle. Grasp the
straight Power Nozzle wand and push forward until the
wand is fully engaged in the locking tabs. To disengage
the Power Nozzle wand, follow these same steps in the
reverse order.
HEIGHT
ADJUSTMENT
5
1
3
6
2
1 CONNECTING POWER NOZZLE WAND AND
ELECTRIFIED HOSE HANDLE: Insert the short metal
wand of the Rainbow handle on the electrifi ed hose
into the long metal wand of the Power Nozzle. Align
the button lock on the short wand with the guide on the
Power Nozzle wand. Slide the button into the guide to
engage the lock. When button lock engages, connection
is secure.
SWITCH
ACTUATO ACTUA ACTUA R
2 MAKING THE ELECTRICAL CONNECTION: Holding
hose fi rmly (do not grip Rainbow handle switch
actuator), plug the Power Nozzle electric cord into the
receptacle on the underside of the Rainbow handle.
3 CONNECTING ELECTRIFIED HOSE TO POWER UNIT:
Attach the electrifi ed hose to the front of the power unit
at the air inlet opening. Insert the coupling end into the
air inlet opening, open the receptacle door by lifting up
with the top of the hose coupling, and press the coupling
into the machine until both latches have snapped into
place. This will complete the electrical connection to
the machine.
SERVICE INFORMATION: PLEASE READ VERY CAREFULLY.
The performance of your new cleaner greatly depends upon home maintenance. The
instructions given in this booklet will guide you in performing simple home maintenance.
To obtain the most satisfying years of service, read through these instructions and keep
them handy for future reference.
• Never pick up hard or sharp objects with the Rainbow. Items such as pins, hairpins,
tacks, crayons, and pencil stubs may damage the brush roll or break a belt.
• DO NOT OIL MOTOR. The motor is permanently lubricated and sealed.
• Use Power Nozzle on carpeting and/or large fl oor rugs only.
• DO NOT USE ON BARE OR HARDWOOD FLOORS.
• Use on dry surfaces only. Do not use outdoors or on wet surfaces.
4 ENERGIZING THE POWER NOZZLE: With the
electrical connections made, the power unit master
switch will energize both the power unit and the Power
Nozzle. However, the power unit will not activate the
power nozzle brush roll. The switch actuator in the
Rainbow handle must be actuated to operate the Power
Nozzle. To remove the electrifi ed hose from the power
unit, squeeze coupling side latches and pull hose from
intake opening.
5 After the electrical connections are made, push the ON/
OFF switch on the Rainbow to the “high-speed” setting
(>>) to operate both the Rainbow and the motorized
Power Nozzle. The switch in the electrifi ed hose handle
will operate the Power Nozzle only. To remove the
electrifi ed hose from the lower unit, squeeze coupling
side latches and pull hose from intake opening.
ELECTRIFIED
HOSE
WARNING:
The electrifi ed hose
contains electric wires.
To reduce the risk of
electric shock: Do not
immerse. Do not use or
repair a damaged hose.
Use only on carpet
moistened by cleaning
process.
4
