Nature Power 60 LED Solar Security Light (22050) - Manual (Page 3)

Version 1.1
Operation
1. Located on the front of the light there is a switch with 3 positions. (8) Fig 4.
a. ‘Auto’ – When the switch is in the ‘Auto’ position the 60 LED Solar Security Light will turn on
automatically at night once motion is detected
b. ‘On’ – When the switch is in the ‘On’ position the light will remain on and can be used as a
regular light.
c. ‘Off’ - When the switch is in the ‘Off’ position the light will remain off and will not detect any
movement.
2. Allow 60 LED Solar Security Light to charge for at least 3 days with the switch in the ‘Off’ position.

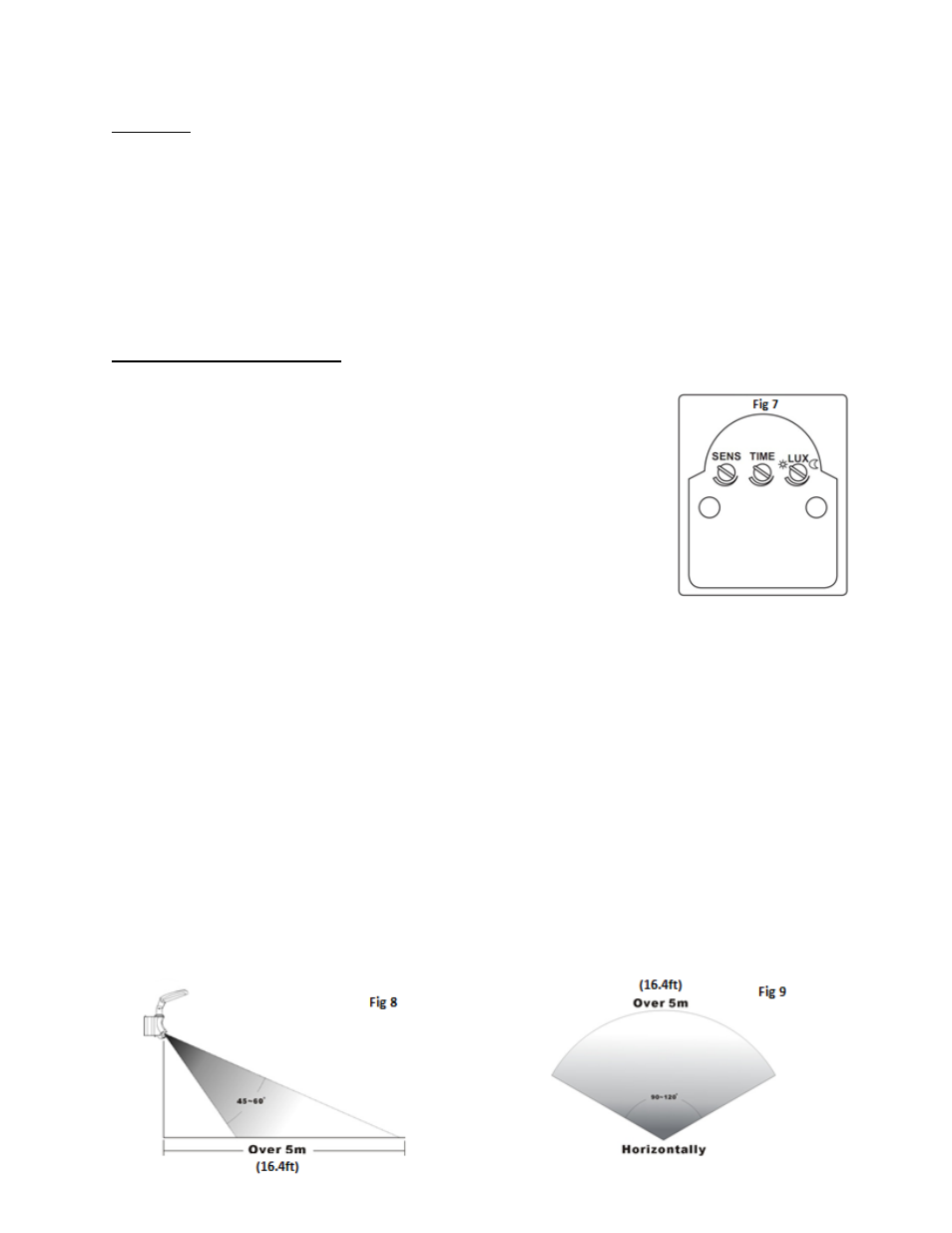

How to use Control Dials (See Fig 7)
The 60 LED Solar Security Light has 3 different control dials which allow you to adjust
the settings.

Sensitivity to Light (Lux)

The lights duration once motion has been detected (Time)

Sensitivity to motion (Sens)
Lux

This is the level of darkness reached before the light turns on

If set to maximum level the light will turn on in most situations ranging from
dusk to daylight.

If set to minimum the sensor will only trigger when it’s dark. This is the most ideal position for general
evening and night operation.
Time

The Time adjusting dial will set the duration of time the light will stay illuminated for after motion has
been detected.

The time can be adjusted from 8 seconds up to 2 minutes.

Rotating the dial clockwise will extend the time the lamp is illuminated.
Sens

This determines the range of the motion detector

Mid Position – Normal Setting

Maximum position – Maximises sensors range (5 Meters [16.4ft]). (Fig 8 and 9)
