4. Location of Part/Components
1
2 8
9
10
11
13
14
12
3
4
5
6
7

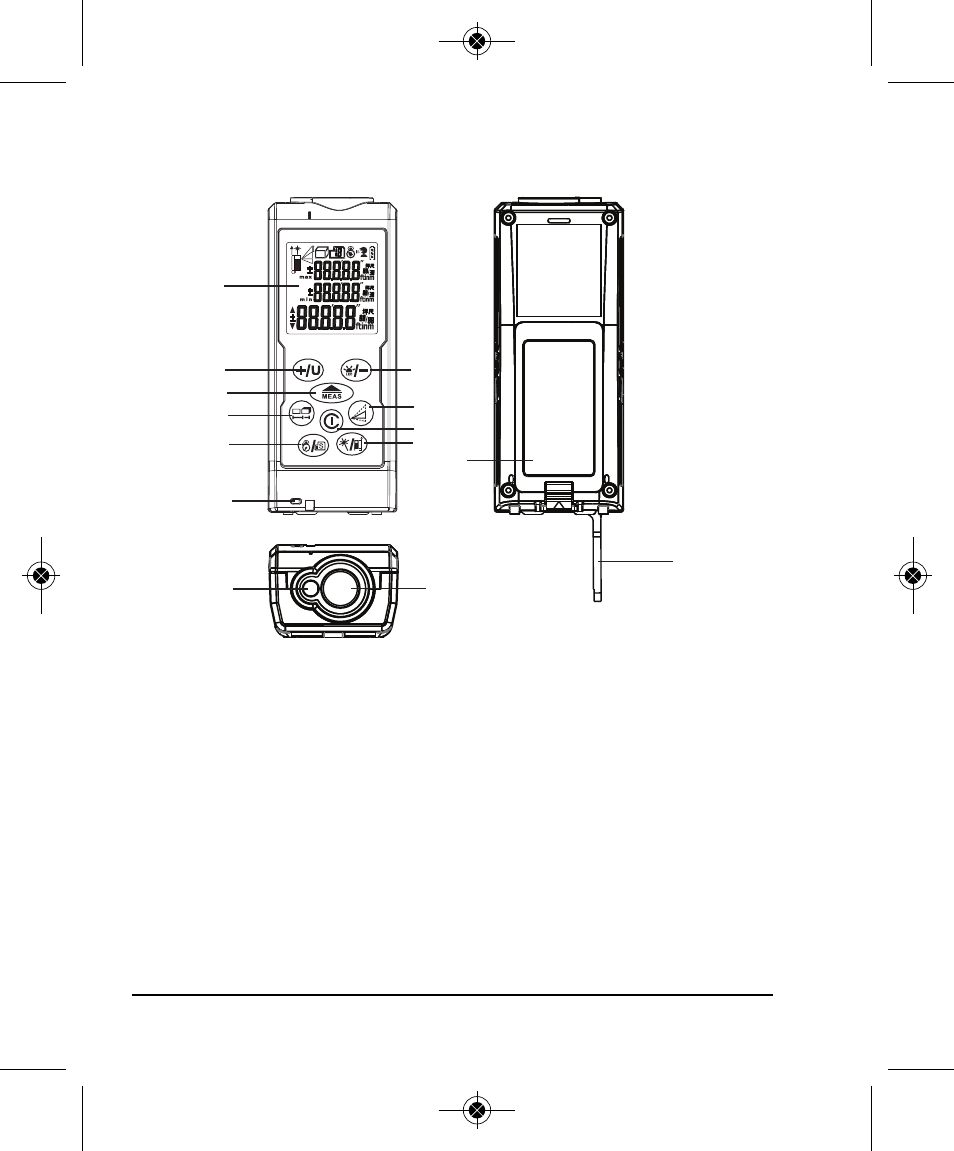

1. LCD Display
2. Add/Unit of Measure
3. Measure Button
4. Measure Function
Area
Volume
Stake-Out
5. Countdown Measure/
Memory Recall
6. Wrist Strap Bracket
7. Laser Emitting Window
8. Subtract/Back-Light
9. Indirect Measurement/Pythagoras
10. Power Button/Clear/Escape
11. Measuring Reference Position/
Continuous Laser Mode
12. Receiver Window
13. Battery Cover
14. Corner Measurement
Extension Piece
