7. Using the Product
This base was specially designed for more extensive adaptability of
the laser. The base can be connected to a standard 5/8"-11 tripod.
The laser can be connected to a 1/4" – 20 tripod. With the use of the
base, the laser can be rotated, hung on a wall, attached to a metal
plate, or strapped to a column or pipe.
1. Install the laser on the base by rotating the connecting knob
counter-clockwise.
2. The laser can be rotated on the base.
3. The laser can be hung on a wall with a nail or screw.

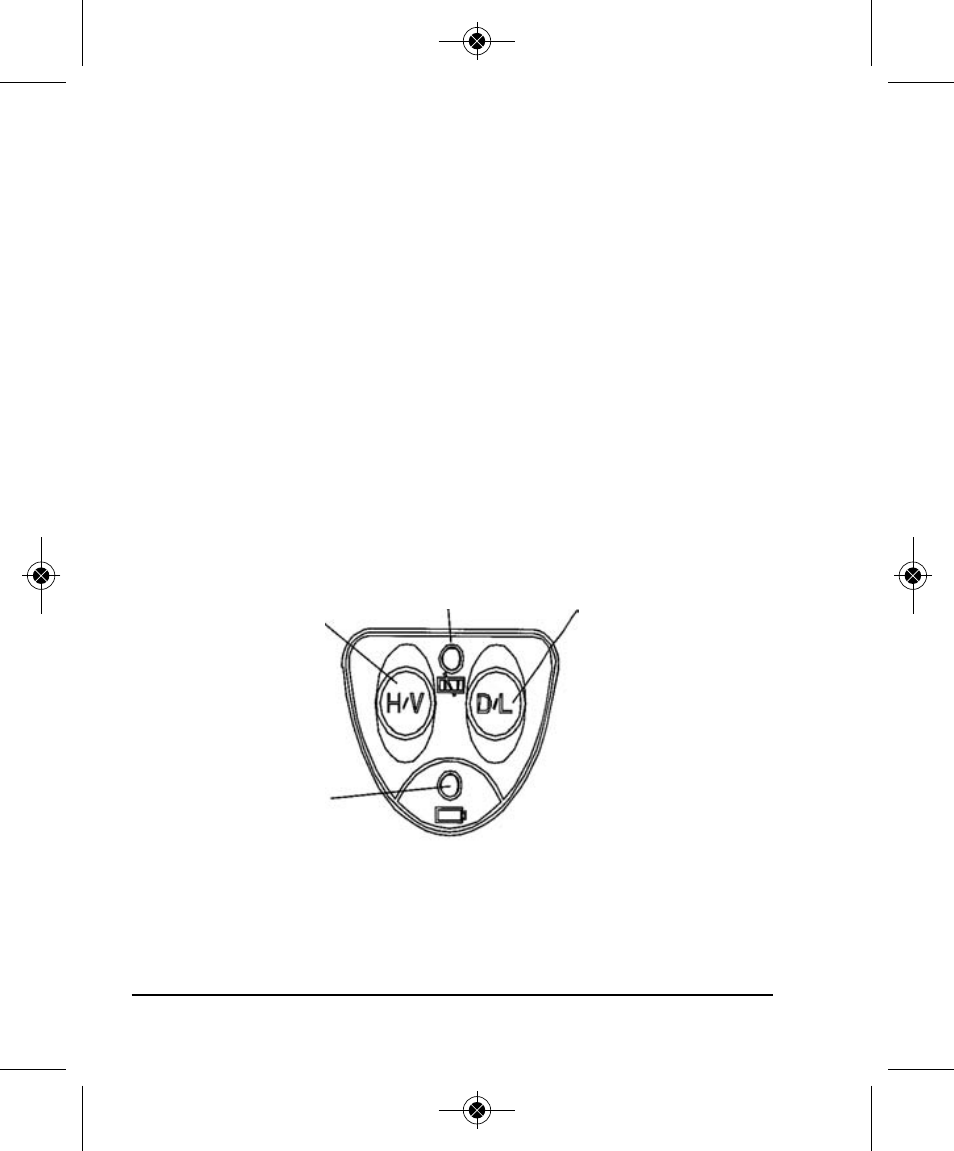

Operating Instructions
Dot or Line
Control Button
Manual Mode LED
Power LED
Horizontal Line,
Vertical Line,
Manual Mode
Control Button
Power LED
LED is on: power is on
LED is off: power is off
LED is flashing: low voltage
