Johnson Level & Tool Mfg. 40-6535 User Manual
Page 14

14
©2007 Johnson Level & Tool
Adjust laser beam to reference position

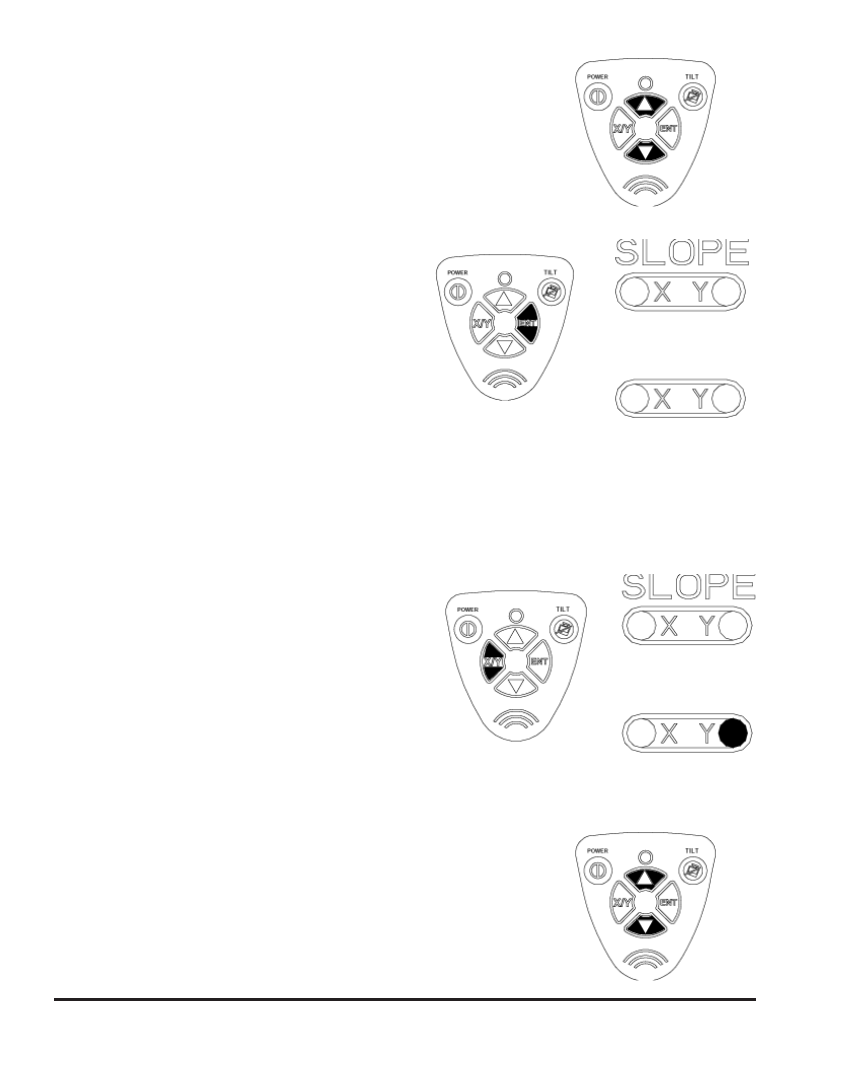

Press the up/down arrow buttons on the remote con-
trol to adjust the laser beam to reference position.
Confirm calibration value
Press ‘ENT’ button on the remote
control to confirm self-calibration
value. The X direction self-cali-
bration indicator light will extin-
guish after pressing this button.
Y Direction Self-calibration
Select Self-calibration Direction
Make Y direction of the instrument face to the reference line at first, and
press X/Y button on the remote
control twice to select Y direction
for self-calibration. The Y direction
indicator light in “CALIBRATOR”
area of the instrument keypad will
light up and the rotator head
begins to rotate.
Adjust laser beam to reference position
Press the up/down arrow buttons on the remote
control to adjust the laser beam to reference
position.
