Speed Adjustment
After unit electronically self-levels, it rotates at its highest speed

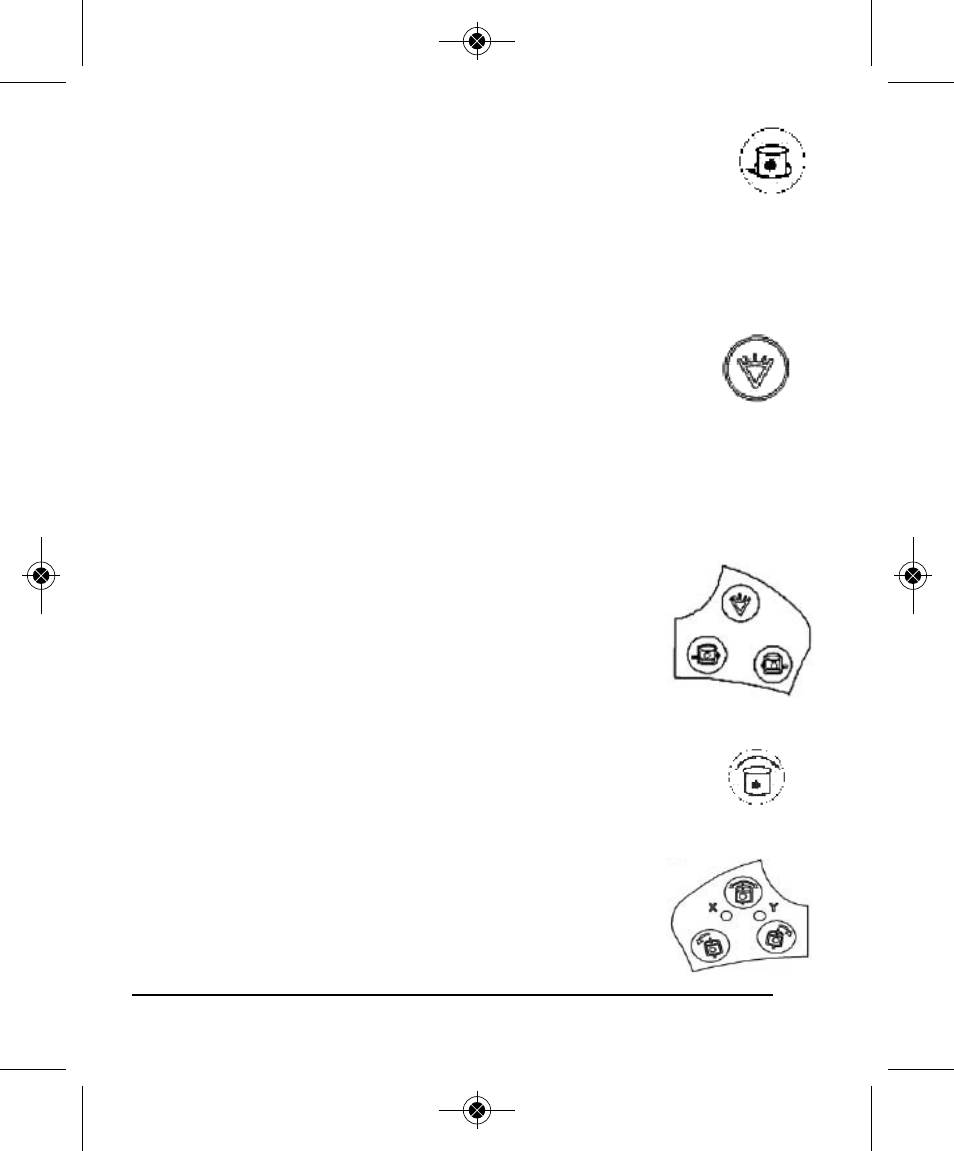

(500rpm). Press the speed adjustment button (see figure) on
either the laser keypad or remote to change the rotating speed to its
low speed (200rpm).
Note: During the self-leveling sequence, this key is not functional.
Scan Mode
1. Press the scan mode button (see figure) on either the laser
keypad or remote to activate scan mode.
2. With the second press of this button, the unit emits a shorter
bright laser line.
3. With the third press of this button, the unit emits a bright laser point.
4. To return to rotating, press the speed adjustment button.
Rotating the Scan Line
1. Press the clockwise button on either the laser keypad
or remote and the scan line moves to the right.
2. Press the counter-clockwise button and the scan line
moves to the left.
Slope Mode
1. Press the slope mode button once (see figure) on either the
laser keypad or remote to enter into the X-direction slope
mode. This will put the laser into dual axis slope mode and
the self-leveling motors will be turned off.
- Press the button pointing to the left to shift the
slope angle to the left.
- Press the button pointing to the right to shift the
slope angle to the right.
