14

©2010 Johnson Level & Tool - Rev. 1

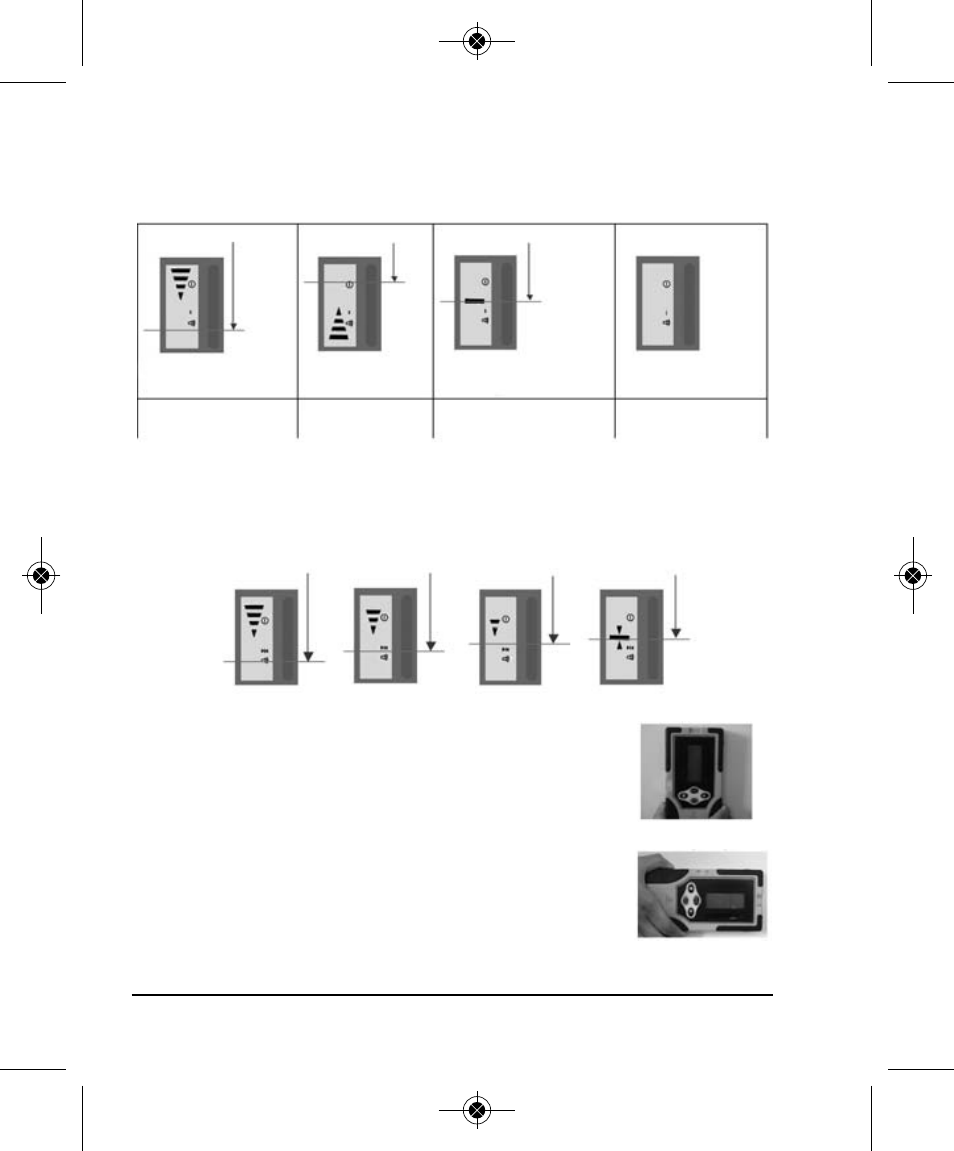

Detecting Laser Level Signals

While detecting laser signals, the LCD will display as follows: (take
the set-up state of high sound and fine detection as an example)

When the laser signal is near the on-grade mark, the displayed up

and down arrows will decrease as the distance to the on-grade
mark decreases.

1. When detecting a horizontal laser signal, it is

important to have the bubble vial centered, as the
deflection of the receiver will influence its receiving
accuracy.

2. When detecting a vertical laser signal, it is

important to have the bubble vial centered, as the
deflection of the receiver will influence its receiving
accuracy.

Laser signal

The laser signal is down

Sound: rapid short beeps

Laser signal

The laser signal is up

Sound: slow short beeps

Laser signal

Horizontal bar indicated on-grade

Sound: continuous sound

No laser signal is detected

Sound: no sound

Laser signal

Laser signal

Laser signal

Laser signal

3180H_Manuals 2/12/10 11:13 AM Page 14
