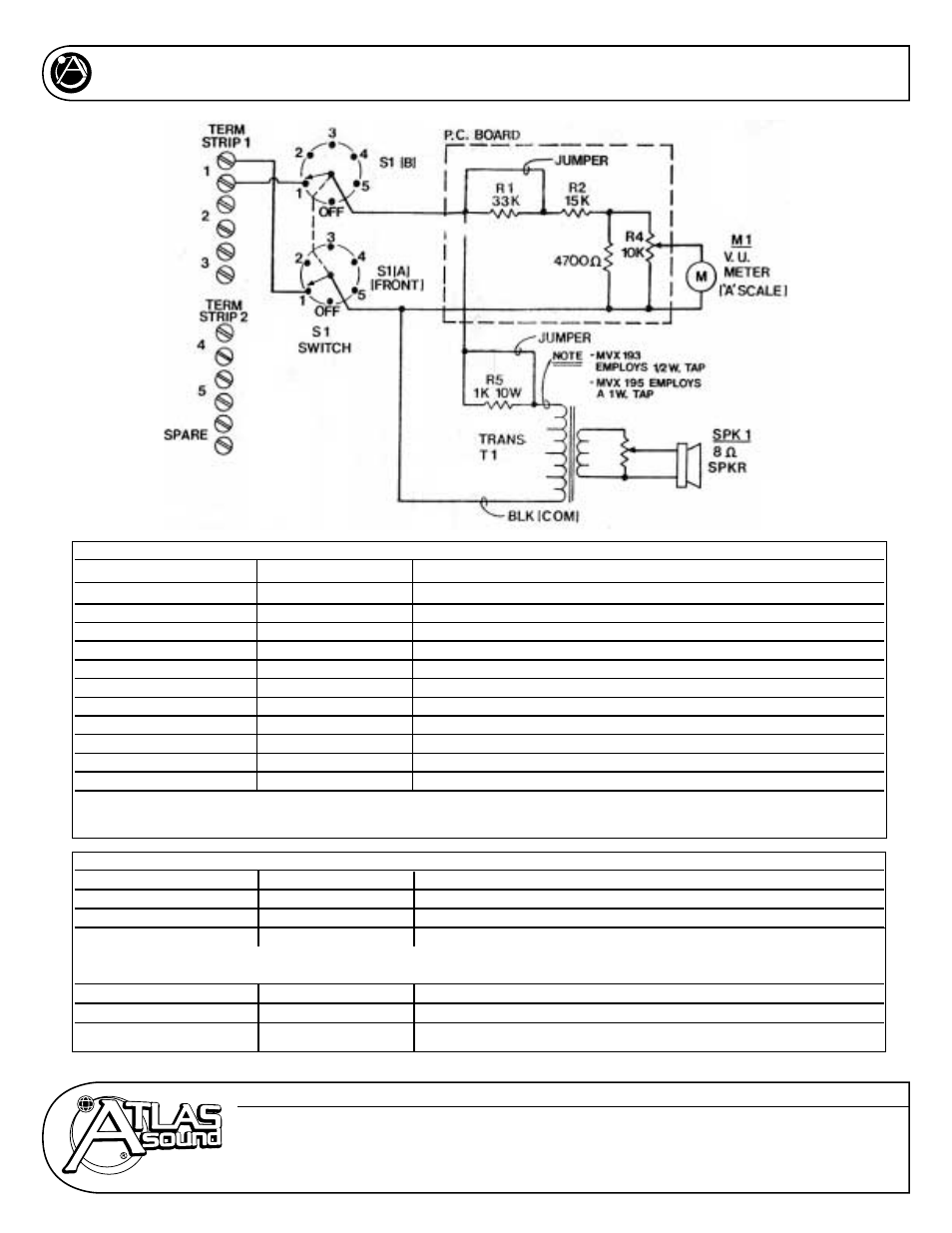

INSTALLATION INSTRUCTIONS
MVX-193, MVX-195
MONITOR PANELS
PARTS LIST
REFERENCE P/N DESCRIPTION
R1 110591 RESISTOR 33K, 1/2W 10%
R2 110671 RESISTOR 15K, 1/2W 10%
R3 110485 RESISTOR 4.7K, 1/2W 10%
R4 121274 TRIM POT 10K
R5 110663 RESISTOR 1K, 1/2W 10%
R6 142239 POT 50 OHM 3W 20%
M1 125521 VU METER (A SCALE)
100471 PC BOARD FOR VU METER. INCLUDES R1 THRU R4
S1 121541 ROTARY SWITCH, 2 POLE 6 POSITION
TS1, TS2 111678 SCREW TERM. STRIP, 6 POINT
120456 KNOB, BLACK W/ALUM. INLAY
The following parts are dependent on the model number of the monitor panel
SPEAKER (SPK1)
REFERENCE P/N DESCRIPTION
MVX-193 125512 3" 8 OHM
MVX-195 FC104 4" 8 OHM
TRANSFORMER (T1)
REFERENCE P/N DESCRIPTION
MVX-193 LT-25 5 WATT 25 VOLT TRANSFORMER
MVX-195 HT-82 8 WATT 25 VOLT TRANSFORMER
