RCK-18/25/30-CASTERS,
CABINETS, 100/200/500 SERIES

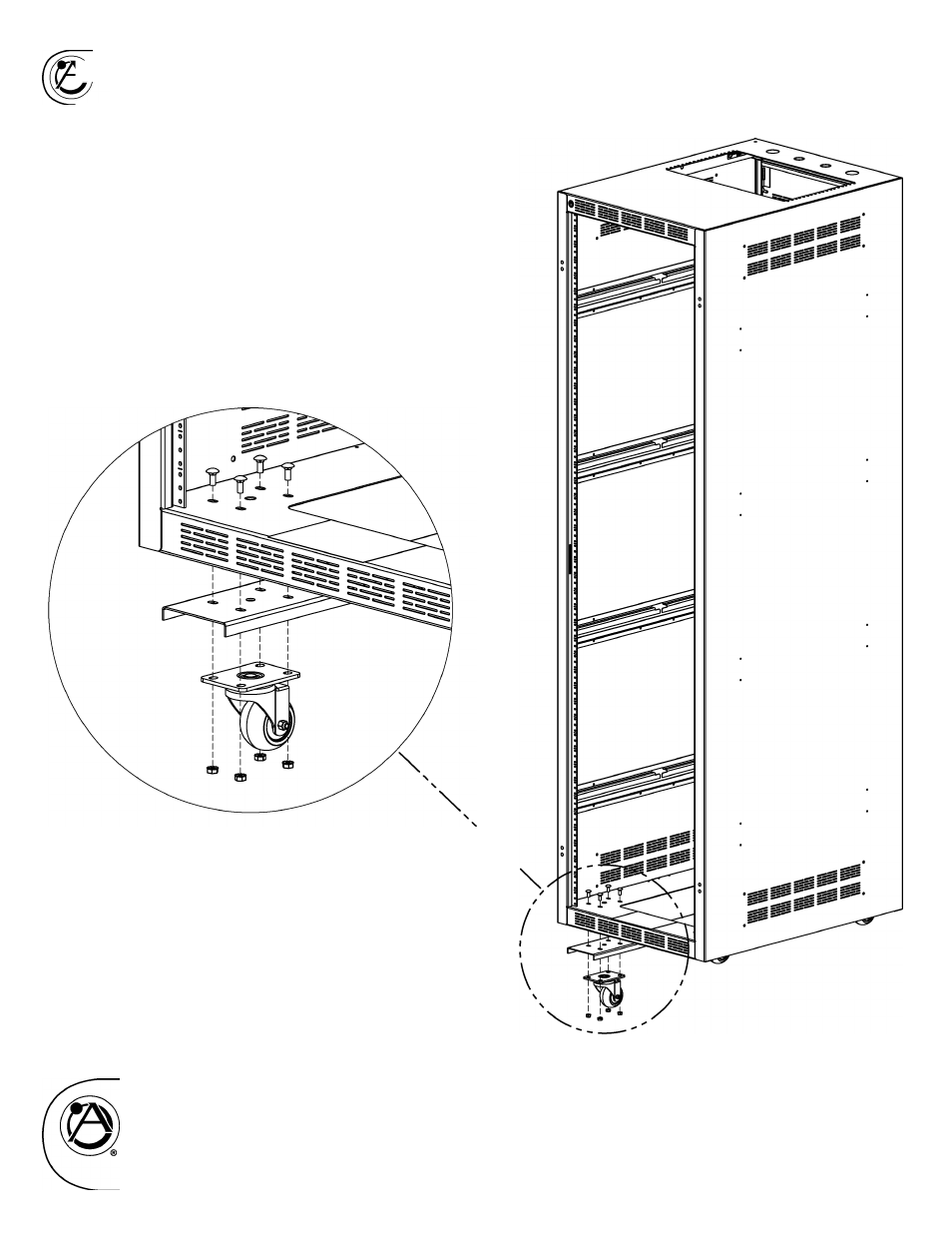

INSTALLATION NOTES:
1. THE 1/4-20 CARRIAGE BOLTS GET INSTALLED FROM THE
INSIDE OF THE CABINET.
2. THE BRACKETS AND CASTERS MOUNT UNDERNEATH THE
CABINET WITH THE BRACKET FLANGES FACING DOWN.
THE BRACKETS ARE DESIGNED TO EXTEND FROM THE
FRONT OF THE CABINET TO THE REAR OF THE CABINET.
\
