Wiring, Preparing captive wires, Wiring guidelines – AMX Mio Modero Classic User Manual

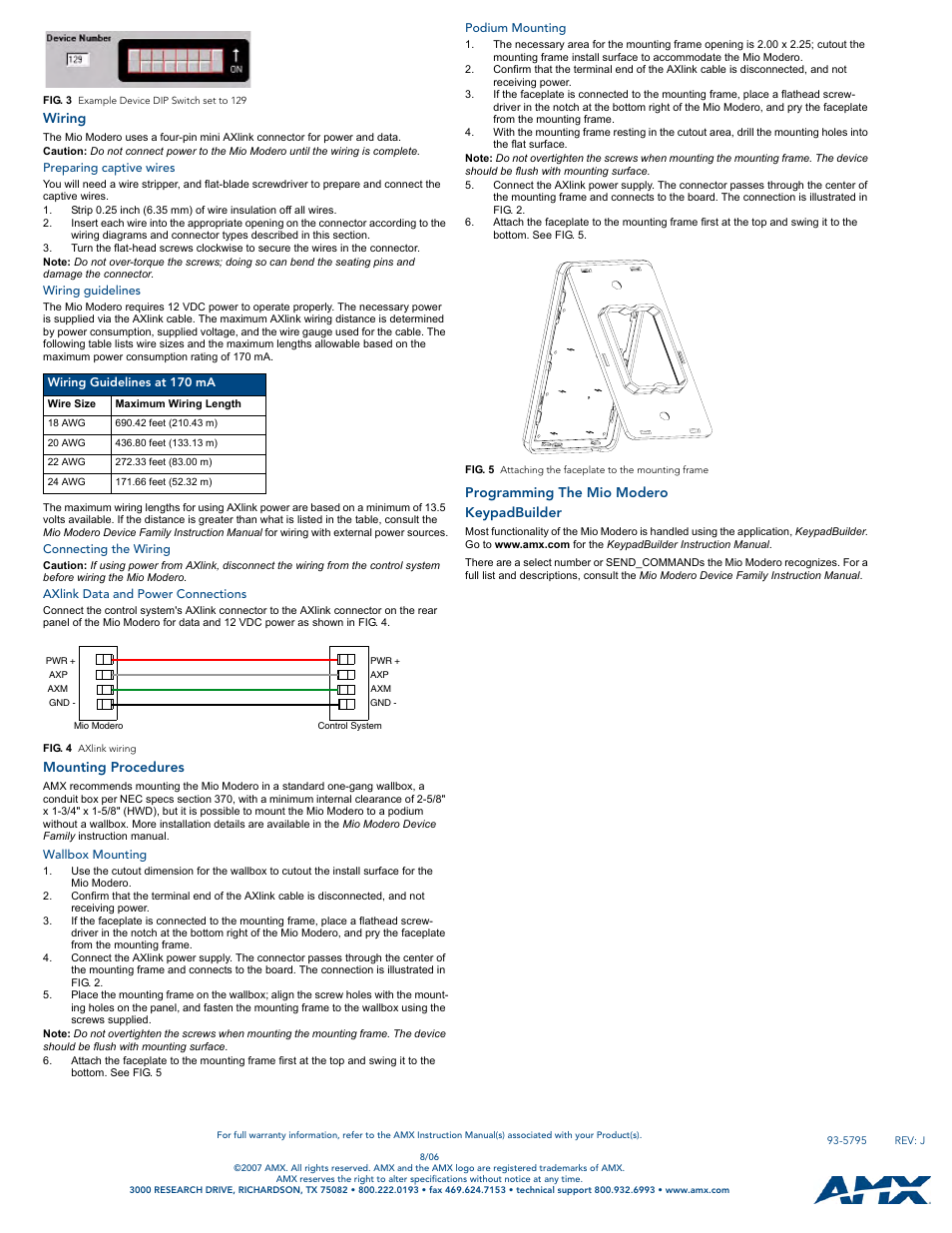

Page 2: Connecting the wiring, Axlink data and power connections, Mounting procedures, Wallbox mounting, Podium mounting, Programming the mio modero, Keypadbuilder
