■ chapter 4 upgrading your computer

4-12

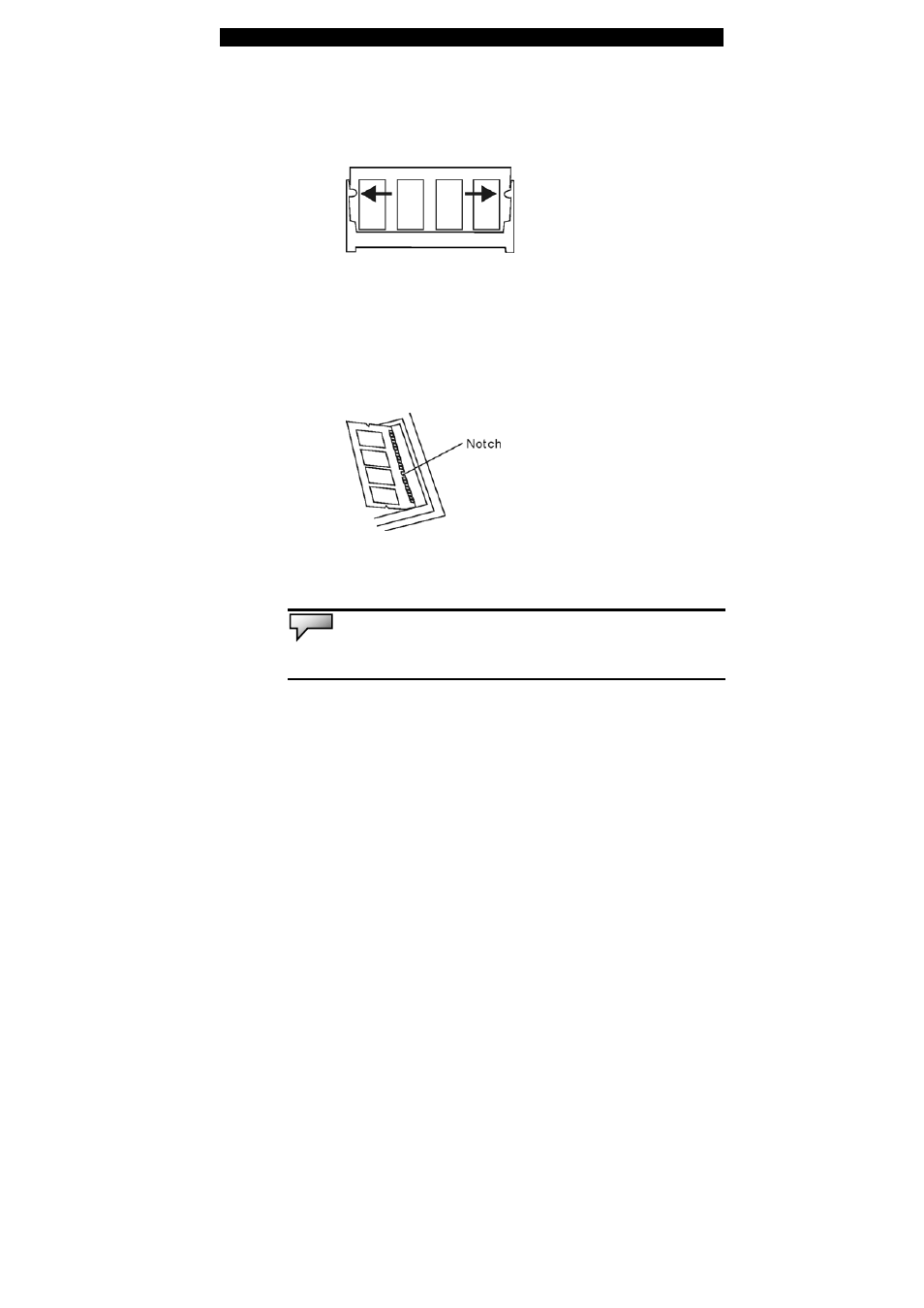

degree (see diagram below). Pull the DIMM module out of the

memory socket. Store away the DIMM for the future use.

Install the new DIMM module into the memory socket.

The DIMM will only fit in one orientation. Insert the DIMM at an

angle of approximately 30 degrees into the empty memory

socket. Then press it firmly so that the contact edge is driven

into the receiving socket.

Pivot the DIMM until the latches on both sides of the

socket snap into place.

Note:

Notice the notch on the DIMM. The notches should fit nicely with the

socket.

Put the keyboard back to its position. Make sure the

upper edge of the keyboard now resides under the

spring-loaded latches. Re-attached Screw D. Put the System

Device Cover back and tighten 6 Screw A’s.
