© CONDEC 2001 • All rights reserved • Printed in the United States of America • Specifications subject to change without notice
March 2001
65371
Page 2
Patent No.4.698.998
Seri
alNo.
M o d e l N o . O rio n
2 D
P re s s u re : 0 - 3 0 0
p s i
P ro o f
P re s s u re : 3 2 5
p s i

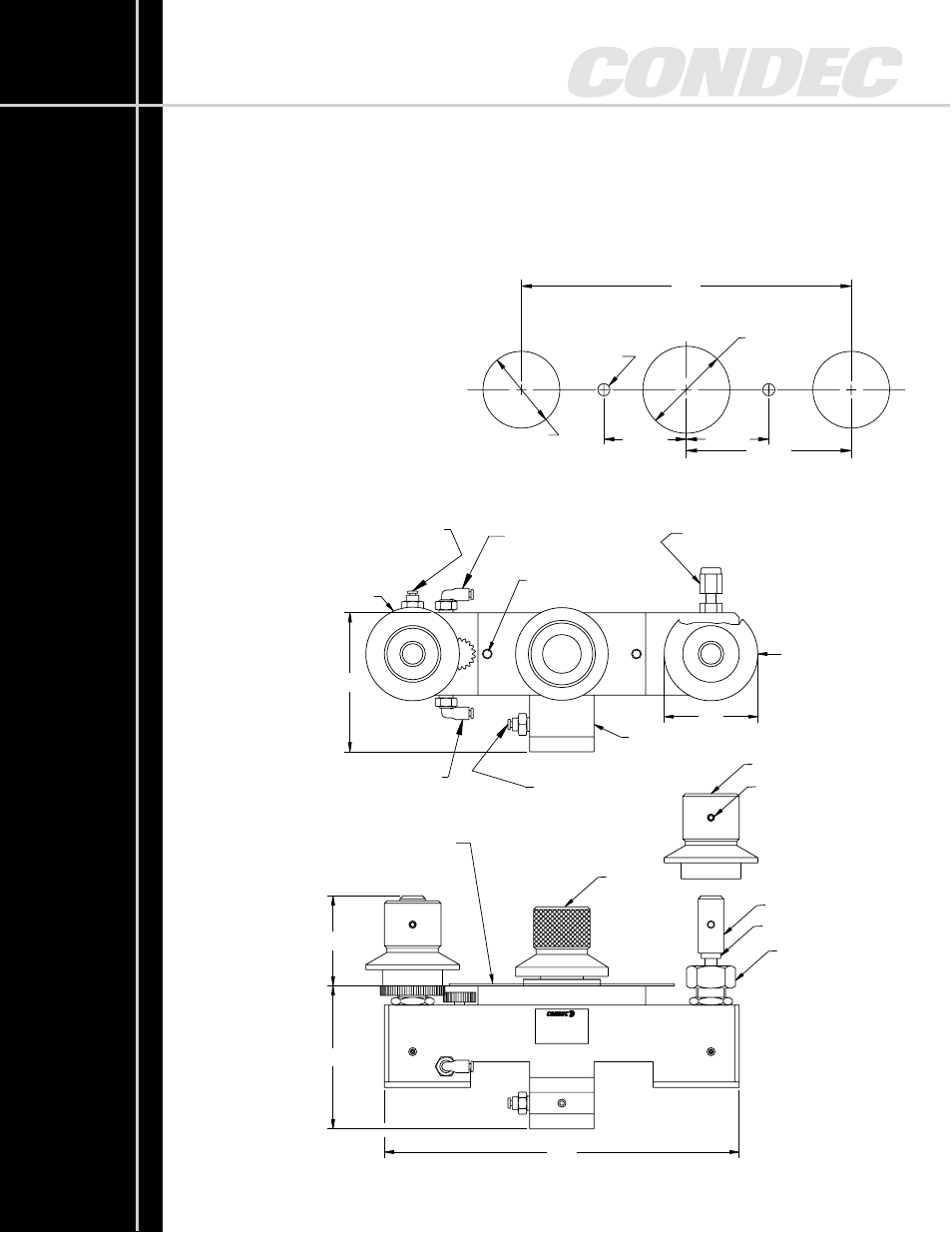

1.82
#10-32 UNF-2B
(2) PLACES
2.80
1.75
VENT VALVE
VENT PORT,
1/8-27 NPT THREAD,
MATING FITTING, PN 59738
INLET PORT,
1/8-27 NPT THREAD,
MATING FITTING, PN 57699
MODE SELECT,
1/8-27 NPT THREAD,
MATING FITTING, PN 41944
VACUUM CONVERTER,
1/8-27 NPT THREAD, MATING
FITTING, PN 41944
PRESSURE VALVE
RETAINER PLATE ASSY PN 56424
REMOVE AT TIME OF PANEL MOUNTING
6.90
2.70
VERNIER
TEST PORT#1,
1/8-27 NPT THREAD,
MATING FITTING, PN 41944
TEST PORT#2
MS33649-04 THREAD
KNOB
SETSCREW #6-32
KNOB INSERT
LOCK NUT
STOP WASHER
ORION-2D Pneumatic Pressure Controller
part #55286, Patent No. 4.698.998
INSTALLATION:
The Valve is factory adjusted.
Panel or bracket mounting:
1. Turn the two outside knobs clockwise.
2. Remove all (three) knobs.
3. Install controller into recommended
hole pattern with two
10-32 x 1/2" lg. screws.
4. Install knobs, align set
screws with both
dimples on knob inserts
and shaft.
5.80
1.53
1.450
2.900
1.450
1.350
(2) PLACES
Ø .213
(2) PLACES
RECOMMENDED HOLE PATTERN FOR ORION 2D
