MPV-10K Micro-Metering Precision Valve
Patent No. 4.698.998
INSTALLATION:
The fine micro-metering valve is factory adjusted.
Panel or bracket mounting:
1. Turn the knob counter clockwise, remove
knob and stop washer.
2. Loosen #4 set screw, remove locknut
and panel mounting nut.
3. Install controller into recommended
hole pattern with two 8-32 x 3/8" lg. screw.
4. Install panel mounting nut, locknut
(all the way to the end), stop washer
and knob. Two dimples on valve stem
must line up with the two set screws
in knob.
Adjusting the stop:
Apply pressure to the valve
and turn knob clockwise
until flow of pressure stops
(make sure there is no leak
on down stream side), then
back up locknut all the
way to the knob and
lock it with #4 set screws.

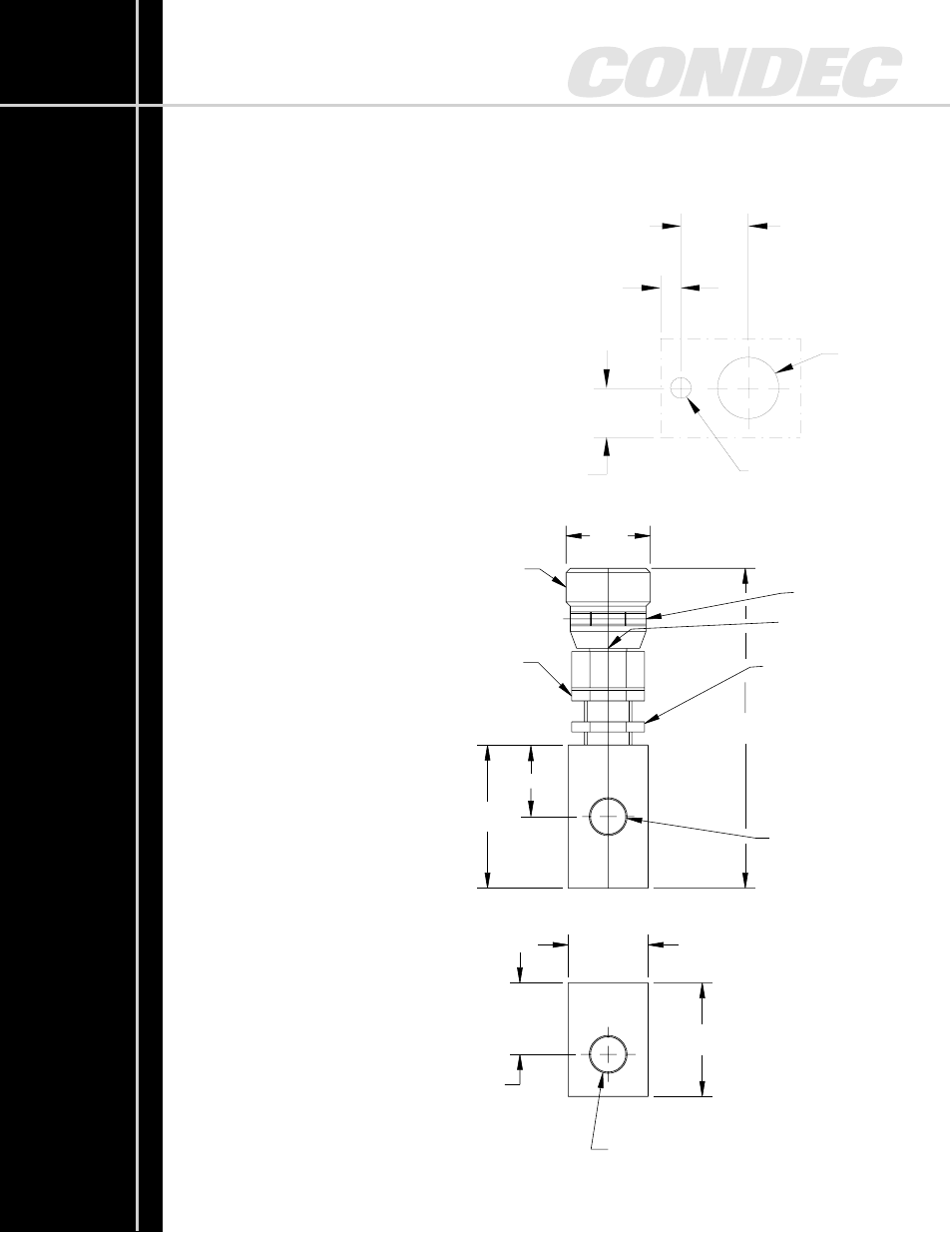

PANEL MOUNTING NUT
.850
1/8 -27 NPT
1.35
1.70
.95
.853
1/8-27 NPT
3.80
SETSCREW #6 (2)
1.00
STOP WASHER
LOCKNUT
KNOB
RECOMMENDED HOLE PATTERN
.48
. 20
.201 DIA
.650
.593 DIA
