ELECTRICAL INSTALLATION
We recommend that a licensed electrician be employed to do wiring to the pressure switch.
Permanently ground the motor in accordance to the electrical codes for your area.
Do not use an extension cord to connect your pump to the power source. From your
distribution panel to the pressure switch, we recommend a wire gauge not smaller than 14
gauge.
Pressure switch setting (start/stop 20/40 or 30/50) has been made in factory. An adjustment
may be done to give other operating pressures.
Adjustment or modification of start/stop setting of pressure switch have to be done carefully.
Turn adjustment nut half turn at a time.
Turn nut 1 clockwise to raise start and stop pressure setting. Never turn nut 2. This will
change the 20 PSI range between start and stop pressure and may damage your tank’s
bladder or modify the efficiency of your water system. Check system operation after each
adjustment.

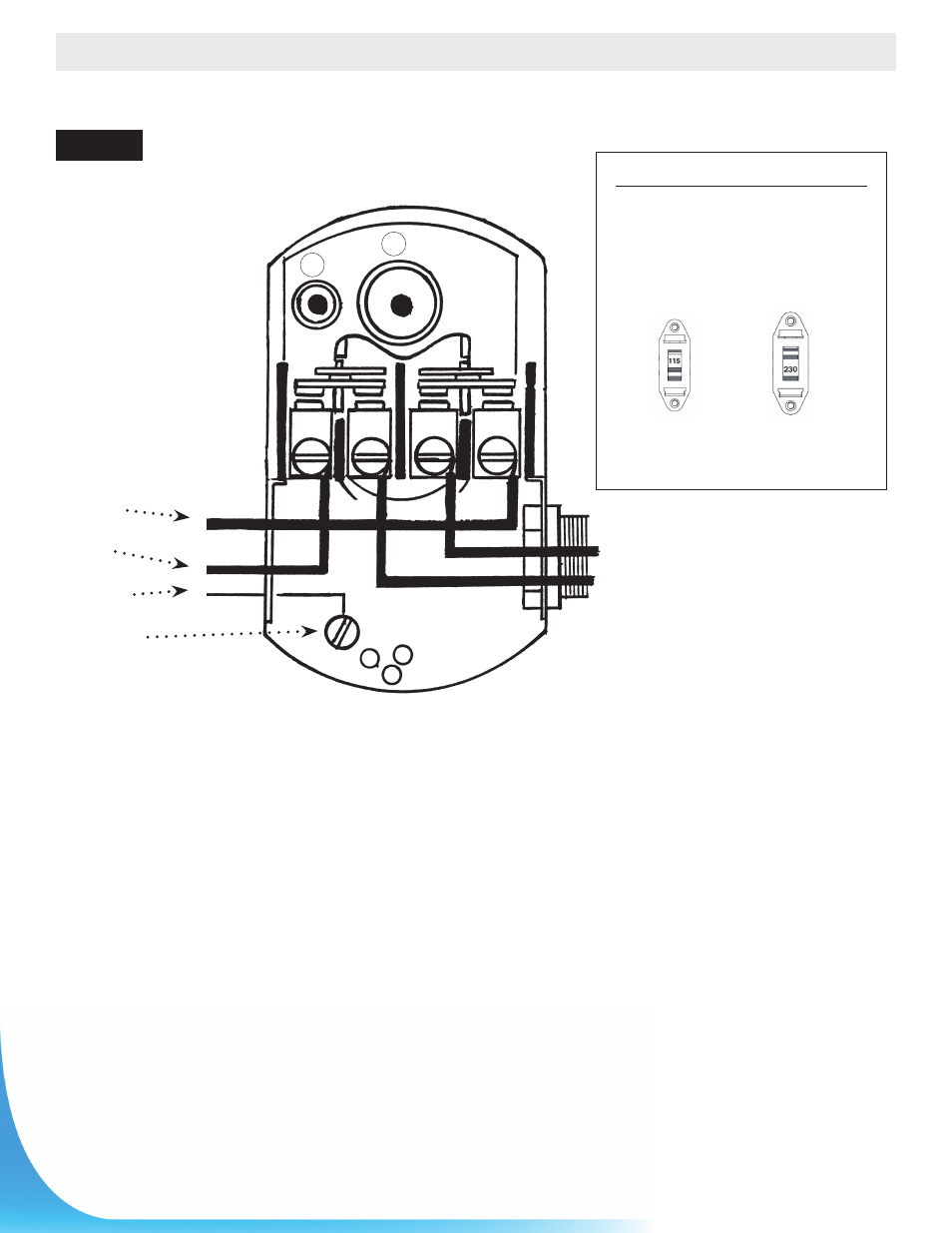

STEP 10
Electrical line
from home
distribution
panel.
BLACK
RED
GREEN
GROUND
TO MOTOR LEAD
VOLTAGE SELECTION SWITCH
1.POWER off
2. Please SELECT the up knob
position for 115 V or down knob
position for 230 V.
3. CONNECT to the appropriate
power source.
