Boltek RLO-10 Relay Interface For LD-250 User Manual
Page 2

©2012 BOLTEK CORP
RLO-10 LD-250 Install Instructions 20121002

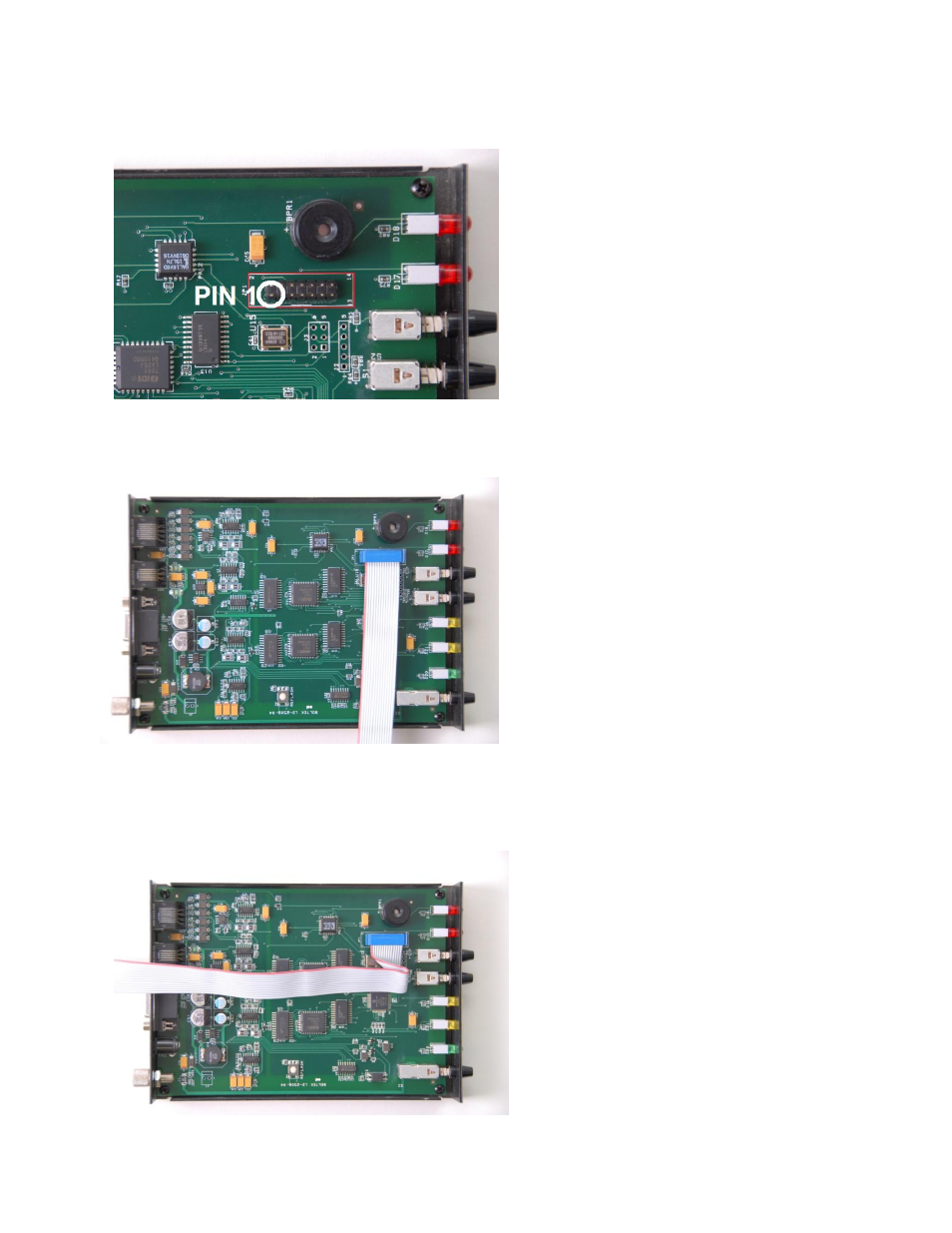

Locate pin 1 of the relay connector. Pin 1
is towards the rear of the LD-250. The
female ribbon cable connector and the LD-
250 have 14 holes/pins (2x7). It is
important that pin 1 is inserted into the
connector holes closest to the ribbon
cable's red stripe.
Plug the ribbon cable into the relay
connector as shown. The relay connector
pin 1 must plug into the ribbon cable
connector holes closest to the red stripe.
Fold the ribbon cable towards the rear of
the LD-250 as shown. Ensure that the red
stripe is as shown in the photo.
