Installation Instructions (77-2000 & 77-2001)

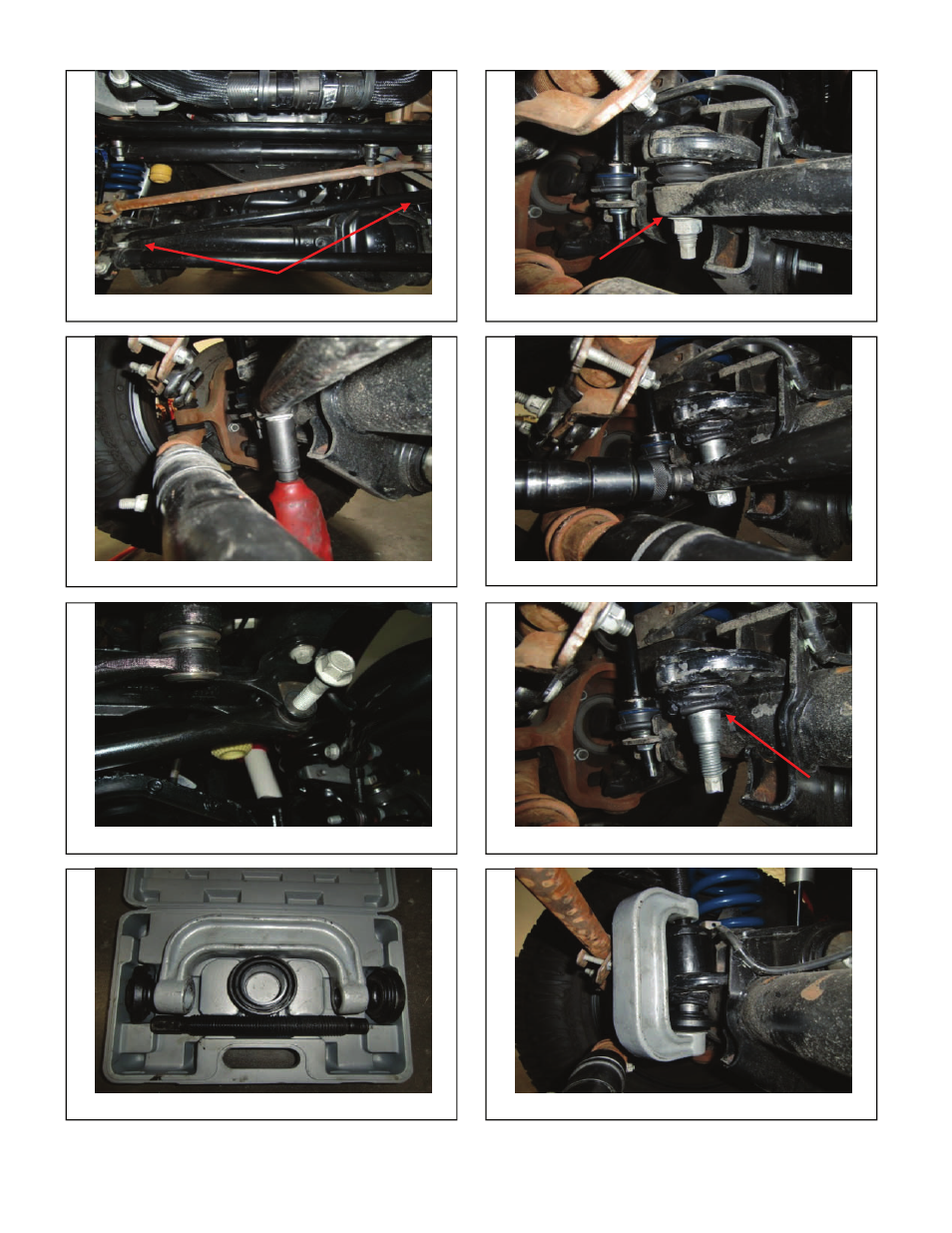

Front view of suspension, Track bar attaches to frame & axle
Shown, OE ball joint mount pass. Side axle mount.
Loosen ball joint nut and leave attached
Use ball joint fork/air hammer to seperate bar from ball joint
On opposite end disconnect hardware and remove bar
Shown, ball joint to be removed
Use proper heavy duty ball joint removal tool set.
Shown, tool set positioned to remove ball joint
