3 Operation
3.1 Operating Precautions
1. Before use, your amplifier must be configure for proper operation,
including input and output wiring hookup. Improper wiring can re-
sult in damage to equipment or potentially harm to the operator.
Consult section 2 for setup instructions.
2. Tampering with the circuitry, or making unauthorized changes is
not only dangerous but may also violate local regulations.
3. Use care when making connections between the amplifier and the
input or output equipment. Using equipment that is not capable of
handling the output wattage may lead to permanent damage.
NOTE: Stewart Audio will not be held responsible for
damage to your AV25-2-RS232 or connected equipment
if the instructions in this manual are not followed.

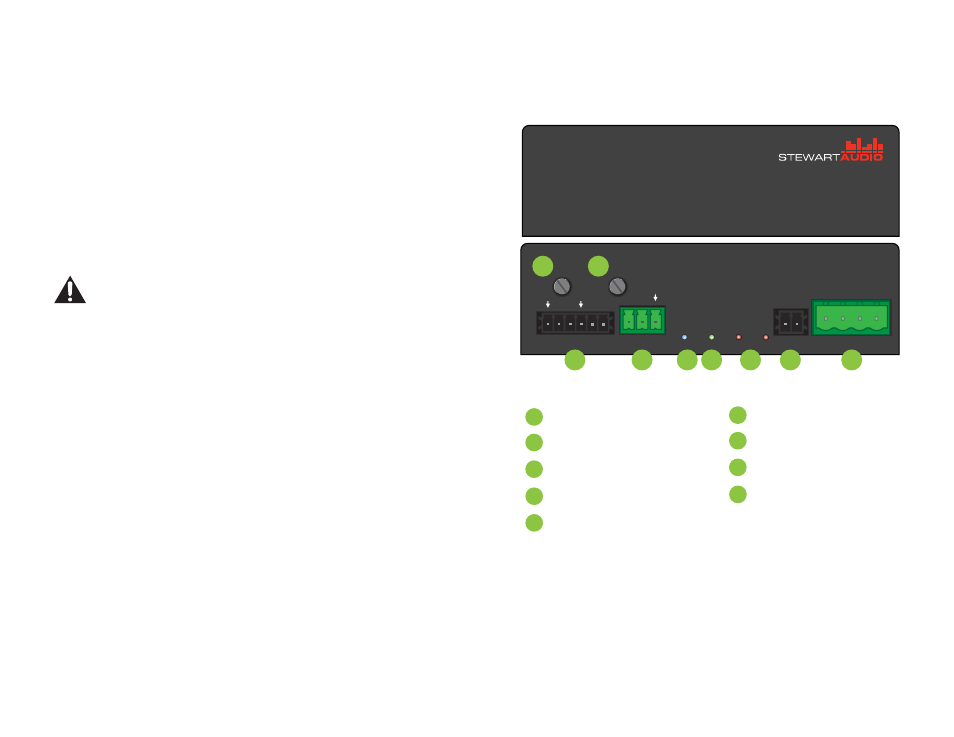

3.2 Controls, Indicators, and Connectors
PLENUM RATED
#2 INPUT #1 RS232 IN
#2 #1
LEVEL
ON SIG CLIP PWR #2 SPEAKER #1
#2 #1
- + - +
+ -
- + - +
TX RX
1 2 3 6 7 8
4 5
9
1
2
3 6
7
8
Speaker Output Connector
RS232 Connector
Power Connector
Power Indicator LED
Signal Present Indicator LED
Clip Indicator LEDs
4
5 9
Channel 2 Level Knob
Channel 1 Level Knob
Input Connector
AV25-2-RS232
