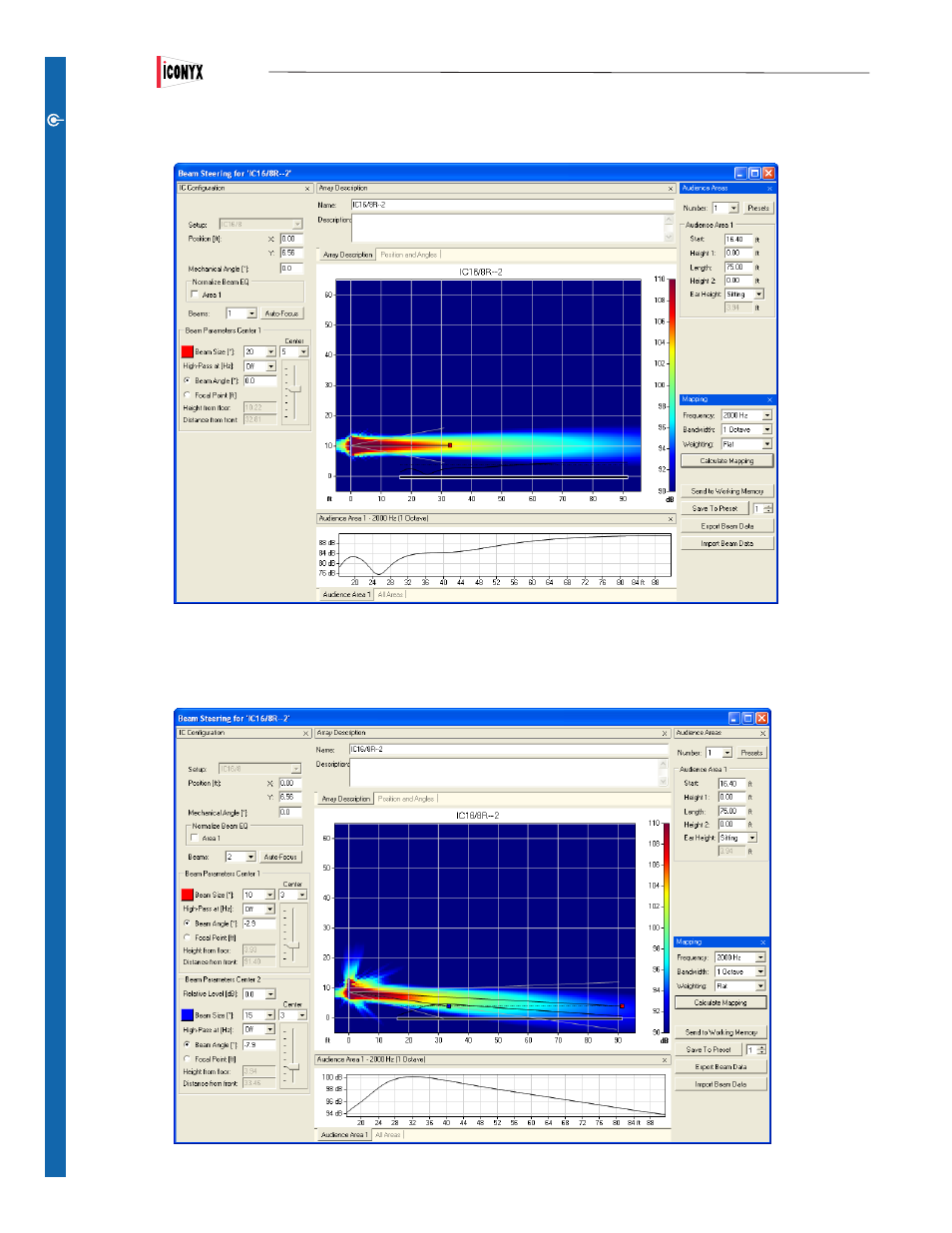

The next graphic shows a room with a 75 feet deep audience area with an IC16-R-II array. Note that the single beam is placed near the
bottom of the array and the opening angle at 20 degrees.
The next graphic is of the same room after Auto-Focus has been applied. Note that Auto-Focus has lowered the acoustic center and is
suggesting 2 beams, a narrow 10 degree beam and a 15 degree beam.
