CONTROLS & CONNECTIO NS
12
2 . 4 B A C K P A N E L B A S I C L A Y O U T
PIN 1 GND
PIN 2 High
(+)
PIN 3 Low
(-)

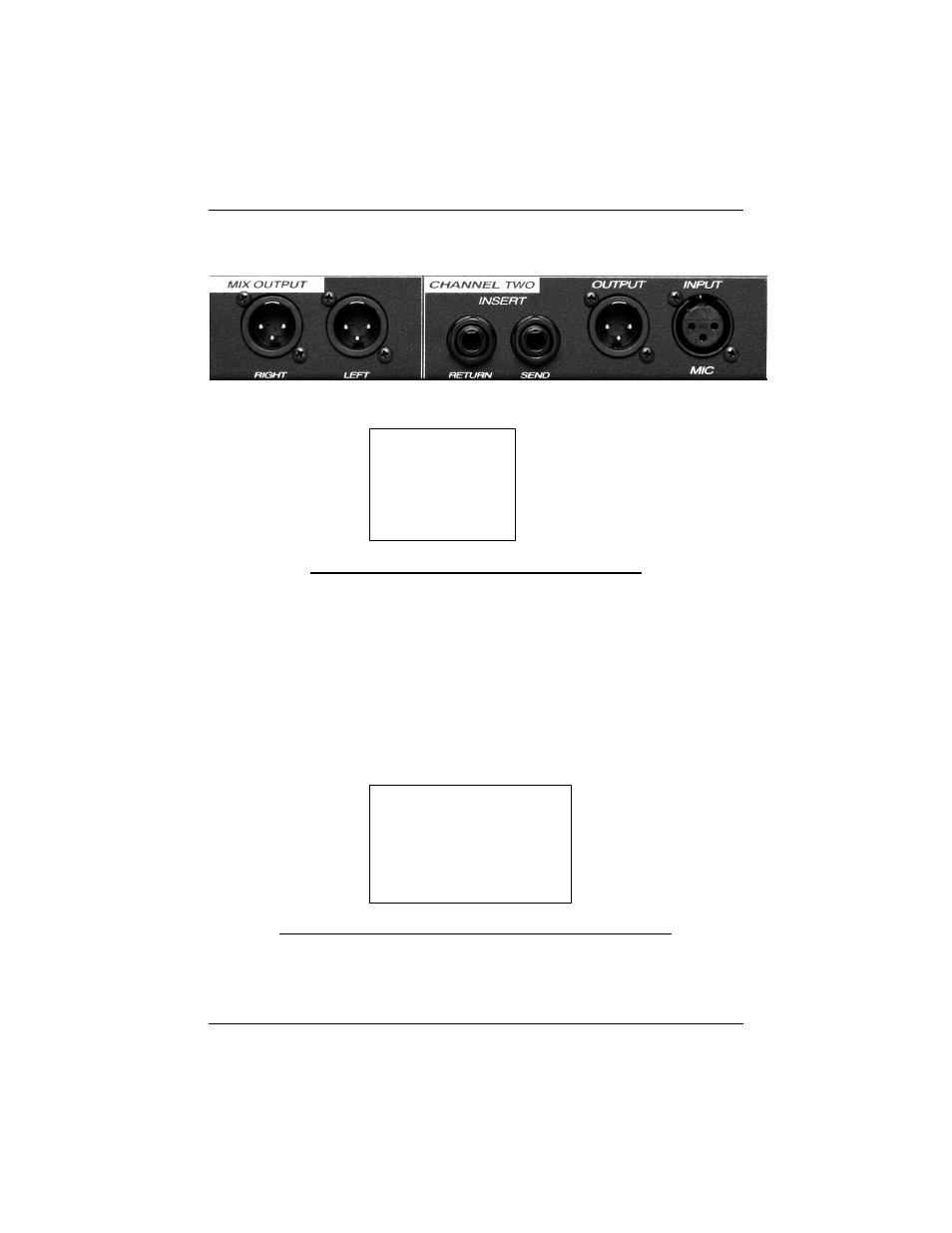

Cable Wiring Diagram for Input and Output XLR
The
Output XLR Connector
is servo balanced and operates at +4dBu.
The
Return / Line In
connector of the MP20 is provided for use in
conjunction with audio process devices such as compressor/limiters and as a
Line In for recording media such as tape machines, hard disc recorders, or
DAT’s. When a device is connected to this jack, the Neutrik
?
Combo jack is
disconnected.
TIP
High
(+)
RING
Low
(-)
SLEEVE
GND
Cable Wiring Diagram for Balanced Send / Return Jacks
The
Send Jack
on the back panel of the MP20 routes the signal being
processed by the channel to outboard devices or to recording media.
