Page 5
RECYCLING REFRIGERANT

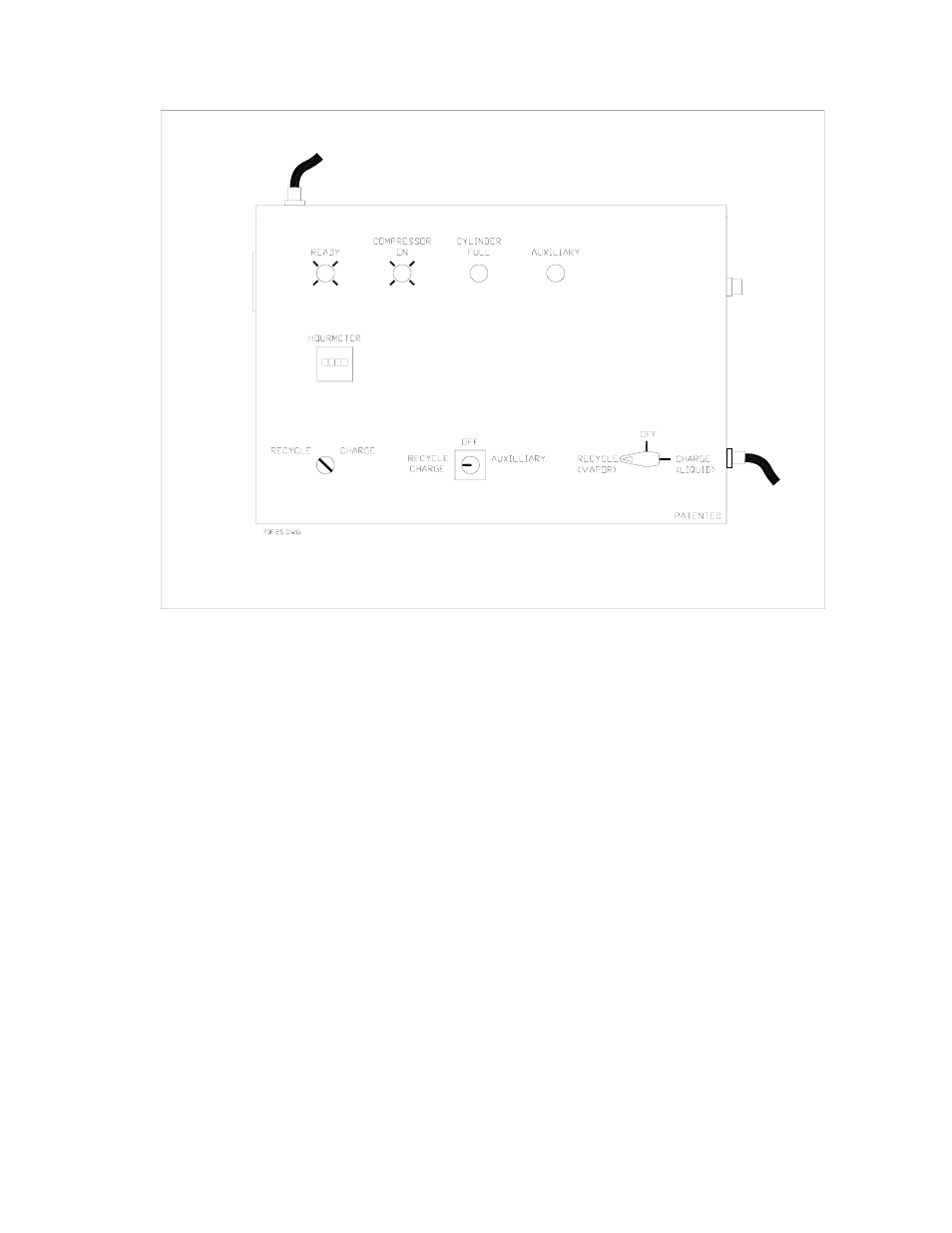

1. Set Mode Selector to RECYCLE.
2. Set Main Switch to RECYCLE/CHARGE. The READY Light will be on.
3. Set Access Valve to RECYCLE. The COMPRESSOR-ON light will be on and the 750-SP1 will
begin recovering refrigerant from the Inlet Cylinder. The 750-SP1 is specially designed to
process Liquid or Vapor refrigerant.
Refrigerant will be purified by the 750-SP1 and collected in the Internal Cylinder.
When the Internal Cylinder fills to capacity, the 750-SPl will automatically stop recovering from
the Inlet Cylinder. The CYLINDER FULL Light will be on and the COMPRESSOR-ON Light
will be off.
A timer will activate and the 750-SP1 will automatically charge refrigerant from the Internal
Cylinder to the Outlet Cylinder.
At the end of the timed charge the 750-SP1 will begin recovering refrigerant.
