MAHLE RTI RRC770A - Manual (Page 21)

Page 18
S14
CR1CR2
HPS
S13
S10
S12
S22
LPS
2
3
4
5
7
10
11
12
13
14
15
1
16
17
6
9
8
S8
CR3
M2
Docu
men
t: 560-80402-00

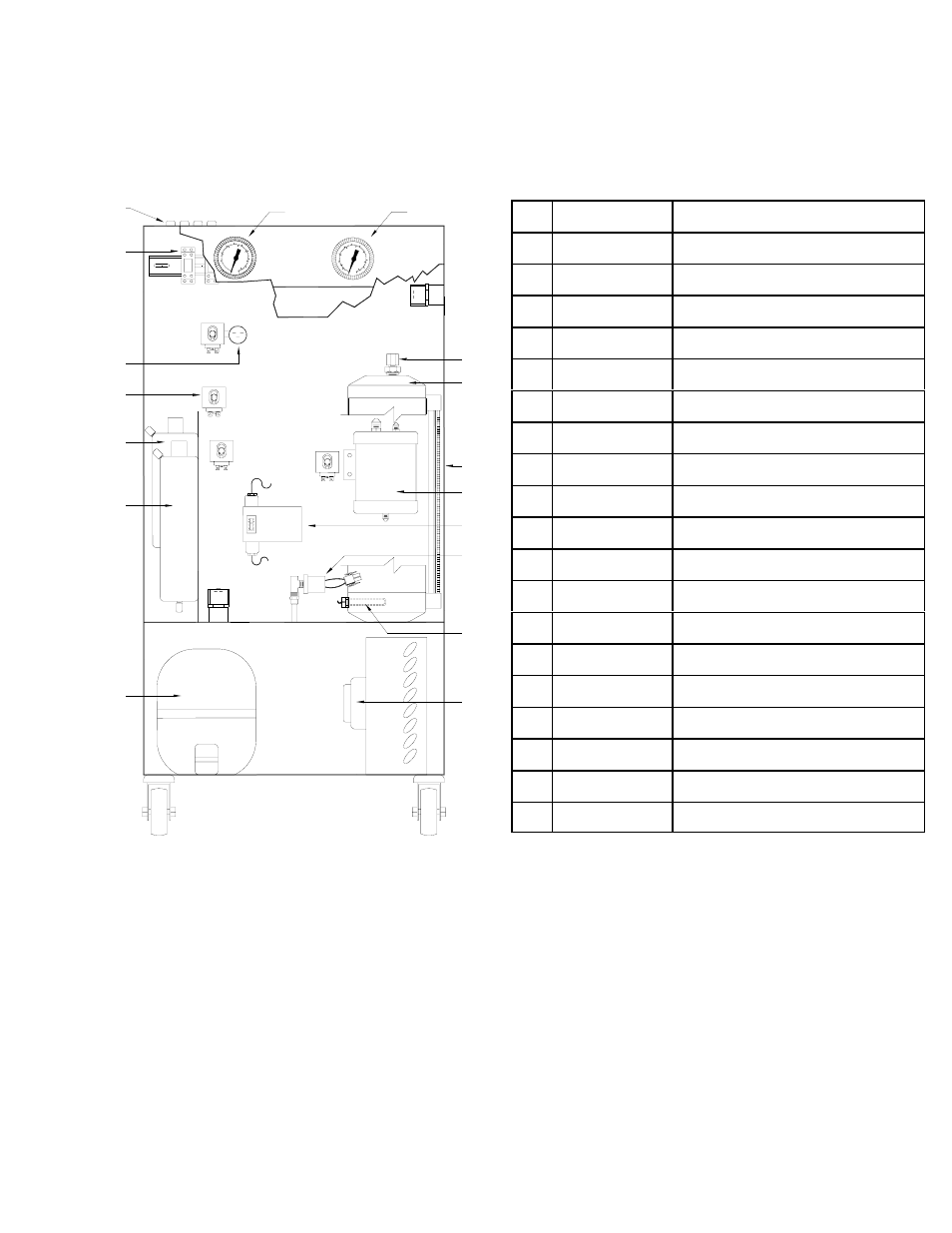

Parts List
Machine Catalog Number: 460-80282-00
P/N DESCRIPTION
1 360-80260-00 Gauge Assy 0-120 PSIG
2 022-80005-00 Relief Valve
3 360-82037-00 Charging Cylinder Assy
4 360-80748-01 Kit Sight Glass
5 026-80070-00 Accumulator Assembly
6 360-80369-02 D/P Switch Assembly
7 360-81307-00 High Pressure Switch - 261 PSIG
8 360-81048-01 Charging Cylinder Heater
9 360-80389-00 Fan Assy with Terms 220V
10 360-81700-01 Compressor Assy
11 026-80077-00 Combo Filter (Long)
12 026-80069-00 Combo Filter (Short)
13 025-80305-00 Solenoid (220V)
14 360-81314-00 Low Pressure Switch
15 024-80037-01 Contact Relay
16 025-80127-01 Indicator Light (220V)
17 360-80076-00 Gauge Assembly 0-500 PSIG
011-80004-00 Vacuum Pump Oil - Quart
360-80359-00 Hose Gasket/Depressor Kit
